22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 312000001 - 312999999) (2012) HOOD AND SCREEN ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

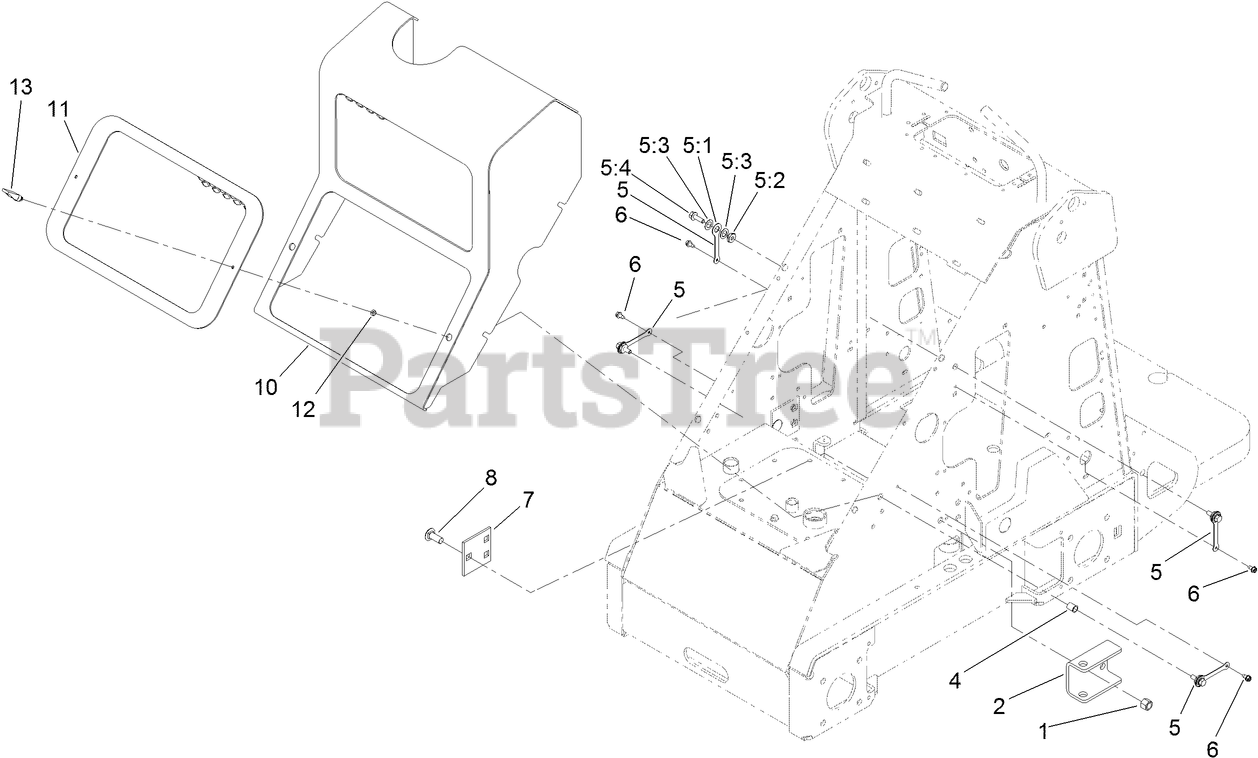

HOOD AND SCREEN ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 100-4122-01

BRACKET-ANCHOR

$223.99

$

Usually ships in 3-6 days

0

4

Toro 32148-8

INSERT-THREADED

$3.49

$

Usually ships in 3-6 days

0

5

Toro 117-1762

LANYARD ASM

$40.99

$

Usually ships in 3-6 days

0

5:1

Toro 117-8339

LANYARD-3 INCH

$5.49

$

Usually ships in 3-6 days

0

5:2

Toro 117-1764

NUT-SHOULDER

$20.99

$

Usually ships in 3-6 days

0

5:3

Toro 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

5:4

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

6

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

7

Toro 100-4116-01

PLATE-ANCHOR

$148.99

$

Usually ships in 3-6 days

0

8

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

10

Toro 99-3120-03

HOOD

$1067.99

$

Usually ships in 3-6 days

0

11

Toro 99-3118-03

COVER

$279.99

$

Usually ships in 3-6 days

0

12

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

13

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0
