22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 312000001 - 312999999) (2012) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

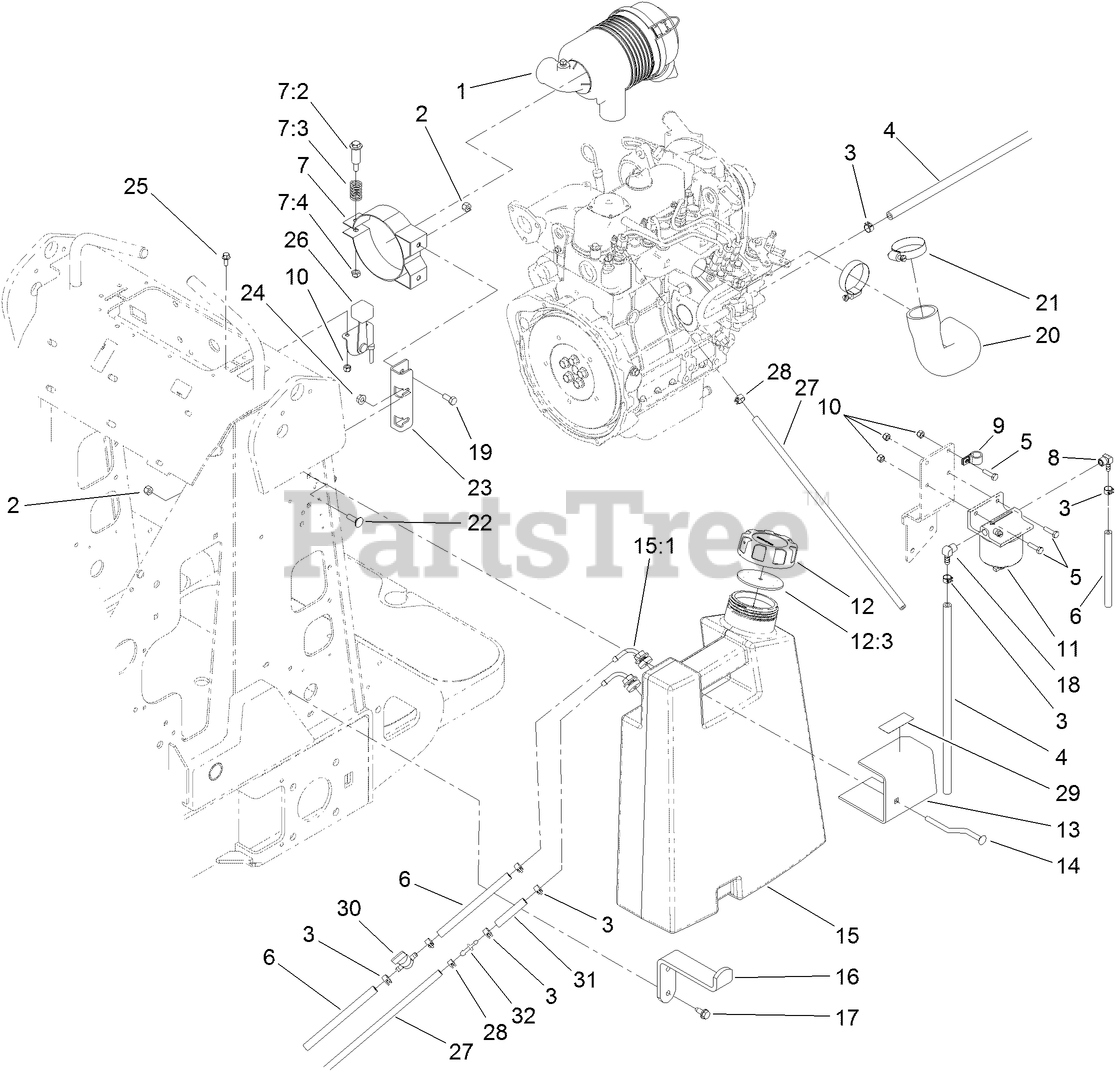

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-9989

AIR CLEANER ASM

$202.99

$

Usually ships in 3-6 days

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

4

Toro 110-4113

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107-0588

HOSE-FUEL

$5.99

$

In Stock, only 4 left!

0

7

Toro 93-2191

AIR CLEANER MOUNTING BAND ASM

$67.99

$

Usually ships in 3-6 days

0

7:2

Toro 94-3653

BOLT

$24.99

$

Usually ships in 3-6 days

0

7:3

Toro 94-3654

SPRING

$14.99

$

Usually ships in 3-6 days

0

7:4

Toro 48-9510

NUT
(Superseded to 33024-00)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 304-96

ELBOW

$42.99

$

Usually ships in 3-6 days

0

9

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

11

Toro 63-7650

SEPARATOR-FILTER / WATER

$186.99

$

Usually ships in 3-6 days

0

12

Toro 104-7419

CAP-FUEL, DIESEL

$43.99

$

Usually ships in 3-6 days

0

12:3

Toro 104-7420

GASKET-VENTED

$34.99

$

Usually ships in 3-6 days

0

13

Toro 99-1444-03

PLATE-MOUNT, LEFT

$77.99

$

In Stock, only 1 left!

0

14

Toro 98-4657

BOLT-MOUNT

$41.99

$

Usually ships in 3-6 days

0

15

Toro 105-8438

LH FUEL TANK ASM

$604.99

$

Usually ships in 3-6 days

0

15:1

Toro 103-2615

Fitting-Fuel, Bulkhead

$41.99

$

In Stock, only 1 left!

0

16

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$36.99

$

Usually ships in 3-6 days

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

18

Toro 353-781

FITTING-ELBOW

$29.99

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

20

Toro 99-5041

HOSE-CLEANER, AIR

$113.99

$

Usually ships in 3-6 days

0

21

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

23

Toro 99-3080-03

MOUNT-CLEANER, AIR

$83.99

$

Usually ships in 3-6 days

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

26

Toro 99-1422

CONTROL-THROTTLE

$155.99

$

Usually ships in 3-6 days

0

27

Toro 110-8751

HOSE-FUEL

$9.99

$

Usually ships in 3-6 days

0

28

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

29

Toro 114-9600

DECAL-LOW SULFUR

$15.99

$

In Stock, only 3 left!

0

30

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

31

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

32

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0
