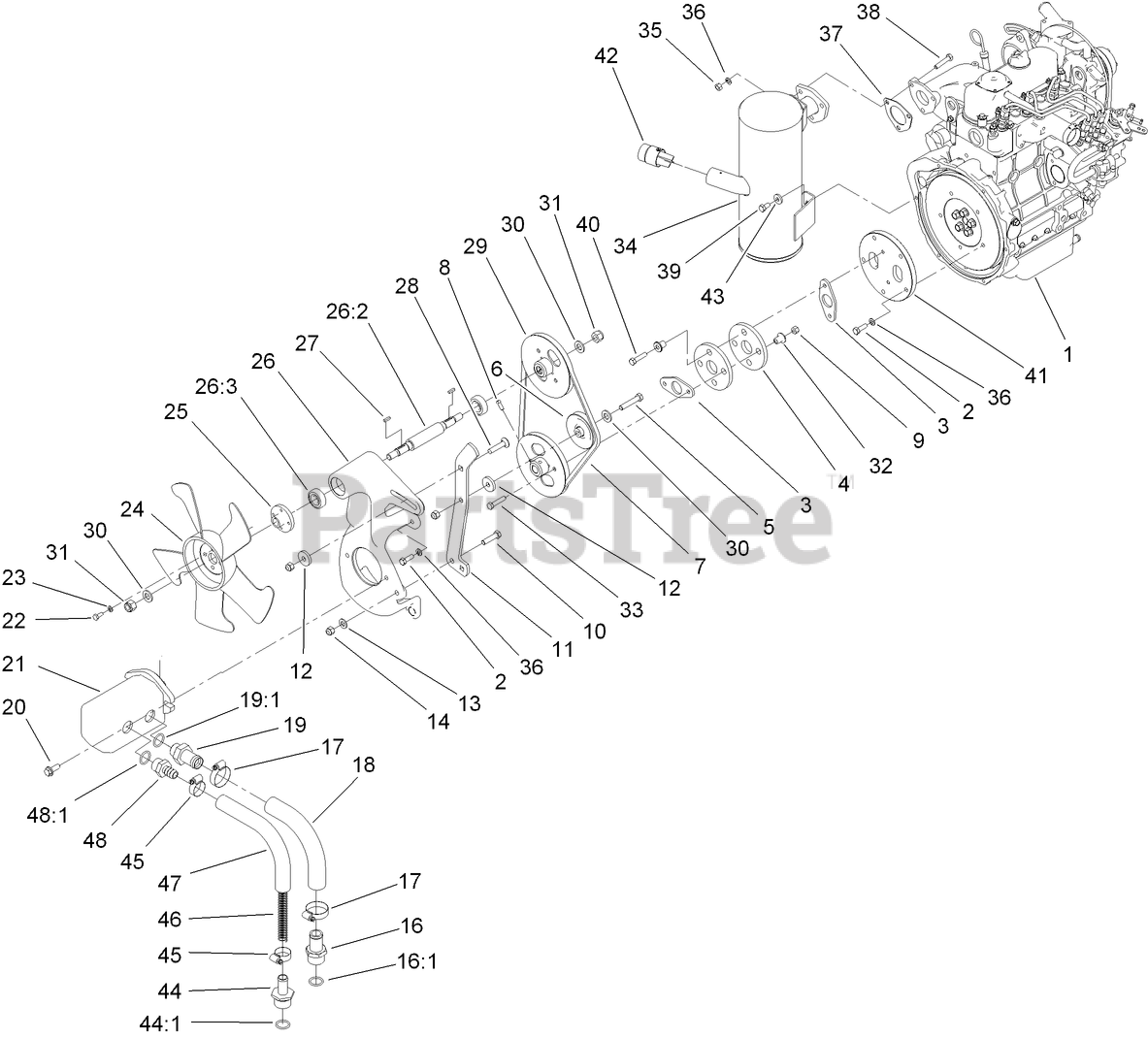

22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 311000001 - 311999999) (2011) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-4007

ENGINE ASM
(Superseded to 138-6901)

$10927.99

$

Usually ships in 3-6 days

0

2

Toro 99-5131

BOLT

$6.99

$

Usually ships in 3-6 days

0

3

Toro 99-1430

SPACER-COUPLER

$32.99

$

Usually ships in 3-6 days

0

4

Toro 115-4523

COUPLING-RUBBER

$56.99

$

In Stock, Qty 20+

0

5

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 63-8140

PULLEY-IDLER

$51.99

$

In Stock, only 4 left!

0

7

Toro 92-8876

V-BELT

$35.99

$

In Stock, only 2 left!

0

8

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

9

Toro 104-9469

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 106-7649-03

ARM-TENSIONER

$48.99

$

Usually ships in 3-6 days

0

12

Toro 99-5121

SPACER

$20.99

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 354-78

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

17

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

18

Toro 99-3046

HOSE-SUCTION, FORMED

$231.99

$

Usually ships in 3-6 days

0

19

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

19:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

20

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

21

Toro 108-4710

HYD PUMP ASM

$2257.99

$

Usually ships in 3-6 days

0

22

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

23

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 43-1911

FAN

$184.99

$

In Stock, only 1 left!

0

25

Toro 106-8153

ADAPTER-FAN

$175.99

$

Usually ships in 3-6 days

0

26

Toro 106-8163

PUMP MOUNT ASM

$614.99

$

Usually ships in 3-6 days

0

26:2

Toro 98-0068

SHAFT-FAN

$177.99

$

Usually ships in 3-6 days

0

26:3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

27

Toro 100-1715

KEY-SQUARE

$13.99

$

Usually ships in 3-6 days

0

28

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 99-5111

PULLEY-KEYED

$241.99

$

In Stock, only 3 left!

0

30

Toro 33096-00

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

31

Toro 98-8089

NUT-LOCK

$2.49

$

In Stock, only 1 left!

0

32

Toro 71-4411

SPACER

$2.99

$

In Stock, only 3 left!

0

33

Toro 5-1470

SCREW-HH

$0.99

$

In Stock, Qty 10

0

34

Toro 105-8390

MUFFLER
(Superseded to 117-1828)

$593.99

$

Usually ships in 3-6 days

0

35

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 100-2238

GASKET-MUFFLER

$19.99

$

Usually ships in 3-6 days

0

38

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

40

Toro 99-5133

BOLT

$11.99

$

Usually ships in 3-6 days

0

41

Toro 99-1431

ADAPTER-FLYWHEEL

$718.99

$

Usually ships in 3-6 days

0

42

Toro 75-6880

SCREEN-ARRESTER, SPARK

$117.99

$

Usually ships in 3-6 days

0

43

Toro 88-7200

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

44

Toro 99-6932

FITTING-HOSE, BARBED

$192.99

$

Usually ships in 3-6 days

0

44:1

Toro 237-117

O-RING

$8.99

$

Usually ships in 3-6 days

0

45

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

46

Toro 99-5349

Spring-Compression

$10.99

$

Usually ships in 3-6 days

0

47

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

0

48

Toro 354-73

FITTING-STRAIGHT

$41.99

$

Usually ships in 3-6 days

0

48:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0
