22336 (320-D) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270999999) (2007) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

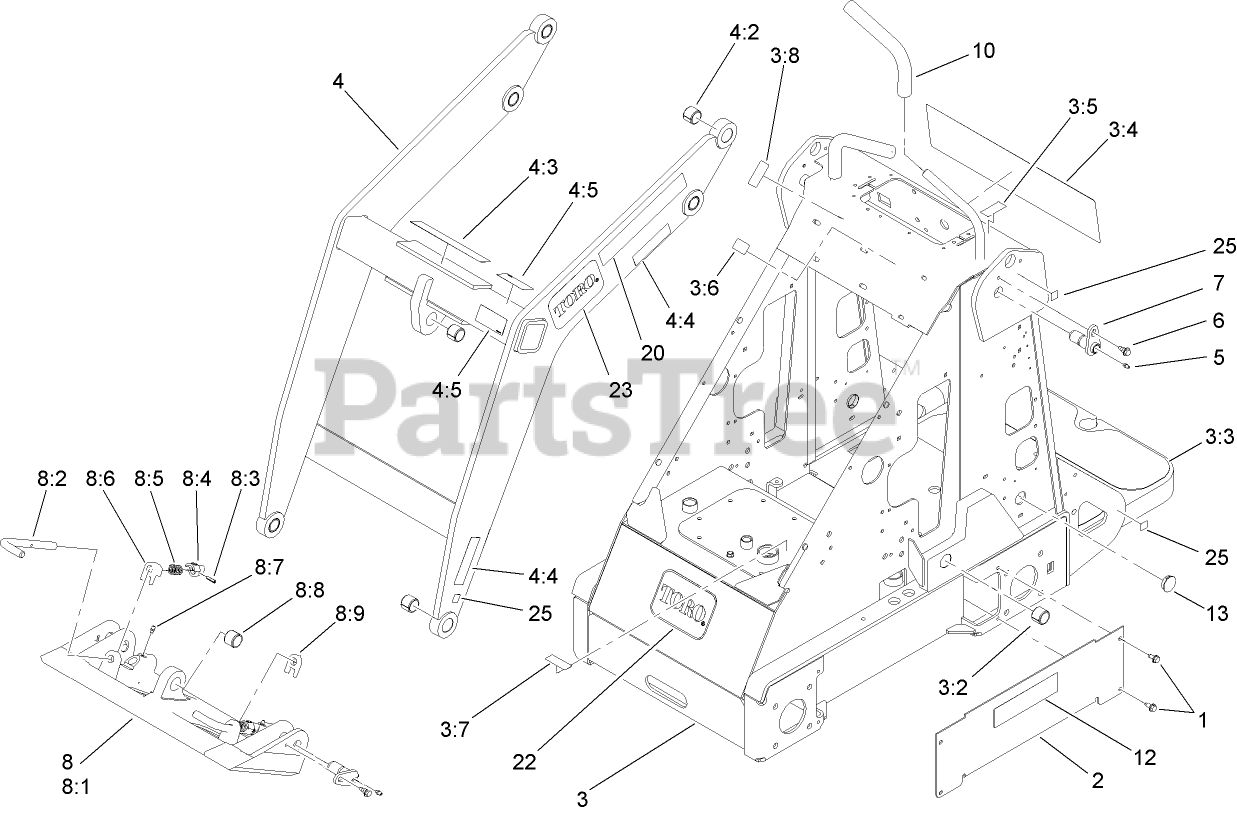

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 106-8178-01

COVER-HOSE

$92.99

$

Usually ships in 3-6 days

0

3

Toro 114-1753

FRAME ASM

$11774.99

$

Usually ships in 3-6 days

0

3:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

3:3

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

3:4

Toro 108-9733

DECAL-CONTROL PANEL, CE

$161.99

$

Usually ships in 3-6 days

0

3:5

Toro 98-8219

DECAL-THROTTLE

$18.99

$

In Stock, only 1 left!

0

3:6

Toro 100-1703

DECAL-LIMITER, SPEED

$31.99

$

Usually ships in 3-6 days

0

3:7

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

3:8

Toro 98-8235

DECAL-SELECTOR

$18.99

$

Usually ships in 3-6 days

0

4

Toro 114-1754

LOADER ASM

$2916.99

$

Usually ships in 3-6 days

0

4:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

4:3

Toro 100-1702

DECAL-CAUTION

$26.99

$

Usually ships in 3-6 days

0

4:4

Toro 100-8821

DECAL-WARNING, PINCH

$10.99

$

In Stock, only 4 left!

0

4:5

Toro 100-8822

DECAL-NO RIDER

$41.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

7

Toro 112-2609

PIN-PIVOT

$108.99

$

In Stock, only 2 left!

0

8

Toro 105-8364

QUICK ATTACH ASM
(Superseded to 132-8418)

$1443.99

$

Usually ships in 3-6 days

0

8:1

Toro 105-0245-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1267.99

$

Usually ships in 3-6 days

0

8:2

Toro 105-8367

PIN-LOCKING
(Superseded to 132-8419)

$33.99

$

In Stock, only 3 left!

0

8:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, Qty 7

0

8:4

Toro 105-0246

CAM

$72.99

$

In Stock, only 1 left!

0

8:5

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 1 left!

0

8:6

Toro 104-5909

STOP-RH

$58.99

$

In Stock, only 1 left!

0

8:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8:8

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

8:9

Toro 104-5903

STOP-LH

$58.99

$

Usually ships in 3-6 days

0

10

Toro 98-4845

GRIP-CUSHION

$16.99

$

Usually ships in 3-6 days

0

12

Toro 105-8429

Decal

$20.99

$

Usually ships in 3-6 days

0

13

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

20

Toro 105-8428

DECAL
(Superseded to 117-1816)

$29.99

$

Usually ships in 3-6 days

0

22

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

23

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

25

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0
