22334 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 270000401 - 270999999) (2007) CONTROL PANEL ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

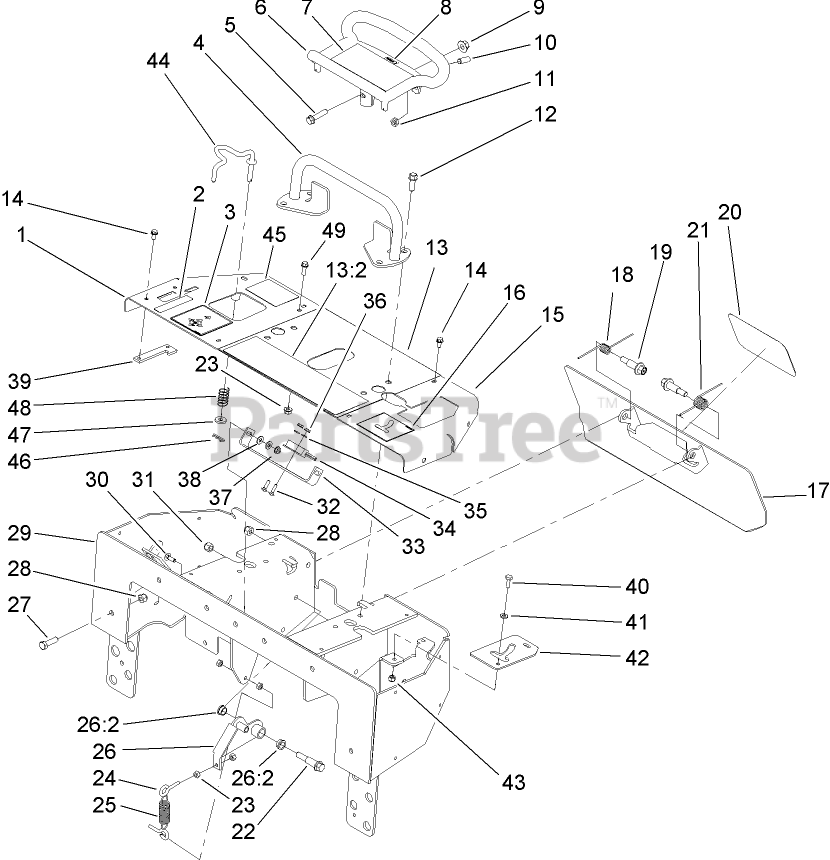

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1258-01

RH PANEL ASM

$

$

Not available

2

Toro 104-9958

DECAL-BRAKE

$26.99

$

Usually ships in 3-6 days

0

3

Toro 104-9953

DECAL-LOADER

$

$

Not available

4

Toro 106-7715

BAR-REFERENCE

$201.99

$

Usually ships in 3-6 days

0

5

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

6

Toro 106-7614-03

HANDLE-CONTROL
(Superseded to 120-5380-03)

$261.99

$

In Stock, only 1 left!

0

7

Toro 108-4634

DECAL-TRACTION

$

$

Not available

8

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

10

Toro 3247-6

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

12

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 108-4643

CENTER PANEL ASM

$253.99

$

Usually ships in 3-6 days

0

13:2

Toro 104-9957

DECAL-DANGER

$

$

Not available

14

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

15

Toro 112-2737-01

PANEL-LH

$61.99

$

Usually ships in 3-6 days

0

16

Toro 108-4636

DECAL-POWER, AUXILIARY

$

$

Not available

17

Toro 98-8417-03

REVERSE PLATE ASM

$

$

Not available

18

Toro 98-8425

SPRING-TORSION, LH

$29.99

$

Usually ships in 3-6 days

0

19

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

20

Toro 105-1217

DECAL

$39.99

$

In Stock, Qty 8

0

21

Toro 98-8424

SPRING-TORSION, RH

$29.99

$

Usually ships in 3-6 days

0

22

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

23

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

24

Toro 71-2870

BOLT-EYE

$19.99

$

Usually ships in 3-6 days

0

25

Toro 108-4724

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

26

Toro 100-4203

NEUTRAL CENTERING LEVER ASM

$207.99

$

Usually ships in 3-6 days

0

26:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 110-0228-01

PANEL-CONTROL

$1008.99

$

Usually ships in 3-6 days

0

30

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

31

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

32

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

33

Toro 100-1263

PLATE-SWITCH

$38.99

$

Usually ships in 3-6 days

0

34

Toro 100-1270

SWITCH-PROXIMITY

$112.99

$

Usually ships in 3-6 days

0

35

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

36

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

37

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 112-2691-01

PLATE-LOCKING, BRAKE
(Superseded to 112-2691)

$9.49

$

Usually ships in 3-6 days

0

40

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 112-2749-01

PLATE-STOP

$21.99

$

Usually ships in 3-6 days

0

43

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

44

Toro 104-2833

ROD-INTERLOCK
(Superseded to 115-4580)

$18.99

$

Usually ships in 3-6 days

0

45

Toro 104-9977

DECAL-INTERLOCK

$

$

Not available

46

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

47

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

48

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

49

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0
