22333 (TX 525) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270000400) (2007) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

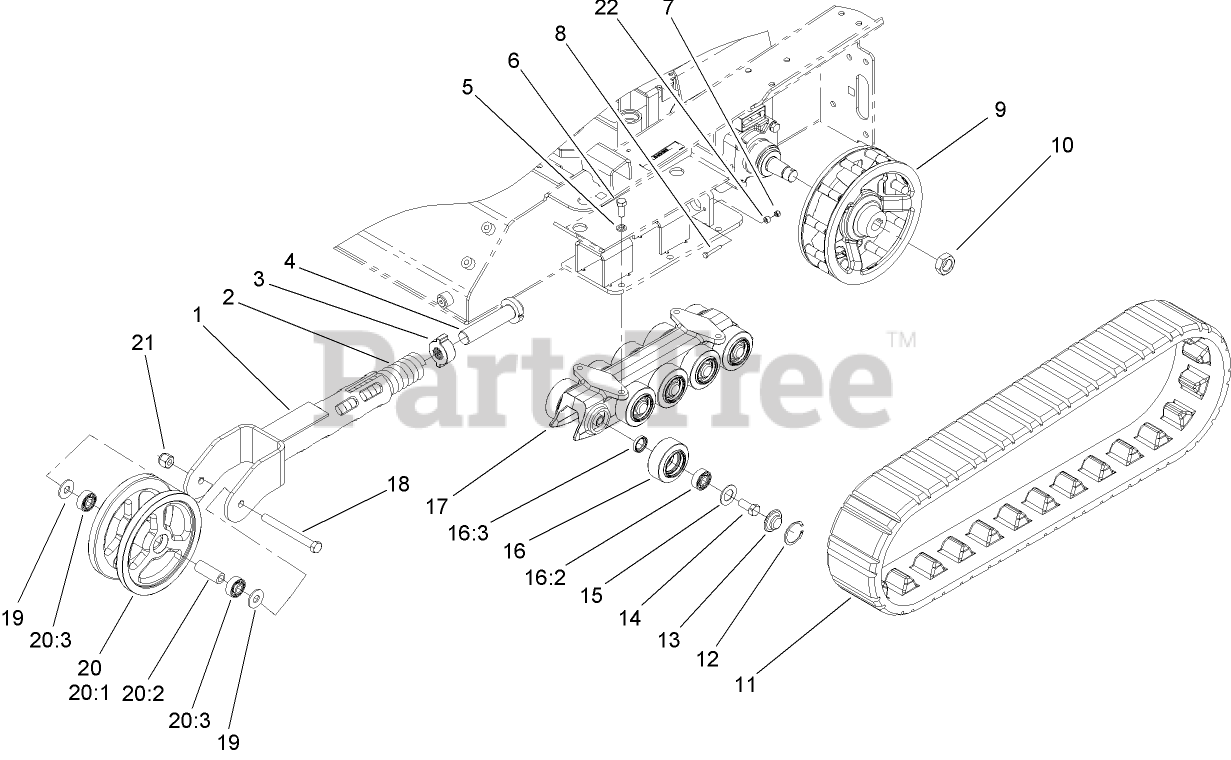

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 108-4691-03

ARM-TENSIONER

$

$

Not available

2

Toro 95-3624

SPRING-COMPRESSION

$186.99

$

In Stock, only 1 left!

0

3

Toro 108-4664

BLOCK-TENSIONER

$133.99

$

In Stock, only 2 left!

0

4

Toro 98-9846

BOLT-TENSIONER

$442.99

$

Usually ships in 3-6 days

0

5

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

6

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

7

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

8

Toro 321-37

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

9

Toro 108-5643-03

WHEEL-DRIVE

$1172.99

$

Usually ships in 3-6 days

0

10

Toro 107-9319

NUT-HEX

$44.99

$

Usually ships in 3-6 days

0

11

Toro 98-9800

TRACK
(Superseded to 136-5847)

$1088.99

$

In Stock, only 1 left!

0

12

Toro 106-7595

RING-SNAP, INTERNAL

$5.49

$

In Stock, Qty 7

0

13

Toro 106-7557

CAP-WHEEL, BEARING

$5.49

$

In Stock, Qty 12

0

14

Toro 327-4

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

15

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 20+

0

16

Toro 106-7621

Road Wheel ASM
(Superseded to 138-0782)

$95.99

$

In Stock, only 2 left!

0

16:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, only 2 left!

0

16:3

Toro 253-118

SEAL-OIL

$19.99

$

In Stock, Qty 20+

0

17

Toro 106-7590-03

GUIDE-TRACK
(Superseded to 117-1310-0P)

$748.99

$

Usually ships in 3-6 days

0

18

Toro 327-17

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

19

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 104-5745

TENSIONER WHEEL ASM

$727.99

$

Usually ships in 3-6 days

0

20:1

Toro 104-5747-03

WHEEL-TENSIONER

$619.99

$

Usually ships in 3-6 days

0

20:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$17.99

$

Usually ships in 3-6 days

0

20:3

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, only 2 left!

0

21

Toro 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

22

Toro 98-4799

SPACER

$7.99

$

In Stock, only 2 left!

0
