22333 (TX 525) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270000400) (2007) STARTER COMPONENTS Parts Diagram

Dingo Compact Utility Loader

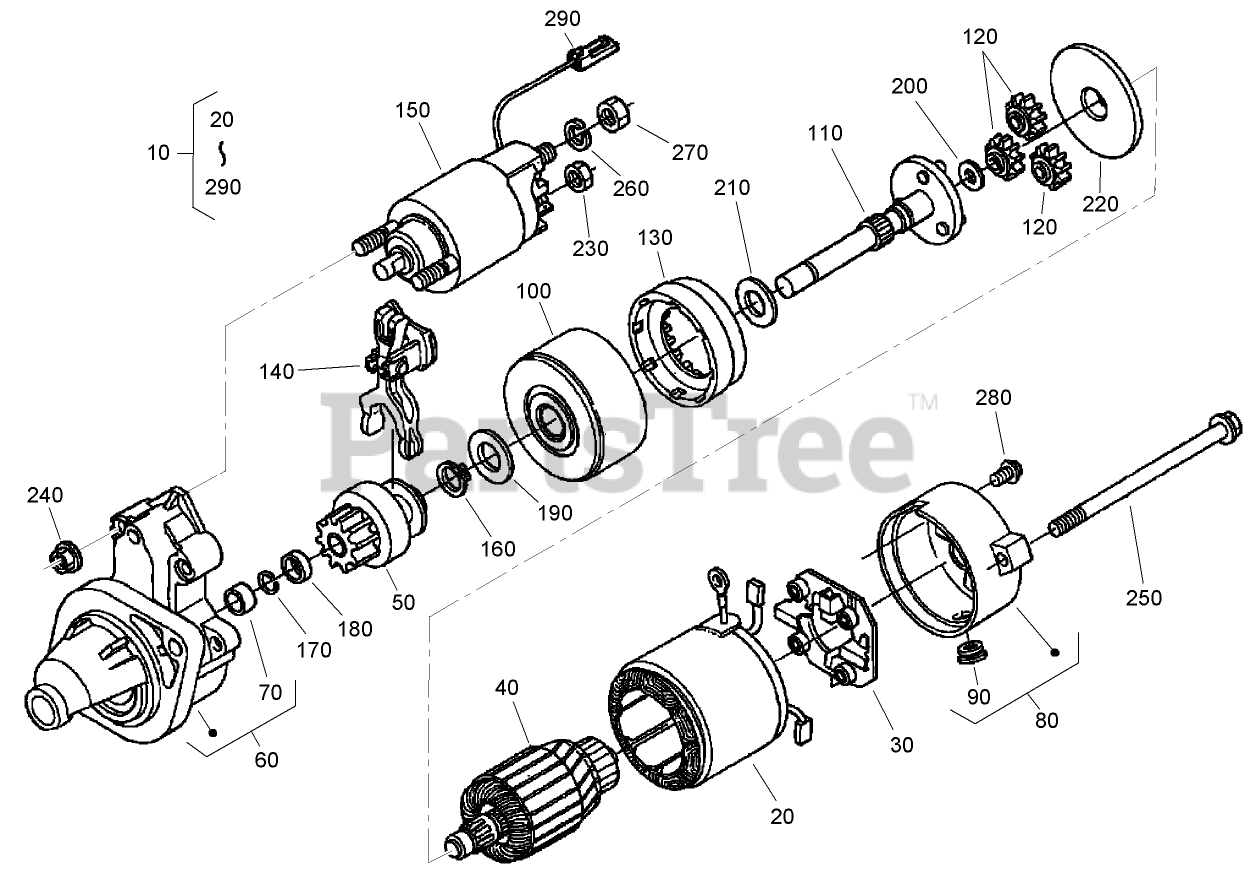

STARTER COMPONENTS Parts Diagram

  • Title
10

Toro 112-2832

STARTER ASM
(Superseded to 100-2179)

$1451.99

$

Usually ships in 3-6 days

0

20

Toro 100-2181

STARTER YOKE ASM

$128.99

$

Usually ships in 3-6 days

0

30

Toro 100-2222

HOLDER ASM

$36.99

$

Usually ships in 3-6 days

0

40

Toro 100-2182

ARMATURE ASM

$257.99

$

Usually ships in 3-6 days

0

50

Toro 100-2185

STARTER CLUTCH ASM

$186.99

$

Usually ships in 3-6 days

0

60

Toro 100-2180

STARTER HOUSING ASM

$269.99

$

Usually ships in 3-6 days

0

70

Toro 100-2183

BEARING

$3.99

$

Usually ships in 3-6 days

0

80

Toro 100-2186

FRAME ASM

$102.99

$

Usually ships in 3-6 days

0

90

$6.99

$

Usually ships in 3-6 days

0

100

Toro 100-2223

BEARING ASM

$24.99

$

Usually ships in 3-6 days

0

110

Toro 100-2187

STARTER SHAFT ASM

$51.99

$

Usually ships in 3-6 days

0

120

$30.99

$

Usually ships in 3-6 days

0

130

$102.99

$

Usually ships in 3-6 days

0

140

$9.99

$

Usually ships in 3-6 days

0

150

Toro 100-2211

MAGNETIC SWITCH ASM

$380.99

$

Usually ships in 3-6 days

0

160

Toro 100-2219

RING-SNAP

$18.99

$

Usually ships in 3-6 days

0

170

Toro 100-2212

RING-SNAP

$11.99

$

Usually ships in 3-6 days

0

180

Toro 100-2216

COLLAR

$28.99

$

Usually ships in 3-6 days

0

190

Toro 100-2224

WASHER-PLAIN

$11.99

$

Usually ships in 3-6 days

0

200

Toro 100-2225

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

210

Toro 100-2226

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

220

$17.99

$

Usually ships in 3-6 days

0

230

Toro 100-2243

NUT-HEX
(Superseded to 99-8371)

$6.49

$

Usually ships in 3-6 days

0

240

$3.99

$

Usually ships in 3-6 days

0

250

Toro 100-2210

BOLT-THROUGH

$4.99

$

Usually ships in 3-6 days

0

260

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

270

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

280

$4.99

$

Usually ships in 3-6 days

0

290

Toro 99-1434

WIRE-LEAD

$82.99

$

Usually ships in 3-6 days

0
