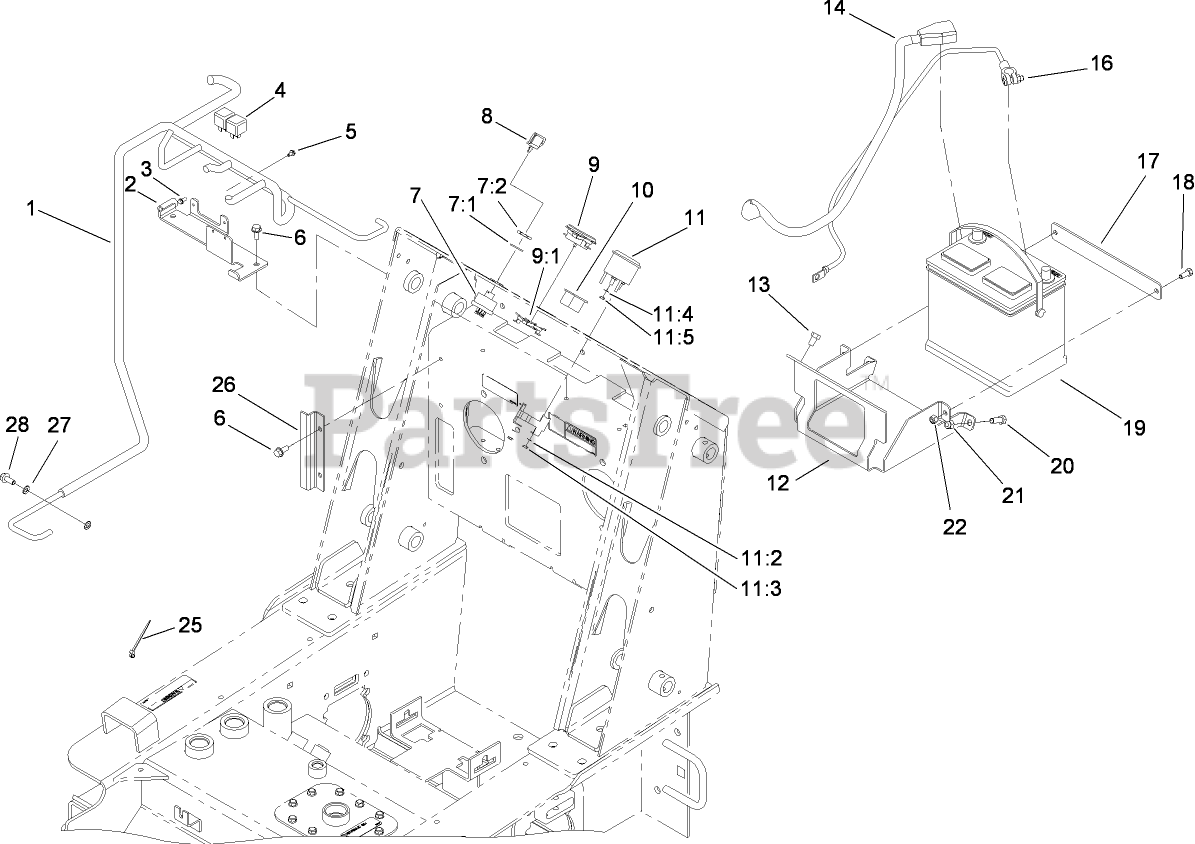

22331 (TX 420) - Toro Dingo Compact Utility Loader (SN: 280000001 - 280999999) (2008) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 115-0732

HARNESS-WIRE

$

$

Not available

1:1

Toro 218-578

FUSE-BLADE, 10 AMP

Note: Not illustrated

$2.99

$

In Stock, Qty 6

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 9

0

1:3

Toro 109103

FUSE-BLADE, 30 AMP

Note: Not illustrated

$6.49

$

In Stock, Qty 6

0

1:4

Toro 109355

FUSE-BLADE, 15 AMP

Note: Not illustrated

$3.49

$

In Stock, only 1 left!

0

2

Toro 106-2558-03

Fuse/Relay Bracket ASM

$126.99

$

In Stock, only 1 left!

0

3

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-7249

RELAY

$22.99

$

In Stock, only 1 left!

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 11

0

7:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

7:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

9

Toro 104-7427

INDUCTIVE HOURMETER ASM

$305.99

$

Usually ships in 3-6 days

0

9:1

Toro 104-4234

CLIP-MOUNTING

$6.99

$

Usually ships in 3-6 days

0

10

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

11

Toro 66-2940

GAUGE-FUEL

$180.99

$

Usually ships in 3-6 days

0

11:2

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

11:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11:4

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

11:5

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 106-9390-01

TRAY-MOUNTING, BATTERY

$155.99

$

Usually ships in 3-6 days

0

13

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

14

Toro 106-5707

CABLE-BATTERY, POSITIVE

$96.99

$

Usually ships in 3-6 days

0

16

Toro 106-5708

CABLE-BATTERY, NEGATIVE

$85.99

$

Usually ships in 3-6 days

0

17

Toro 105-0371-01

CLAMP-BATTERY
(Superseded to 105-0371-03)

$18.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 104-9979

BATTERY
(Superseded to 132-8621)

$391.99

$

Usually ships in 3-6 days

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

25

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

26

Toro 100-6117-01

SHIELD-WIRING

$23.99

$

Usually ships in 3-6 days

0

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

28

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0
