22331 (TX 420) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) GRILL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

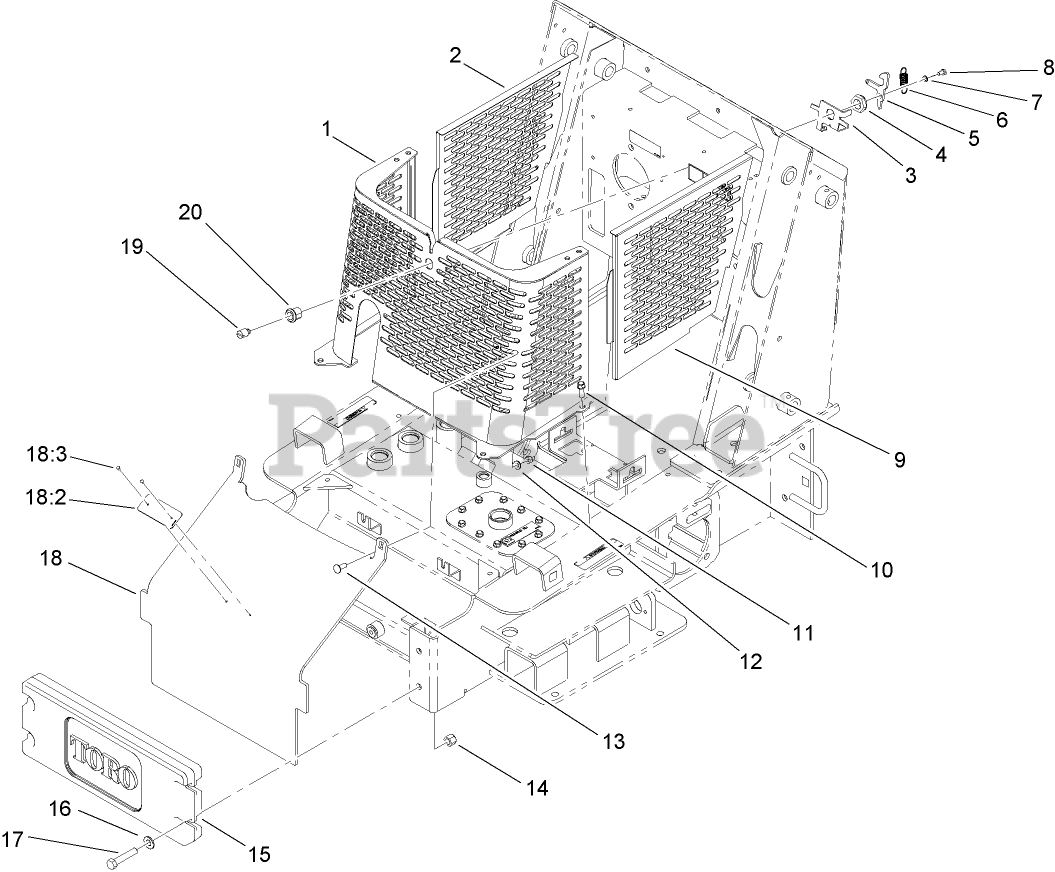

GRILL ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5721-03

GRILL ASM
(Superseded to 117-1316-03)

$718.99

$

Usually ships in 3-6 days

0

2

Toro 106-5727-03

PANEL-SIDE, RH

$128.99

$

Usually ships in 3-6 days

0

3

Toro 106-5729-03

BRACKET-LATCH
(Superseded to 106-5729)

$44.99

$

Usually ships in 3-6 days

0

4

Toro 3296-60

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

5

Toro 106-5728

CAM-LATCH

$14.99

$

Usually ships in 3-6 days

0

6

Toro 104-0869

SPRING

$13.99

$

Usually ships in 3-6 days

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

9

Toro 106-5726-03

PANEL-SIDE, LH

$128.99

$

Usually ships in 3-6 days

0

10

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3230-28

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 99-6166-01

COUNTERWEIGHT-FRONT

$777.99

$

Usually ships in 3-6 days

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

18

Toro 108-4644

HEAT SHIELD ASM

$

$

Not available

18:2

Toro 104-9983

PLATE-HOT SURFACE
(Superseded to 115-4882)

$86.99

$

Usually ships in 3-6 days

0

18:3

Toro 3269-31

RIVET-POP

$3.49

$

In Stock, Qty 10

0

19

Toro 106-9336

INSERT-LATCH

$

$

Not available

20

Toro 106-9335

HOUSING-LATCH

$66.99

$

Usually ships in 3-6 days

0
