22331 (TX 420) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) TWO SPOOL VALVE ASSEMBLY NO. 106-9307 Parts Diagram

Dingo Compact Utility Loader

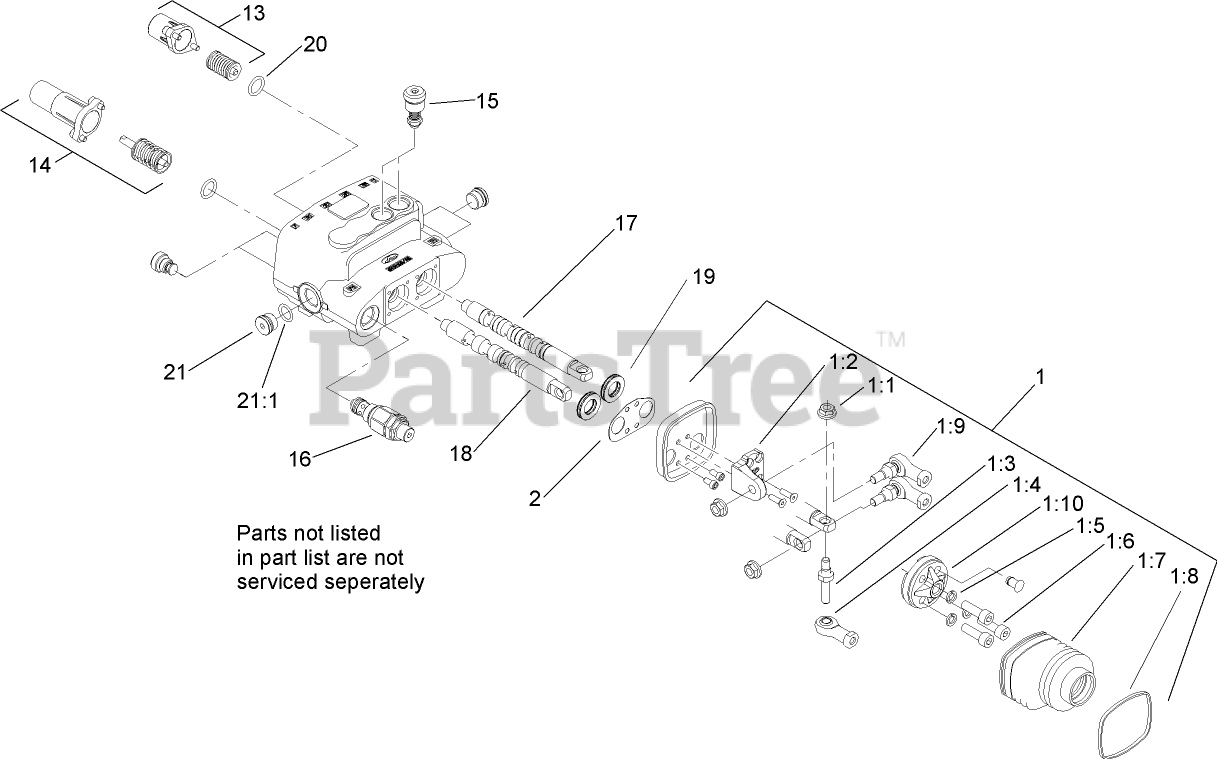

TWO SPOOL VALVE ASSEMBLY NO. 106-9307 Parts Diagram

  • Title

1

Toro 106-7724

JOYSTICK KIT

$834.99

$

Usually ships in 3-6 days

0

1:1

Toro 98-0668

NUT

$3.99

$

Usually ships in 3-6 days

0

1:2

Toro 106-7726

PIVOT-JOYSTICK

$80.99

$

Usually ships in 3-6 days

0

1:3

Toro 106-7727

PIN-JOYSTICK

$175.99

$

Usually ships in 3-6 days

0

1:4

Toro 106-7728

END-ROD

$148.99

$

Usually ships in 3-6 days

0

1:5

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

1:6

Toro 98-5828

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

1:7

Toro 106-7729

BELLOW-RUBBER

$158.99

$

Usually ships in 3-6 days

0

1:8

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

1:9

Toro 106-7730

JOINT-JOYSTICK

$186.99

$

Usually ships in 3-6 days

0

1:10

Toro 106-7731

HOLDER-ARTICULATED

$81.99

$

In Stock, only 1 left!

0

2

Toro 106-7725

SEAL-JOYSTICK

$32.99

$

Usually ships in 3-6 days

0

13

Toro 106-7732

VALVE SPRING KIT

$117.99

$

Usually ships in 3-6 days

0

14

Toro 106-7733

DETENT SPRING KIT

$674.99

$

Usually ships in 3-6 days

0

15

Toro 106-7734

VALVE-RELIEF

$761.99

$

Usually ships in 3-6 days

0

16

Toro 106-7735

VALVE-RELIEF, MAIN

$505.99

$

Usually ships in 3-6 days

0

17

Toro 106-7736

SPOOL-VALVE

$380.99

$

Usually ships in 3-6 days

0

18

Toro 106-7737

SPOOL-VALVE
(Superseded to 144-7350)

$189.99

$

Usually ships in 3-6 days

0

19

Toro 106-7738

SEAL-VALVE, SPOOL

$93.99

$

Usually ships in 3-6 days

0

20

Toro 106-7719

SEAL-VALVE

$11.99

$

Usually ships in 3-6 days

0

21

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0
