22331 (TX 420) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH20S 64725 Parts Diagram

Dingo Compact Utility Loader

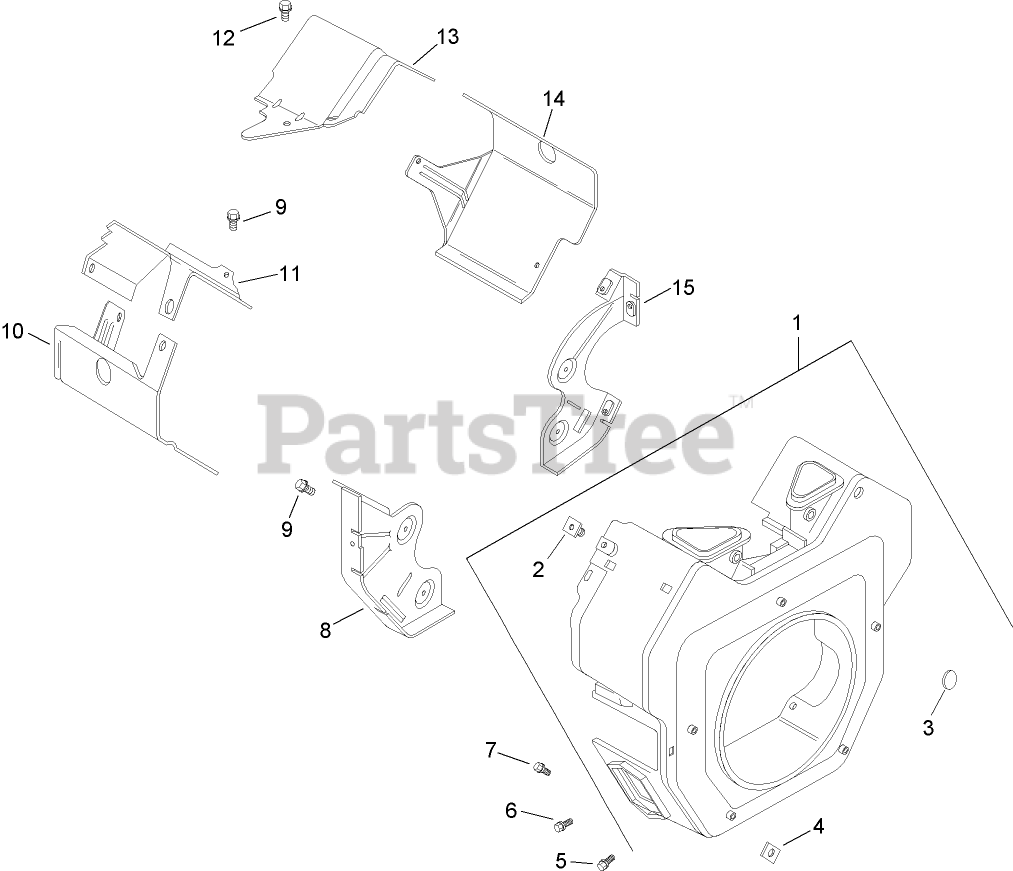

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH20S 64725 Parts Diagram

  • Title

1

Kohler 24 027 175-S

Blower Housing ASM (Includes 2-4)
(Superseded to 24 027 477-S)

Note: Obtain parts from www.kohlerplus.com

$111.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

3

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

5

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

6

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

7

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

8

Kohler 24 146 16-S

Plate-Backing (No. 2 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

10

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 70-S

BAFFLE-VALLEY (No. 2 SIDE)
(Superseded to 32 063 02-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

13

Kohler 24 063 59-S

BAFFLE-VALLEY (No. 1 SIDE)
(Superseded to 32 063 03-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

14

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

15

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 113 95-S

Decal-20 HP

Note: Not illustrated

$17.99

$

In Stock, only 1 left!

0

Kohler 24 113 95-S

Decal-20 HP

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Not illustrated

$2.49

$

In Stock, only 4 left!

0
