22330 (TX 413) - Toro Dingo Compact Utility Loader (SN: 280000001 - 280999999) (2008) MUFFLER ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

Dingo Compact Utility Loader

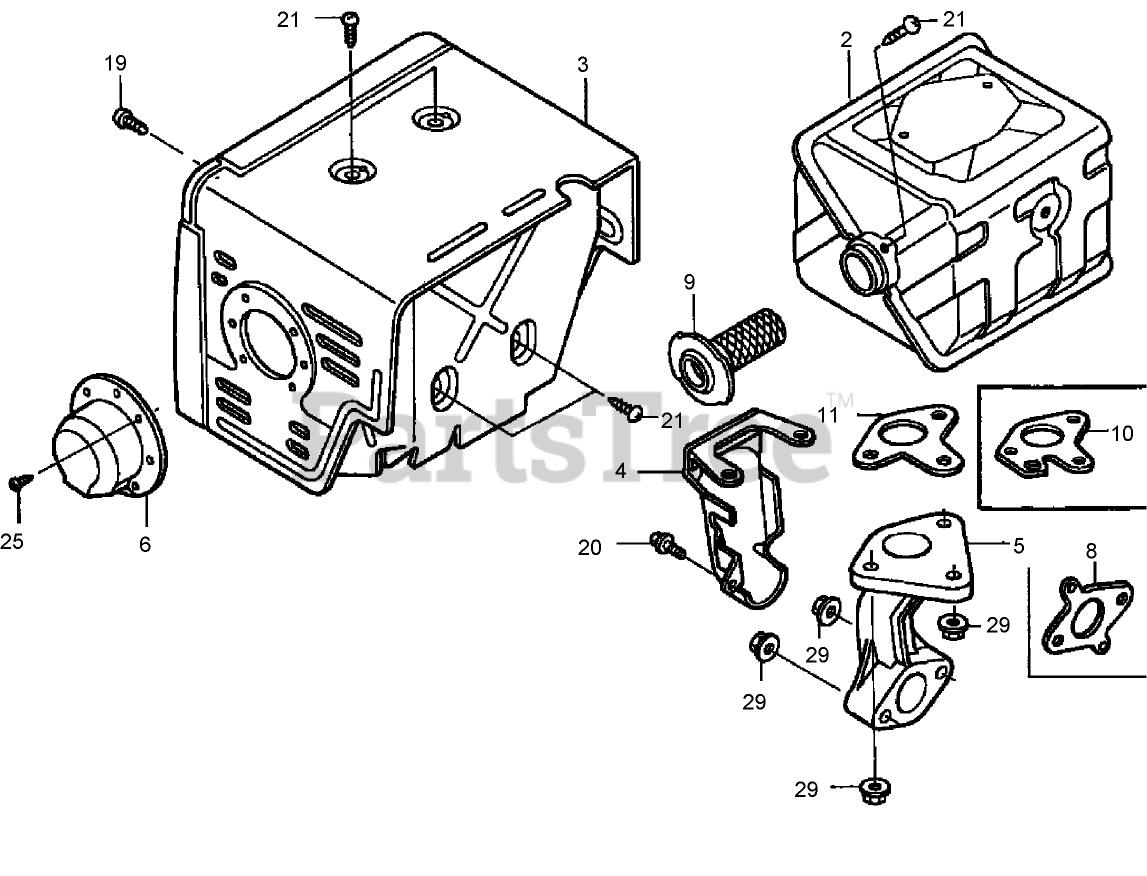

MUFFLER ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

  • Title

2

Honda 18310-ZE2-W61

MUFFLER (100DB)

Note: Obtain parts from www.honda-engines.com

$129.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZE2-W61

PROTECTOR-MUFFLER
(Superseded to 18320-ZE2-W62)

Note: Obtain parts from www.honda-engines.com

$71.99

$

In Stock, only 1 left!

0

4

Honda 18323-ZE3-W40

PROTECTOR-EXHAUST PIPE

Note: Obtain parts from www.honda-engines.com

$29.99

$

In Stock, only 1 left!

0

5

Honda 18330-ZE2-W00

PIPE-EXHAUST

Note: Obtain parts from www.honda-engines.com

$79.99

$

Usually ships in 3-6 days

0

6

Honda 18331-ZE3-810

CAP-MUFFLER
(Superseded to 18331-ZE3-811)

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 2 left!

0

8

Honda 18333-ZF6-W01

GASKET-EXHAUST PIPE
(Superseded to 18333-Z1C-901)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

9

Honda 18355-ZE2-W00

ARRESTER-SPARK

Note: Obtain parts from www.honda-engines.com

$56.99

$

In Stock, only 2 left!

0

10

Honda 18381-ZE2-W10

GASKET-MUFFLER (ARRESTER)

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, Qty 7

0

11

Honda 18381-ZE2-800

GASKET-MUFFLER
(Superseded to 18381-ZE2-801)

Note: Obtain parts from www.honda-engines.com

$15.99

$

In Stock, only 2 left!

0

19

Honda 90006-ZE2-000

SCREW-TAPPING (6X10)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 4 left!

0

20

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 17

0

21

Honda 90050-ZE1-000

SCREW-TAPPING (5X8)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

25

Honda 90055-ZE1-000

SCREW-TAPPING (4X6)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0

29

Honda 94050-08000

NUT-FLANGE (8MM)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0
