22330 (TX 413) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) CRANKCASE COVER ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

Dingo Compact Utility Loader

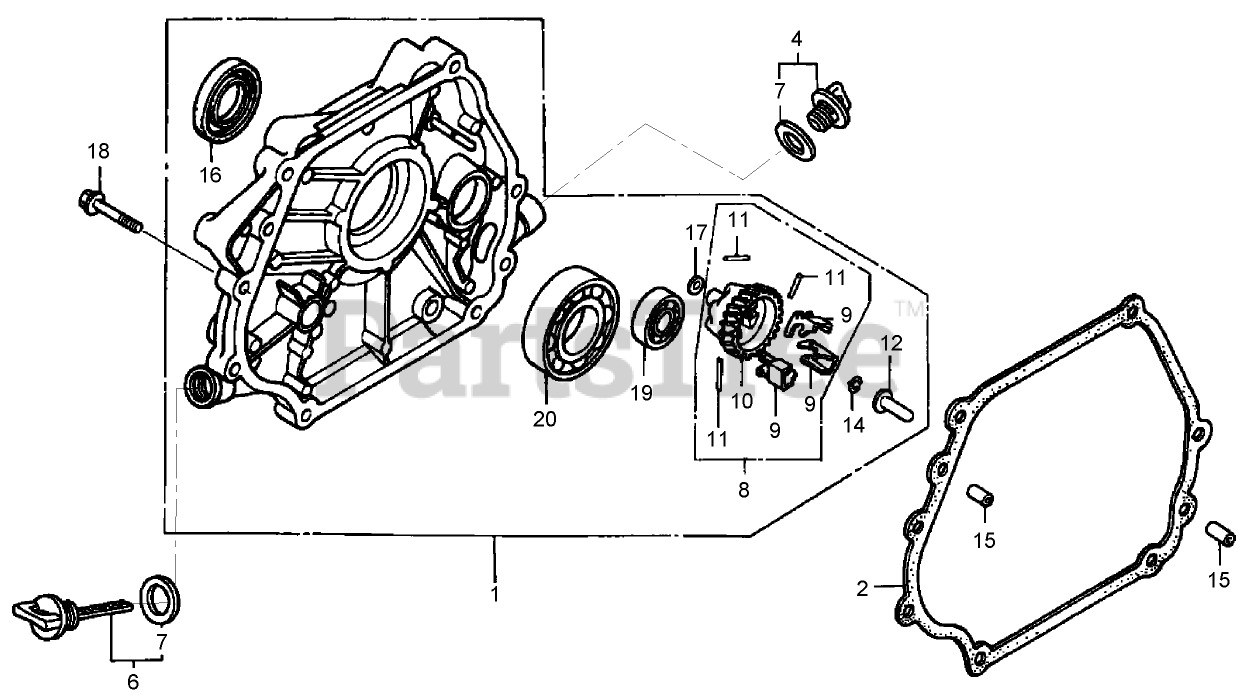

CRANKCASE COVER ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

  • Title
1

Honda 11300-ZE3-604

COVER ASM-CRANKCASE
(Superseded to 11300-Z1C-600)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 11381-ZE3-801

GASKET-CASE COVER

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 1 left!

0

4

Honda 15600-ZG4-003

CAP ASM-OIL FILLER

Note: Obtain parts from www.honda-engines.com

$6.99

$

In Stock, only 1 left!

0

6

Honda 15600-735-003

CAP ASM-OIL FILLER

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 11

0

7

Honda 15625-ZE1-003

GASKET-CAP, OIL FILLER

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

8

Honda 16510-ZE3-000

GOVERNOR ASM

Note: Obtain parts from www.honda-engines.com

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16511-ZE8-000

WEIGHT-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

10

Honda 16512-ZE3-000

HOLDER-GOVERNOR WEIGHT

Note: Obtain parts from www.honda-engines.com

$18.99

$

Usually ships in 3-6 days

0

11

Honda 16513-ZE2-000

PIN-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

12

Honda 16531-Z0A-000

SLIDER-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, Qty 5

0

14

Honda 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 6

0

15

Honda 90701-HC4-000

PIN-DOWEL

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 2 left!

0

16

Honda 91201-ZE3-004

SEAL-OIL (35X5X8)

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, Qty 8

0

17

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-08040-00

BOLT-FLANGE (8X40)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

19

Honda 96100-62020-00

BEARING-RADIAL BALL

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days

0

20

Honda 96100-62070-00

BEARING-BALL, RADIAL

Note: Obtain parts from www.honda-engines.com

$56.99

$

Usually ships in 3-6 days

0
