22330 (TX 413) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) FUEL TANK ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

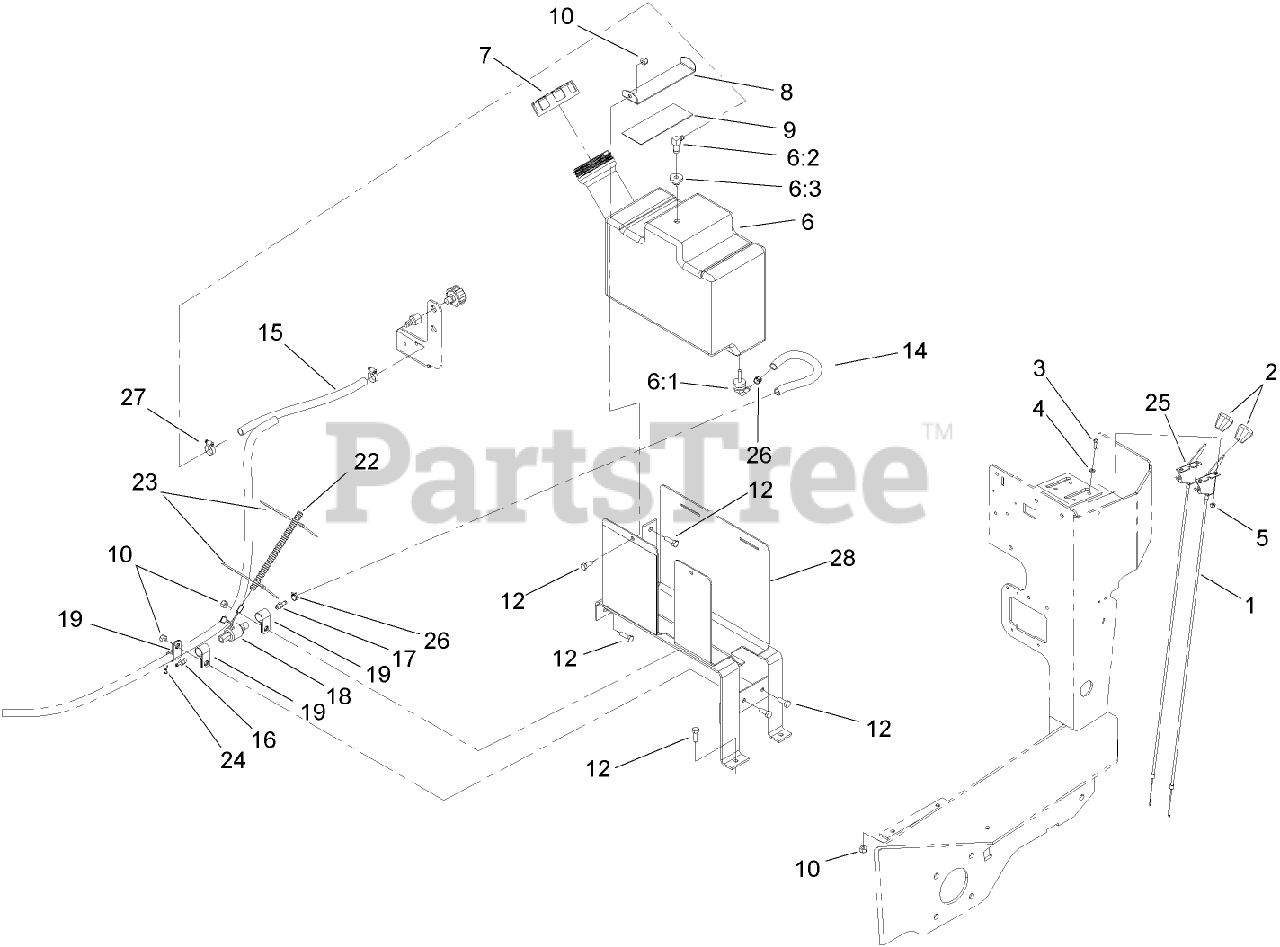

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 106-9435

CABLE-CHOKE

$90.99

$

Usually ships in 3-6 days

0

2

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

3

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

4

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 106-9460

FUEL TANK ASM

$

$

Not available

6:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

6:2

Toro 100-1597

FITTING-90 DEGREE
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

6:3

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

7

Toro 95-4192

UNLEADED GAS CAP ASM

$37.99

$

In Stock, only 2 left!

0

8

Toro 106-9457-03

STRAP-TANK

$

$

Not available

9

Toro 106-9488

FELT-STRAP

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 104-4119

HOSE - GAS

$8.99

$

Usually ships in 3-6 days

0

15

Toro 104-4848

HOSE-FUEL
(Superseded to 110-4110)

$9.99

$

Usually ships in 3-6 days

0

16

Toro 354-22

FITTING-BARBED

$5.49

$

Usually ships in 3-6 days

0

17

Toro 304-73

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

18

Toro 106-9528

VALVE-SHUTOFF, FUEL

$346.99

$

Usually ships in 3-6 days

0

19

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

22

Toro 106-9504

COVER-BRACE

$

$

Not available

23

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

24

Toro 2412-79

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

25

Toro 106-9434

CABLE-THROTTLE

$86.99

$

Usually ships in 3-6 days

0

26

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

27

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

28

Toro 106-9486

TANK BRACKET ASM

$

$

Not available
