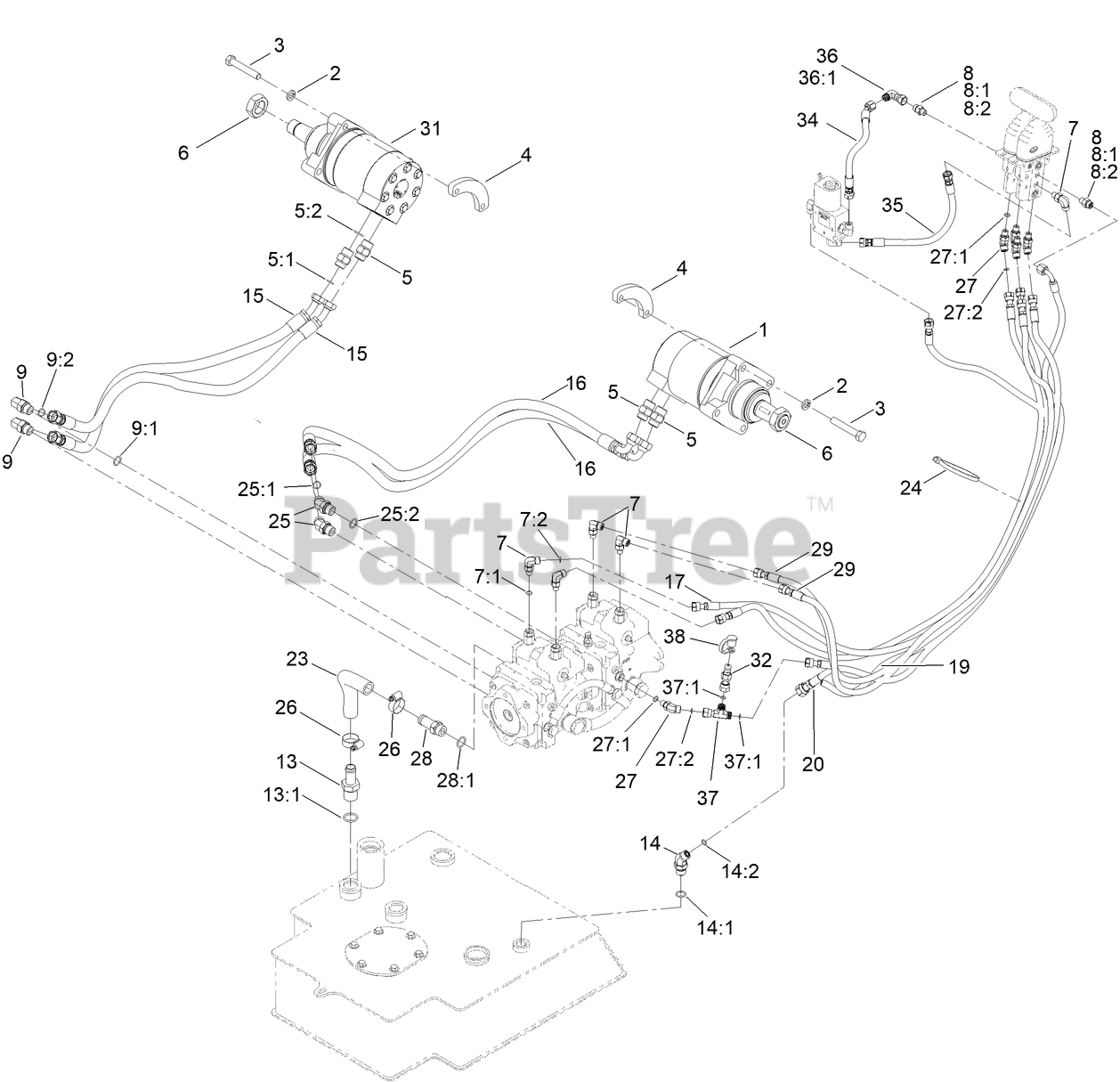

22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 412438203 - 412899999) Hydraulic Motor and Hose Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

Hydraulic Motor and Hose Assembly Parts Diagram

  • Title

1

Toro 138-0761

MOTOR-HYD

$2190.99

$

Usually ships in 3-6 days

0

2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Toro 115-4845

SCREW-HH, TAP

$4.99

$

In Stock, only 4 left!

0

4

Toro 137-4614

PLATE-MOUNTING, WHEELMOTOR

$45.99

$

Usually ships in 3-6 days

0

5

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

5:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

6

Toro 107-9319

NUT-HEX

$46.99

$

In Stock, only 2 left!

0

7

Toro 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

7:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

8

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

8:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

9

Toro 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

9:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

9:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

13

Toro 354-73

FITTING

$43.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

14

Toro 340-138

FITTING-HYD, 45 DEG

$39.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

14:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

15

Toro 133-0226

HOSE-HYD

$176.99

$

Usually ships in 3-6 days

0

16

Toro 130-7734

HOSE-HYD

$189.99

$

Usually ships in 3-6 days

0

17

Toro 139-0789

HYD HOSE ASM

$65.99

$

Usually ships in 3-6 days

0

19

Toro 139-0790

HYD HOSE ASM

$61.99

$

Usually ships in 3-6 days

0

20

Toro 139-0791

HYD HOSE ASM

$70.99

$

Usually ships in 3-6 days

0

23

Toro 133-0231

HOSE-RETURN

$37.99

$

Usually ships in 3-6 days

0

24

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

25

Toro 340-101

FITTING-HYD, 45 DEG

$38.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

25:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

26

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

27

Toro 340-103

FITTING-HYD, 45 DEG

$46.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

27:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

28

Toro 354-136

FITTING-STR

$52.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

29

Toro 139-0792

HYD HOSE ASM

$60.99

$

Usually ships in 3-6 days

0

31

Toro 138-0778

MOTOR-HYD

$2190.99

$

Usually ships in 3-6 days

0

32

Toro 115-8886

NIPPLE-TEST

$86.99

$

Usually ships in 3-6 days

0

34

Toro 140-5878

HOSE ASM

$44.99

$

Usually ships in 3-6 days

0

35

Toro 140-5877

HOSE ASM

$37.99

$

Usually ships in 3-6 days

0

36

Toro 92-2745

FITTING-ADAPTOR

$103.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

37

Toro 340-151

FITTING-HYD

$111.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

38

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0
