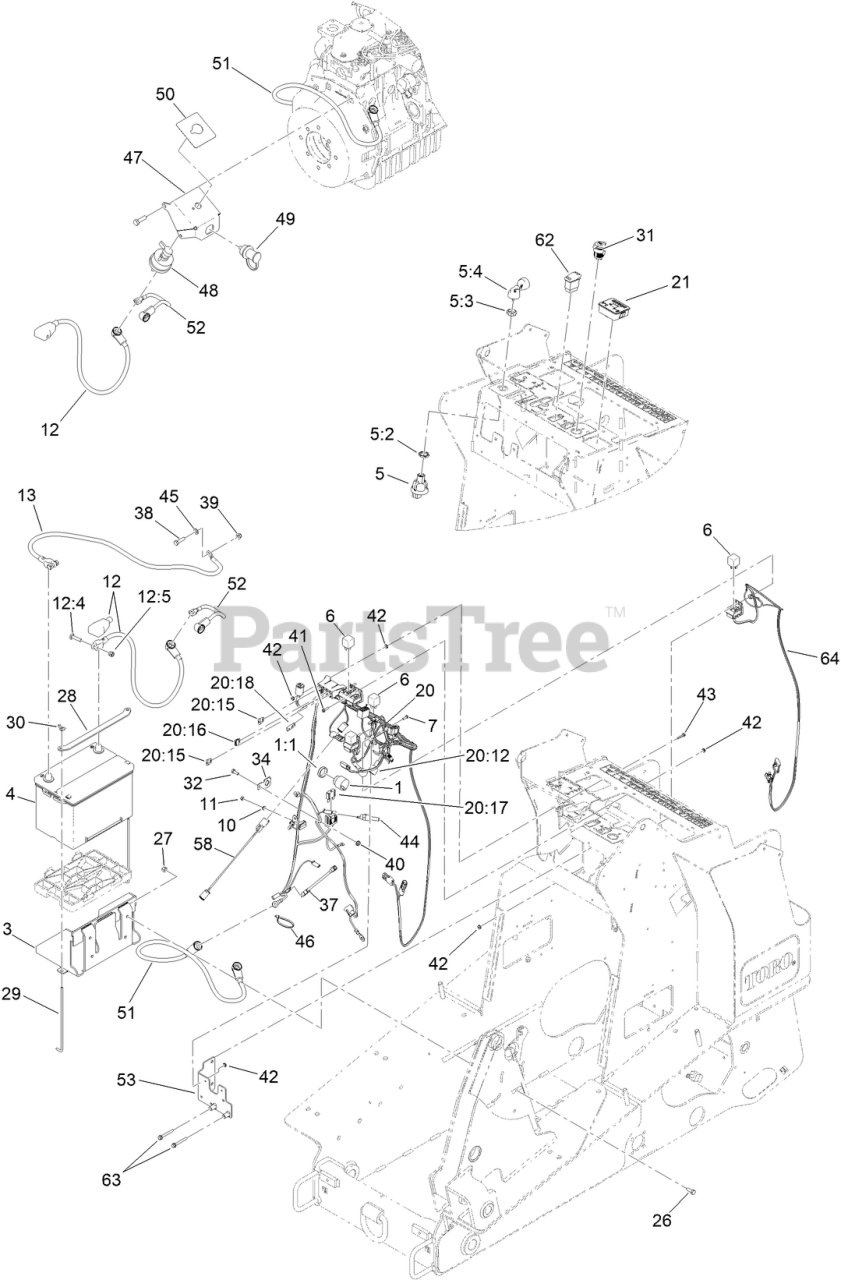

22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 410500000 - 411839999) Electrical Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

Electrical Assembly Parts Diagram

  • Title

1

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

3

Toro 130-5236-03

TRAY-BATTERY

$198.99

$

Usually ships in 3-6 days

0

4

Toro 106-5190

BATTERY

$

$

Not available

5

Toro 121-5159

IGNITION SWITCH ASM

$122.99

$

In Stock, only 2 left!

0

5:2

Toro 121-5160

NUT-HEX

$114.99

$

Usually ships in 3-6 days

0

5:3

Toro 121-5161

NUT-FACE

$4.49

$

In Stock, only 1 left!

0

5:4

Toro 121-5162

SET-KEY, IGNITION

$35.99

$

In Stock, only 2 left!

0

6

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

7

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

10

Toro 43-5930

WASHER-LOCK, SPRING

$1.49

$

Usually ships in 3-6 days

0

11

Toro 43-2830

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 139-6366

CABLE-BATTERY, POS ASM

$59.99

$

Usually ships in 3-6 days

0

12:4

Toro 32180-109

BOLT-BATTERY CLAMP, 5/16-18 UNC

$

$

Currently unavailable

12:5

Toro 32180-108

NUT-CLAMP, BATTERY

$

$

Currently unavailable

13

Toro 104-0761

CABLE-NEGATIVE

$76.99

$

Usually ships in 3-6 days

0

20

Toro 122-2123

HARNESS-WIRE, TX1000

$596.99

$

Usually ships in 3-6 days

0

20:12

Toro 103-3895

DIODE

$64.99

$

In Stock, Qty 5

0

20:15

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

20:16

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

20:17

Toro 94-8002

FUSE-BLADE, 50 AMP

$27.99

$

Usually ships in 3-6 days

0

20:18

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

21

Toro 130-7635

MODULE-HOUR METER

$152.99

$

Usually ships in 3-6 days

0

26

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 136-5755-03

STRAP-HOLD DOWN, BATTERY

$9.99

$

Usually ships in 3-6 days

0

29

Toro 136-5756

ROD-HOLD DOWN, BATTERY

$12.99

$

Usually ships in 3-6 days

0

30

Toro 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

31

Toro 109-9376

RECEPTACLE-12V

$47.99

$

Usually ships in 3-6 days

0

32

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 114-5502

CLIP-FUSE

$16.99

$

Usually ships in 3-6 days

0

37

Toro 112-2463

HARNESS-LINK, FUSIBLE

$22.99

$

Usually ships in 3-6 days

0

38

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

40

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

41

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

42

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

43

Toro 117-1701

SCREW-HWHTF

$6.49

$

Usually ships in 3-6 days

0

44

Toro 98-3825

SWITCH-TEMP

$218.99

$

Usually ships in 3-6 days

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

47

Toro 131-8009-03

MOUNT-REMOTE TERMINAL

$34.99

$

Usually ships in 3-6 days

0

48

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$159.99

$

Usually ships in 3-6 days

0

49

Toro 132-1364

STUD-JUMPER, POSITIVE

$66.99

$

Usually ships in 3-6 days

0

50

Toro 131-8026

DECAL-BATTERY DISCONNECT

$18.99

$

Usually ships in 3-6 days

0

51

Toro 131-8032

CABLE-BATTERY, POSITIVE

$69.99

$

Usually ships in 3-6 days

0

52

Toro 122-0103

CABLE-BATTERY, POSITIVE

$39.99

$

Usually ships in 3-6 days

0

53

Toro 140-5895-0P

BRACKET

$50.99

$

Usually ships in 3-6 days

0

58

Toro 136-5813

HARNESS-WIRE

$43.99

$

Usually ships in 3-6 days

0

62

Toro 106-2027

SWITCH-INTERMITTENT

$85.99

$

Usually ships in 3-6 days

0

63

Toro 3234-34

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

64

Toro 122-2349

HARNESS-WIRE, AUX HOLD

$148.99

$

Usually ships in 3-6 days
