22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 402000000 - 403329999) Track, Drive Wheel and Tensioner Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

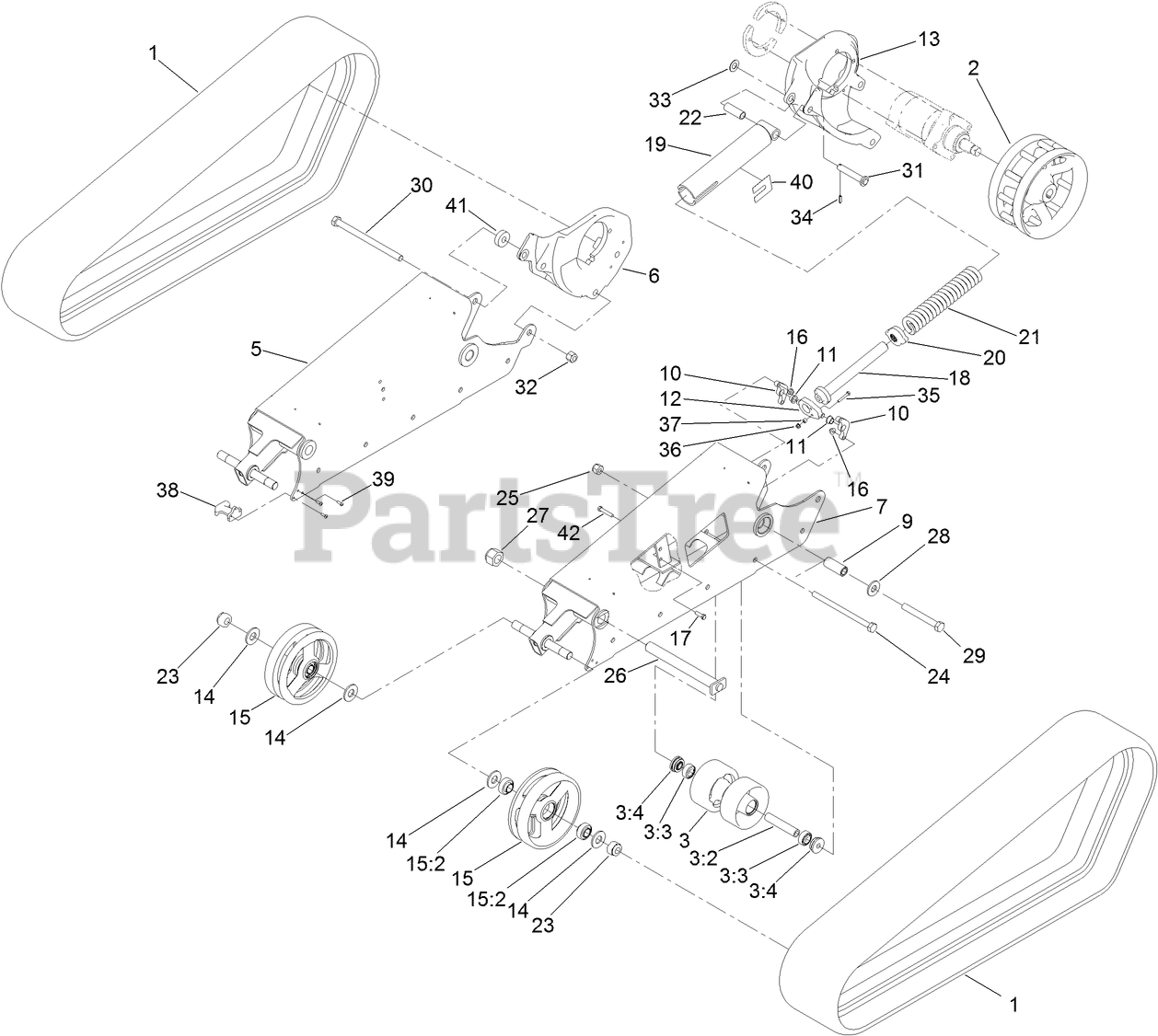

Track, Drive Wheel and Tensioner Assembly Parts Diagram

  • Title

1

Toro 136-5845

TRACK

$1554.99

$

Usually ships in 3-6 days

0

2

Toro 130-2793-03

WHEEL-DRIVE
(Superseded to 144-7352)

$702.99

$

Usually ships in 3-6 days

0

3

Toro 138-1417

WHEEL ASM

$542.99

$

Usually ships in 3-6 days

0

3:2

Toro 138-1418

SPACER

$39.99

$

In Stock, only 2 left!

0

3:3

Toro 138-0547

BEARING-BALL

$18.99

$

In Stock, only 3 left!

0

3:4

Toro 138-1422

SEAL

$52.99

$

In Stock, only 4 left!

0

5

Toro 133-8592-01

RH TRACK GUIDE ASM

$2486.99

$

Usually ships in 3-6 days

0

6

Toro 127-9596-03

MOUNT-MOTOR, RH

$936.99

$

Usually ships in 3-6 days

0

7

Toro 132-8609-01

LH TRACK GUIDE ASM

$2486.99

$

Usually ships in 3-6 days

0

9

Toro 130-1069

SPACER

$32.99

$

Usually ships in 3-6 days

0

10

Toro 127-9566-03

PLATE-MOUNT, PIVOT
(Superseded to 127-9566)

$40.99

$

In Stock, only 2 left!

0

11

Toro 65-8770

BUSHING-BELLCRANK

$6.99

$

In Stock, only 3 left!

0

12

Toro 132-8620

PLATE-PIVOT

$83.99

$

In Stock, only 1 left!

0

13

Toro 127-9595-03

MOUNT-MOTOR, LH

$927.99

$

Usually ships in 3-6 days

0

14

Toro 115-0722

WASHER-PLAIN

$7.49

$

In Stock, Qty 8

0

15

Toro 133-8626

TENSIONER-WHEEL

$527.99

$

In Stock, only 2 left!

0

15:2

Toro 104-6129

BEARING-BALL

$142.99

$

In Stock, only 2 left!

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 127-9563

BOLT-TENSIONER

$254.99

$

Usually ships in 3-6 days

0

19

Toro 127-9559-03

PIVOT-TENSIONER

$213.99

$

Usually ships in 3-6 days

0

20

Toro 108-4664

BLOCK-TENSIONER

$133.99

$

In Stock, only 2 left!

0

21

Toro 95-3624

SPRING-COMPRESSION

$186.99

$

In Stock, only 1 left!

0

22

Toro 127-9565

SPACER-PIVOT

$13.99

$

Usually ships in 3-6 days

0

23

Toro 104-2024

NUT-HEX, NI

$20.99

$

In Stock, only 2 left!

0

24

Toro 133-8579

SCREW-HH

$14.99

$

In Stock, only 2 left!

0

25

Toro 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

26

Toro 133-8577

PIN-TRACK

$83.99

$

Usually ships in 3-6 days

0

27

Toro 125-0399

NUT-HH

$20.99

$

In Stock, only 2 left!

0

28

Toro 99-2659

WASHER

$11.99

$

In Stock, only 1 left!

0

29

Toro AU426-1296

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

30

Toro 133-8580

SCREW-HH

$26.99

$

Usually ships in 3-6 days

0

31

Toro 130-1057

PIN-TENSIONER

$27.99

$

Usually ships in 3-6 days

0

32

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

33

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

34

Toro 32121-24

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

35

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

37

Toro 98-4799

SPACER

$7.99

$

In Stock, only 2 left!

0

38

Toro 133-8581

TRACK-GUIDE

$51.99

$

Usually ships in 3-6 days

0

39

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

40

Toro 136-5750

DECAL-INDICATOR, TENSIONER

$7.99

$

Usually ships in 3-6 days

0

41

Toro 133-8574

SPACER-WHEEL, MOUNT

$15.99

$

Usually ships in 3-6 days

0

42

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
