22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 316000001 - 316000199) (2016) FRAME, FUEL TANK AND COVER ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

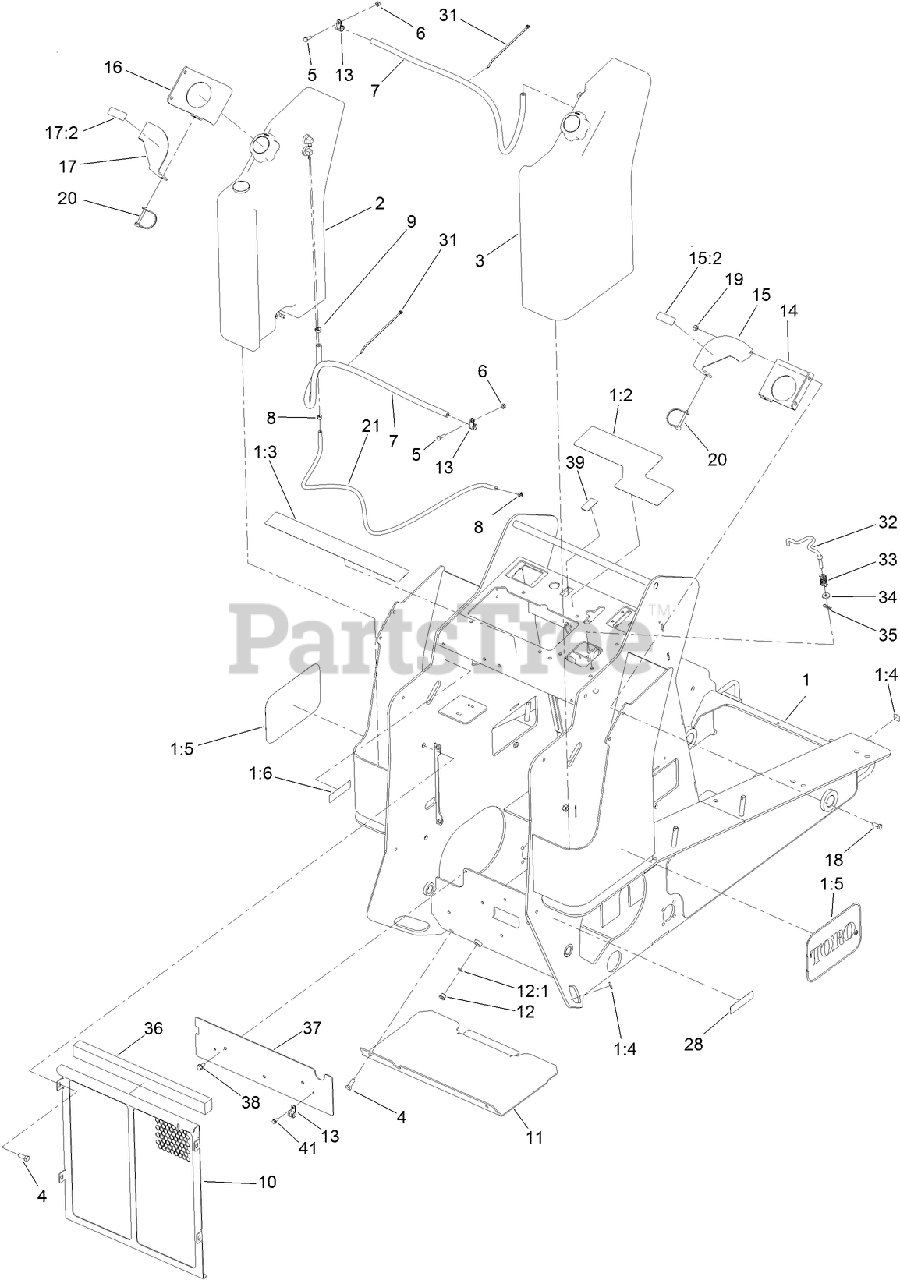

FRAME, FUEL TANK AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 130-5314

FRAME
(Superseded to 144-7379)

$6193.99

$

Usually ships in 3-6 days

0

1:2

Toro 131-0707

DECAL-CONTROL PANEL

$30.99

$

Usually ships in 3-6 days

0

1:3

Toro 131-0710

DECAL-SAFETY

$19.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:5

Toro 66-6140

DECAL

$27.99

$

In Stock, only 3 left!

0

1:6

Toro 115-4865

DECAL-RADIATOR FILL

$13.99

$

Usually ships in 3-6 days

0

2

Toro 130-1026

LH FUEL TANK ASM

$500.99

$

Usually ships in 3-6 days

0

3

Toro 130-1027

RH FUEL TANK ASM

$417.99

$

Usually ships in 3-6 days

0

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

7

Toro 110-6186

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

8

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

9

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

10

Toro 130-0964-03

RADIATOR COVER ASM

$561.99

$

Usually ships in 3-6 days

0

11

Toro 130-0995-01

COVER-BOTTOM

$106.99

$

Usually ships in 3-6 days

0

12

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

13

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

14

Toro 130-1104-03

PLATE-HOLD DOWN, RH

$29.99

$

Usually ships in 3-6 days

0

15

Toro 130-5317

PLATE-LOCK, FUEL CAP, RH

$101.99

$

Usually ships in 3-6 days

0

15:2

Toro 93-6680

DECAL-DIESEL

$23.99

$

Usually ships in 3-6 days

0

16

Toro 130-1134-03

PLATE-HOLD DOWN, LH

$29.99

$

Usually ships in 3-6 days

0

17

Toro 130-5316

PLATE-LOCK, FUEL CAP, LH

$101.99

$

Usually ships in 3-6 days

0

17:2

Toro 93-6680

DECAL-DIESEL

$23.99

$

Usually ships in 3-6 days

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 100-1663

PIN-HITCH

$15.99

$

In Stock, Qty 6

0

21

Toro 130-7714

HOSE-FUEL

$23.99

$

Usually ships in 3-6 days

0

28

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

31

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

32

Toro 131-0713

ROD-INTERLOCK

$63.99

$

Usually ships in 3-6 days

0

33

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

34

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

35

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

36

Toro 131-9175

SEAL-FOAM

$13.99

$

Usually ships in 3-6 days

0

37

Toro 133-1637-01

PLATE-COVER

$25.99

$

Usually ships in 3-6 days

0

38

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

39

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

$8.49

$

Usually ships in 3-6 days

0

41

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
