22328 HD (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 402000000 - 403099999) BRAKE ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

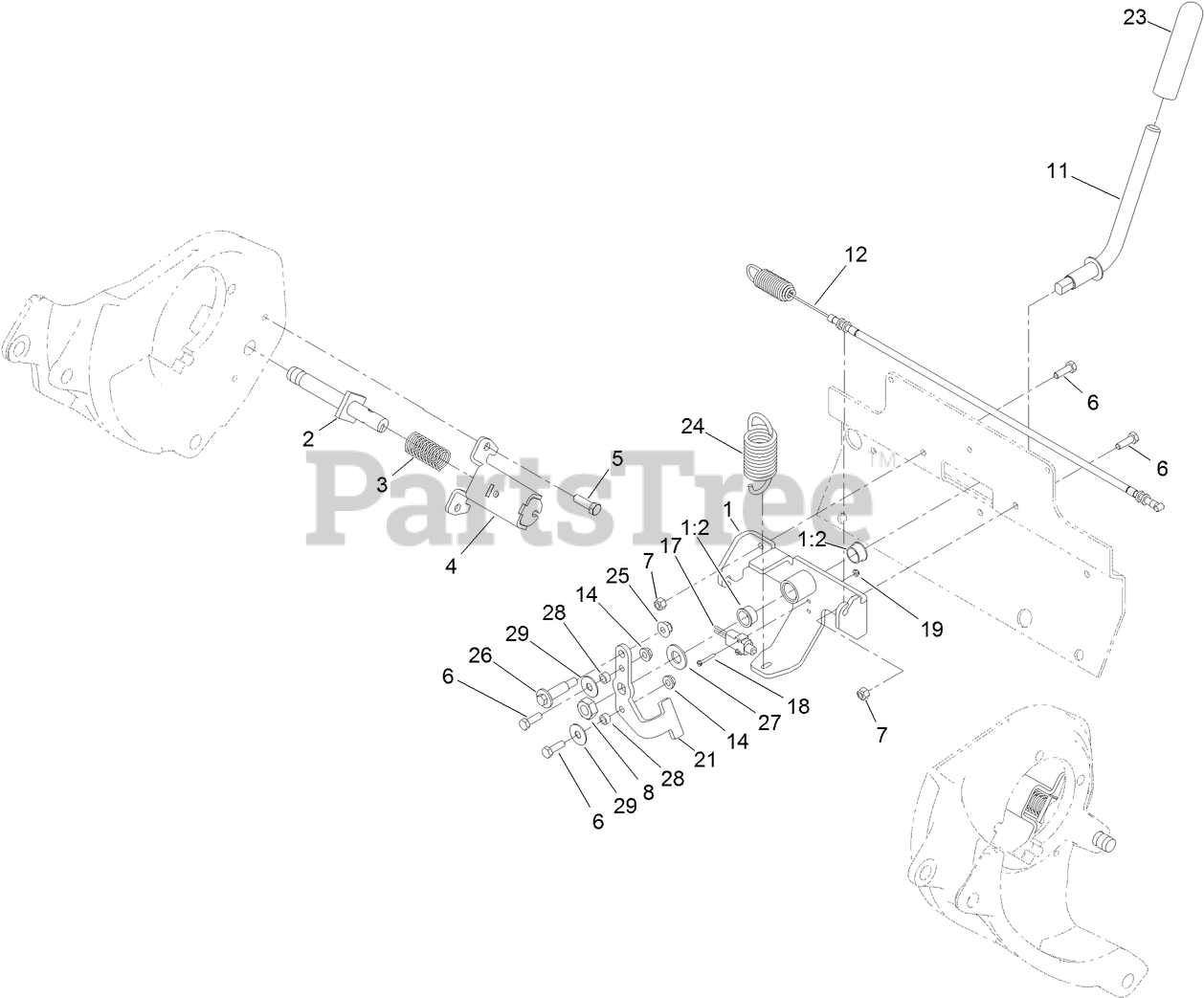

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-9649

BRAKE BRACKET ASM

$

$

Not available

1:2

Toro 256-252

BEARING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

2

Toro 130-5256

SHAFT ASM

$74.99

$

Usually ships in 3-6 days

0

3

Toro 125-0344

SPRING-COMPRESSION

$16.99

$

Usually ships in 3-6 days

0

4

Toro 130-5284-03

BRACKET-BRAKE

$

$

Not available

5

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

11

Toro 133-0232

LEVER-BRAKE

$133.99

$

Usually ships in 3-6 days

0

12

Toro 130-7737

CABLE-BRAKE
(Superseded to 136-4799)

$358.99

$

Usually ships in 3-6 days

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 95-8900

SWITCH

$101.99

$

In Stock, only 1 left!

0

18

Toro 32105-9

SCREW

$1.49

$

In Stock, Qty 9

0

19

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

21

Toro 133-0234-03

PLATE-LINKAGE, BRAKE

$

$

Not available

23

Toro 110-1037

GRIP-HANDLE

$19.99

$

Usually ships in 3-6 days

0

24

Toro 93-5985

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 104-3396

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

27

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

28

Toro 85-9120

SPACER-PIVOT, TILT

$5.49

$

Usually ships in 3-6 days

0

29

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0
