22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 316000001 - 316000163) (2016) HYDRAULIC TANK AND TRACK SHAFT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

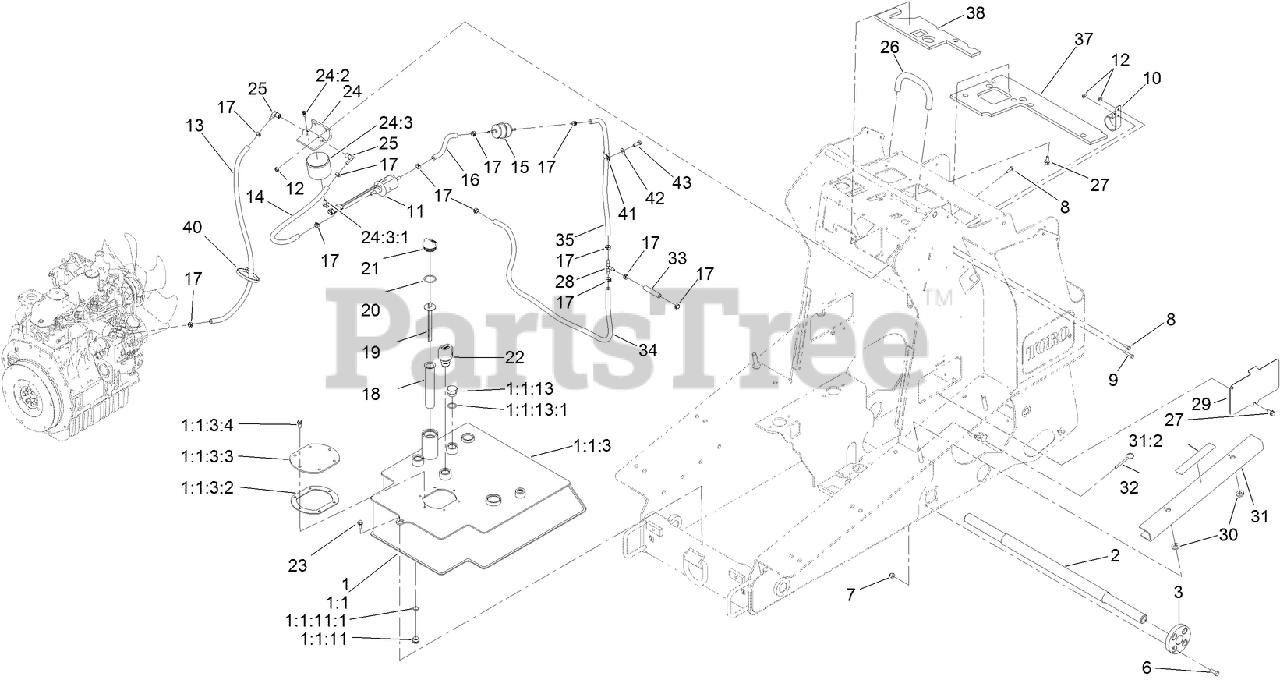

HYDRAULIC TANK AND TRACK SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 125-0404-03

HYD TANK ASM

$1738.99

$

Usually ships in 3-6 days

0

1:1

TANK-HYD

Note: Not serviced separately

$

$

Not available

1:1:3

TANK TOP ASM

Note: Not serviced separately

$

$

Not available

1:1:3:2

Toro 107-3557

GASKET-COVER, ACCESS

$58.99

$

Usually ships in 3-6 days

0

1:1:3:3

Toro 108-6297

COVER-TANK

$

$

Currently unavailable

1:1:3:4

Toro 98-9940

SCREW

$2.49

$

In Stock, only 3 left!

0

1:1:11

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:1:11:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

1:1:13

Toro 354-74

PLUG-HH

$29.99

$

Usually ships in 3-6 days

0

1:1:13:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 125-0425

SHAFT-TRACK

$328.99

$

Usually ships in 3-6 days

0

3

Toro 125-0339

HUB-SHAFT
(Superseded to 132-9075)

$126.99

$

Usually ships in 3-6 days

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

10

Toro 110-8817

BRACKET-PUMP, FUEL

$26.99

$

Usually ships in 3-6 days

0

11

Toro 110-8806

PUMP-FUEL
(Superseded to 144-4020)

$204.99

$

In Stock, only 1 left!

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

13

Toro 110-6186

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

14

Toro 114-4028

HOSE-FUEL

$24.99

$

Usually ships in 3-6 days

0

15

Toro 112-7836

FILTER-INLINE

$14.99

$

In Stock, Qty 20+

0

16

Toro 108-3280

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

17

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

18

Toro 61-2790

FILTER-SCREEN

$

$

Not available

19

Toro 130-7686

DIPSTICK

$26.99

$

Usually ships in 3-6 days

0

20

Toro 237-123

O-RING
(Superseded to 237-101)

$4.49

$

In Stock, only 1 left!

0

21

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 1 left!

0

22

Toro 115-9793

BREATHER

$77.99

$

Usually ships in 3-6 days

0

23

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

24

Toro 109-2678

FILTER HEAD ASM

$205.99

$

Usually ships in 3-6 days

0

24:2

Toro 63-8290

VENT-AIR

$23.99

$

In Stock, only 1 left!

0

24:3

Toro 63-8300

ELEMENT-SPIN ON

$31.99

$

Usually ships in 3-6 days

0

24:3:1

Toro 63-8310

VALVE-DRAIN

$16.99

$

Usually ships in 3-6 days

0

25

Toro 353-781

FITTING-ELBOW

$29.99

$

Usually ships in 3-6 days

0

26

Toro 112-2620

BAR-REFERENCE

$64.99

$

Usually ships in 3-6 days

0

27

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

28

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

29

Toro 130-1036-01

PLATE-COVER, ACCESS

$21.99

$

Usually ships in 3-6 days

0

30

Toro 83-1470

WASHER-NEOPRENE

$3.49

$

Usually ships in 3-6 days

0

31

Toro 130-5315

ARM-LOCKING

$88.99

$

Usually ships in 3-6 days

0

31:2

Toro 115-4858

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

32

Toro 108-0094

PIN-COTTERLESS

$5.49

$

Usually ships in 3-6 days

0

33

Toro 133-0223

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

34

Toro 133-0224

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

35

Toro 133-1636

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

37

Toro 132-8416

FOAM-HEAT SHIELD

$33.99

$

Usually ships in 3-6 days

0

38

Toro 132-8417

FOAM-HEAT SHIELD

$11.99

$

Usually ships in 3-6 days

0

40

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

41

Toro 92-6064

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

42

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

43

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
