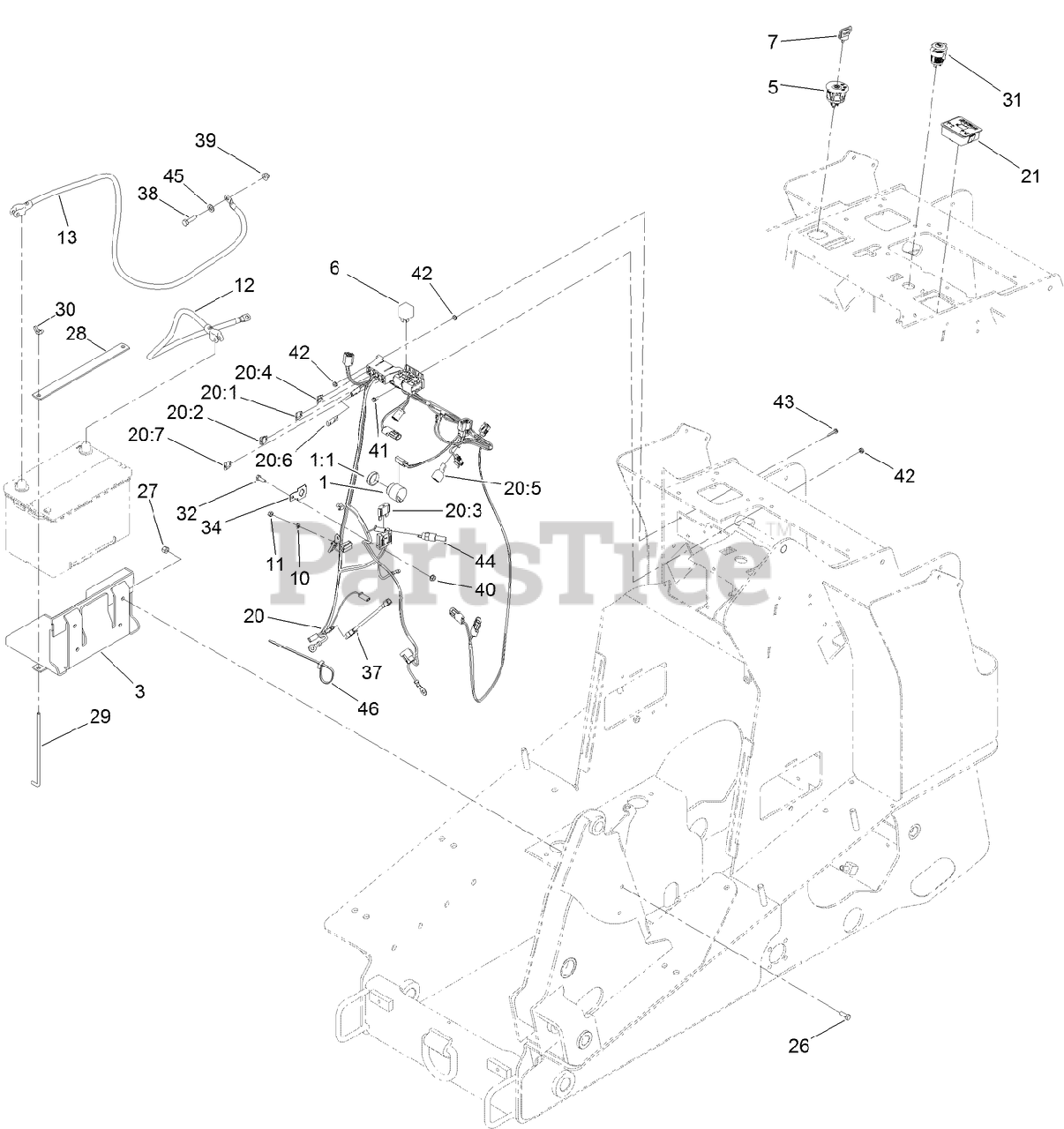

22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 316000001 - 316000163) (2016) ELECTRICAL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

3

Toro 130-5236-03

TRAY-BATTERY

$198.99

$

Usually ships in 3-6 days

0

5

Toro 110-6764

SWITCH-IGNITION

$28.99

$

In Stock, only 3 left!

0

6

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

7

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

10

Toro 43-5930

WASHER-LOCK, SPRING

$1.49

$

Usually ships in 3-6 days

0

11

Toro 43-2830

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 105-0114

CABLE-BATTERY, POSITIVE

$102.99

$

Usually ships in 3-6 days

0

13

Toro 104-0761

CABLE-NEGATIVE

$76.99

$

Usually ships in 3-6 days

0

20

Toro 127-9605

HARNESS-WIRE

$543.99

$

Usually ships in 3-6 days

0

20:1

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

20:2

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

20:3

Toro 94-8002

FUSE-BLADE, 50 AMP

$27.99

$

Usually ships in 3-6 days

0

20:4

Toro 114241

FUSE-BLADE, 7.5 AMP

$11.99

$

Usually ships in 3-6 days

0

20:5

Toro 103-3895

DIODE

$64.99

$

In Stock, only 4 left!

0

20:6

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

20:7

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

21

Toro 130-7635

MODULE-HOUR METER

$152.99

$

Usually ships in 3-6 days

0

26

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 131-9177-03

STRAP-HOLD DOWN, BATTERY
(Superseded to 136-5755-03)

$9.99

$

Usually ships in 3-6 days

0

29

Toro 130-5220

ROD-HOLD DOWN, BATTERY

$13.99

$

Usually ships in 3-6 days

0

30

Toro 1-803038

Wingnut

$1.49

$

Usually ships in 3-6 days

0

31

Toro 109-9376

RECEPTACLE-12V

$51.99

$

Usually ships in 3-6 days

0

32

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 114-5502

CLIP-FUSE

$16.99

$

Usually ships in 3-6 days

0

37

Toro 112-2463

HARNESS-LINK, FUSIBLE

$22.99

$

Usually ships in 3-6 days

0

38

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

41

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

42

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

43

Toro 117-1701

SCREW-HWHTF

$6.49

$

Usually ships in 3-6 days

0

44

Toro 98-3825

SWITCH-TEMP

$218.99

$

Usually ships in 3-6 days

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
