22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) TANDEM PUMP AND GEAR PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

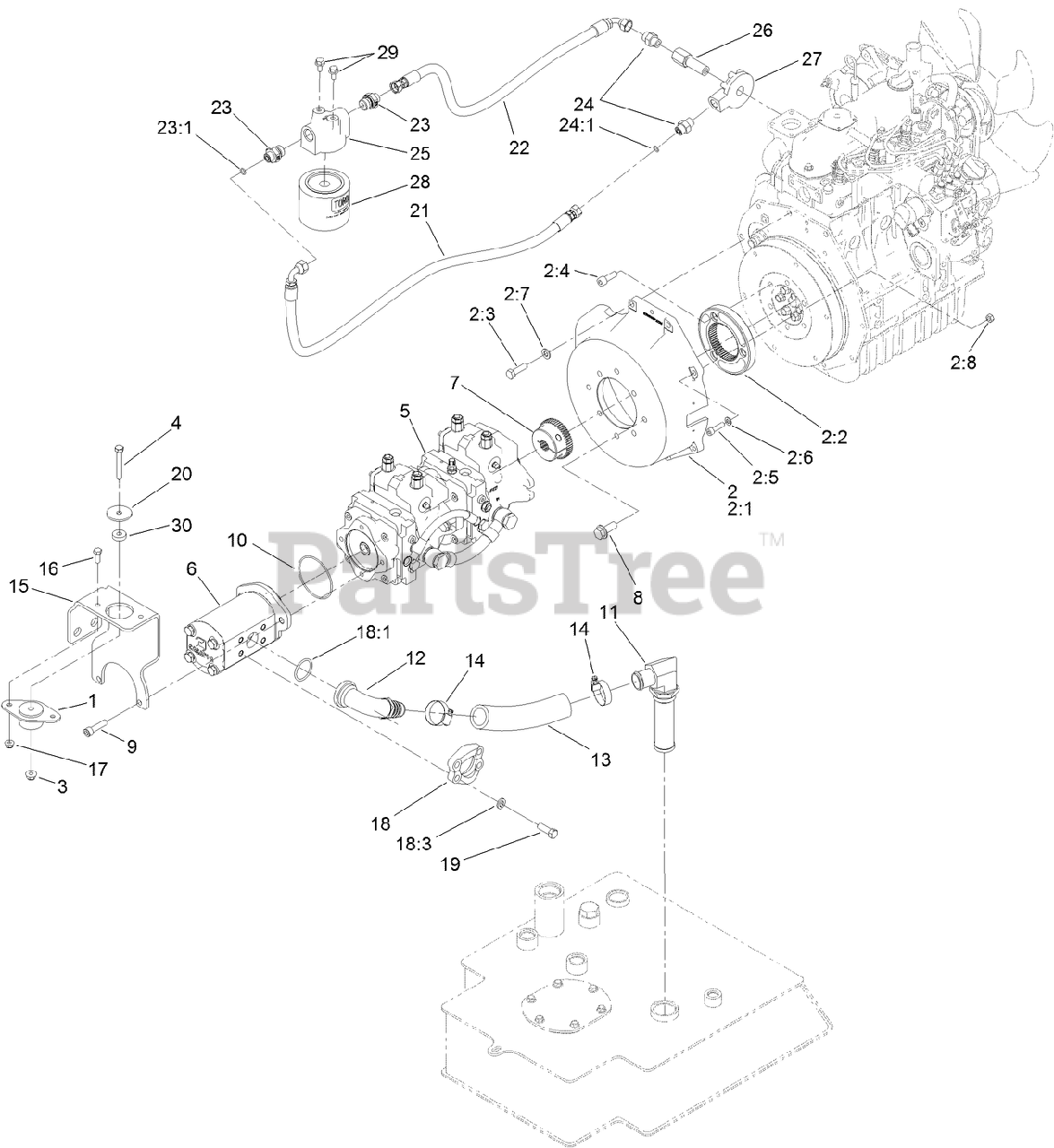

TANDEM PUMP AND GEAR PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 121-9076

MOUNT-ENGINE

$45.99

$

In Stock, Qty 5

0

2

Toro 130-7728

MOUNT-PUMP
(Superseded to 138-0822)

$772.99

$

Usually ships in 3-6 days

0

2:1

Toro 130-7724

HOUSING-PUMP MOUNT

$655.99

$

Usually ships in 3-6 days

0

2:2

Toro 125-1179

FLANGE-COUPLER

$138.99

$

Usually ships in 3-6 days

0

2:3

Toro 56-2140

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

2:4

Toro 108-1420

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

2:5

Toro 94-3559

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0

2:6

Toro 115-7370

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

2:7

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2:8

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

5

Toro 121-4593

PUMP-TANDEM
(Superseded to 138-0767)

$8959.99

$

Usually ships in 3-6 days

0

6

Toro 130-7731

PUMP-GEAR

$1613.99

$

Usually ships in 3-6 days

0

7

Toro 130-7725

HUB-PUMP

$155.99

$

Usually ships in 3-6 days

0

8

Toro 3234-38

SCREW-HHF

$5.99

$

In Stock, only 3 left!

0

9

Toro 09718

SCREW-SH

$

$

Currently unavailable

10

Toro 237-161

O-RING

$8.99

$

In Stock, only 2 left!

0

11

Toro 130-7582

STRAINER-SUCTION
(Superseded to 145-0622)

$156.99

$

Usually ships in 3-6 days

0

12

Toro 112-7374

FITTING

$210.99

$

Usually ships in 3-6 days

0

13

Toro 130-7561

HOSE-SUCTION

$51.99

$

Usually ships in 3-6 days

0

14

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

15

Toro 125-3736-01

PLATE-SUPPORT
(Superseded to 125-3736-03)

$88.99

$

Usually ships in 3-6 days

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 114-0090

FLANGE KIT

$102.99

$

Usually ships in 3-6 days

0

18:1

Toro 115-5420

O-RING

$14.99

$

In Stock, only 1 left!

0

18:3

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18:2

Toro 324-6

SCREW-HH

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

19

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

21

Toro 130-7717

HOSE-HYD

$90.99

$

In Stock, only 1 left!

0

22

Toro 130-7719

HOSE-HYD

$85.99

$

Usually ships in 3-6 days

0

23

Toro 130-7715

FITTING-HYD
(Superseded to 136-5838)

$65.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

24

Toro 130-7716

FITTING-HYD

$14.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

25

Toro 130-7588

BASE-FILTER

$175.99

$

Usually ships in 3-6 days

0

26

Toro 130-7587

PIPE-JOINT

$53.99

$

Usually ships in 3-6 days

0

27

Toro 130-7586

BASE-FILTER

$175.99

$

Usually ships in 3-6 days

0

28

Toro 104-5169

FILTER-OIL

$18.99

$

In Stock, only 2 left!

0

29

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

30

Toro 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0
