22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) ENGINE MOUNT AND MUFFLER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

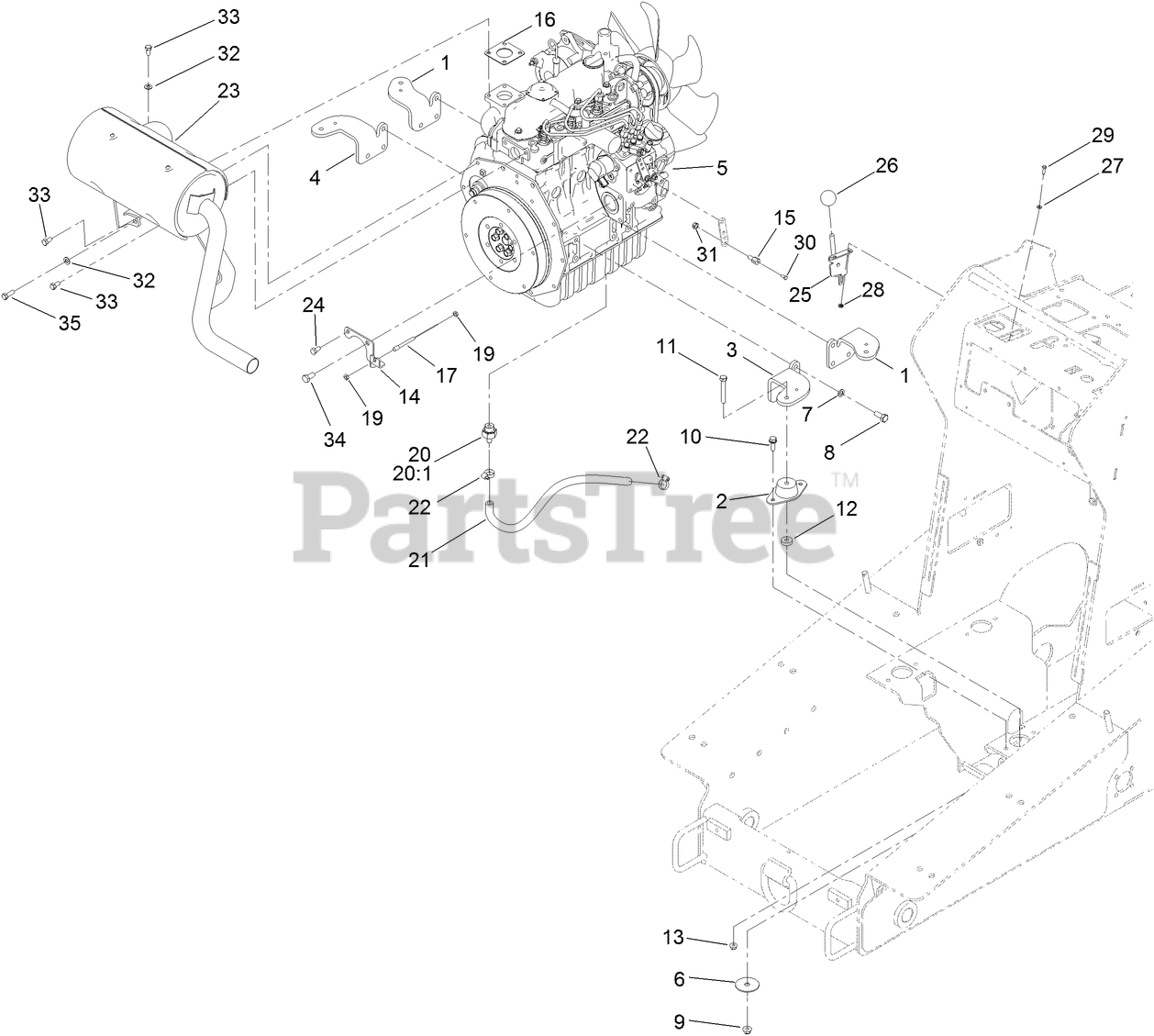

ENGINE MOUNT AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 115-8066-03

MOUNT-ENGINE
(Superseded to 115-8066-0P)

$60.99

$

In Stock, only 2 left!

0

2

Toro 121-9076

MOUNT-ENGINE

$45.99

$

In Stock, Qty 5

0

3

Toro 115-8068-03

MOUNT-ENGINE LH
(Superseded to 115-8068-0P)

$38.99

$

In Stock, only 2 left!

0

4

Toro 115-8063-03

MOUNT-ENGINE, RH
(Superseded to 115-8063-0P)

$37.99

$

In Stock, only 1 left!

0

5

Toro 130-7727

ENGINE ASM
(Superseded to 138-6911)

$12198.99

$

Usually ships in 3-6 days

0

6

Toro 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

7

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

8

Toro 43-0090

SCREW-HH

$9.99

$

In Stock, only 3 left!

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

11

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 13

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 130-1148-03

BRACKET-THROTTLE

$17.99

$

Usually ships in 3-6 days

0

15

Toro 98-9311

SWIVEL-THROTTLE

$40.99

$

Usually ships in 3-6 days

0

16

Toro 99-8343

GASKET-MUFFLER

$16.99

$

In Stock, Qty 7

0

17

Toro 130-7743

CABLE-THROTTLE

$41.99

$

In Stock, only 1 left!

0

19

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

20

Toro 114-8587

FITTING-HOSE

$84.99

$

Usually ships in 3-6 days

0

20:1

Toro 98-9399

GASKET

$3.49

$

In Stock, only 1 left!

0

21

Toro 92-7424

HOSE-OVERFLOW, RADIATOR

$29.99

$

Usually ships in 3-6 days

0

22

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 130-7732

MUFFLER-DIESEL
(Superseded to 138-0753)

$552.99

$

In Stock, only 1 left!

0

24

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

25

Toro 108-9730

LEVER-CONTROL

$42.99

$

In Stock, only 1 left!

0

26

$13.99

$

In Stock, Qty 6

0

27

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

29

$0.99

$

In Stock, Qty 20+

0

30

Toro 25-8640

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

31

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

34

Toro 63-7790

SCREW-CAP

$3.99

$

Usually ships in 3-6 days

0

35

$6.99

$

Usually ships in 3-6 days

0
