22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 407960000 - 409359999) Principal Hydraulic Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

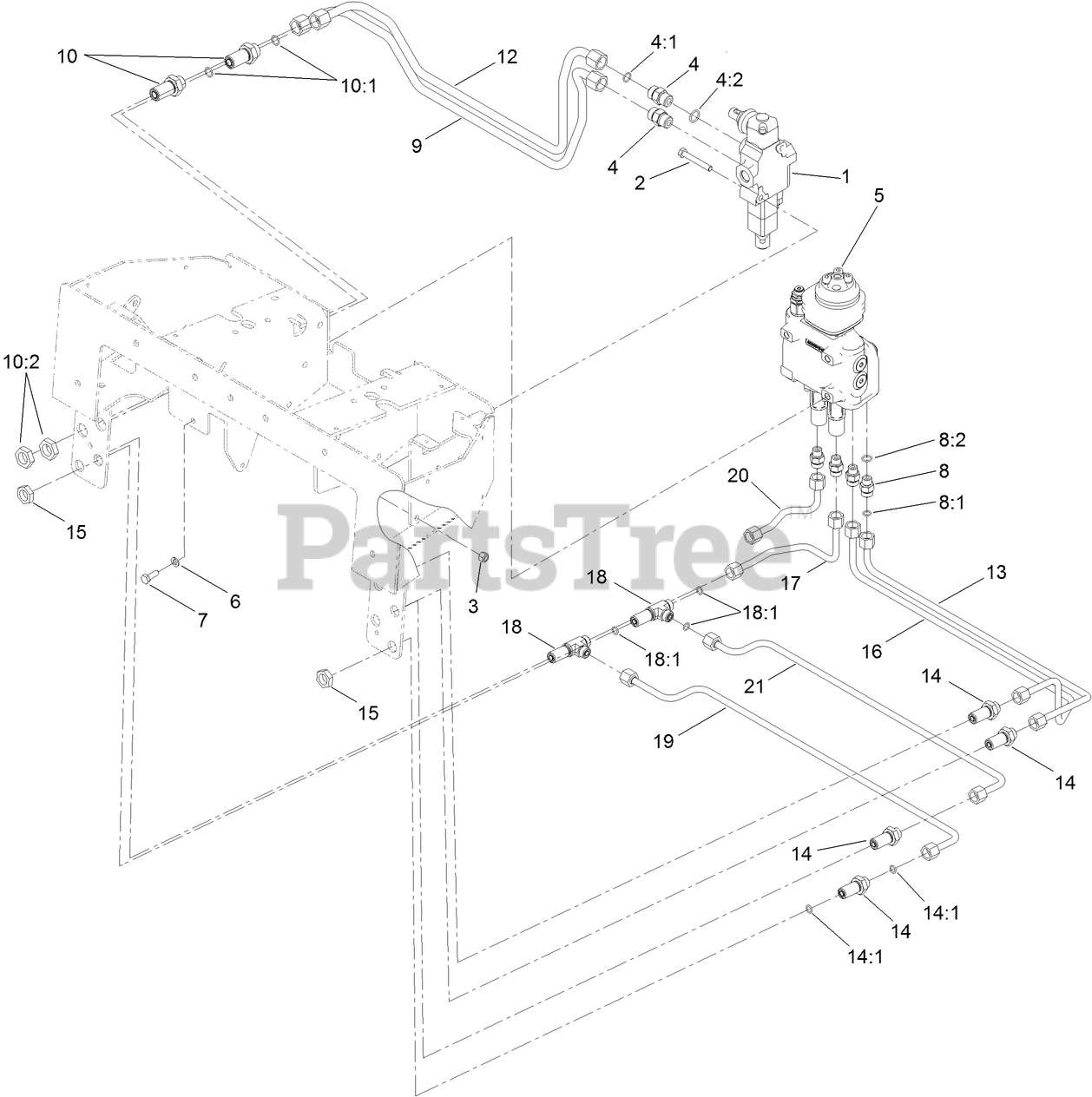

Principal Hydraulic Assembly Parts Diagram

1

Toro 104-2831

1 SPOOL VALVE ASM

$1836.99

$

Usually ships in 3-6 days

0

2

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

4:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

4:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

5

Toro 144-7354

2 SPOOL VALVE ASM

$2412.99

$

Usually ships in 3-6 days

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

8:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

9

Toro 106-9310

TUBE-HYD

$159.99

$

Usually ships in 3-6 days

0

10

Toro 340-161

FITTING-BULKHEAD

$123.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

10:2

Toro 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

12

Toro 106-9311

TUBE-HYD

$156.99

$

Usually ships in 3-6 days

0

13

Toro 106-9314

TUBE-HYD

$133.99

$

In Stock, only 1 left!

0

14

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$22.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

15

Toro 340-70

NUT-LOCK

$2.99

$

In Stock, only 1 left!

0

16

Toro 106-9312

TUBE-HYD

$143.99

$

Usually ships in 3-6 days

0

17

Toro 106-9313

TUBE-HYD

$116.99

$

Usually ships in 3-6 days

0

18

Toro 340-68

FITTING-TEE, BULKHEAD

$54.99

$

In Stock, only 2 left!

0

18:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

19

Toro 106-9316

TUBE-HYD

$139.99

$

Usually ships in 3-6 days

0

20

Toro 106-9315

TUBE-HYD

$106.99

$

Usually ships in 3-6 days

0

21

Toro 106-9317

TUBE-HYD

$134.99

$

Usually ships in 3-6 days

0
