22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 404500000 - 404784999) Traction Hydraulic Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

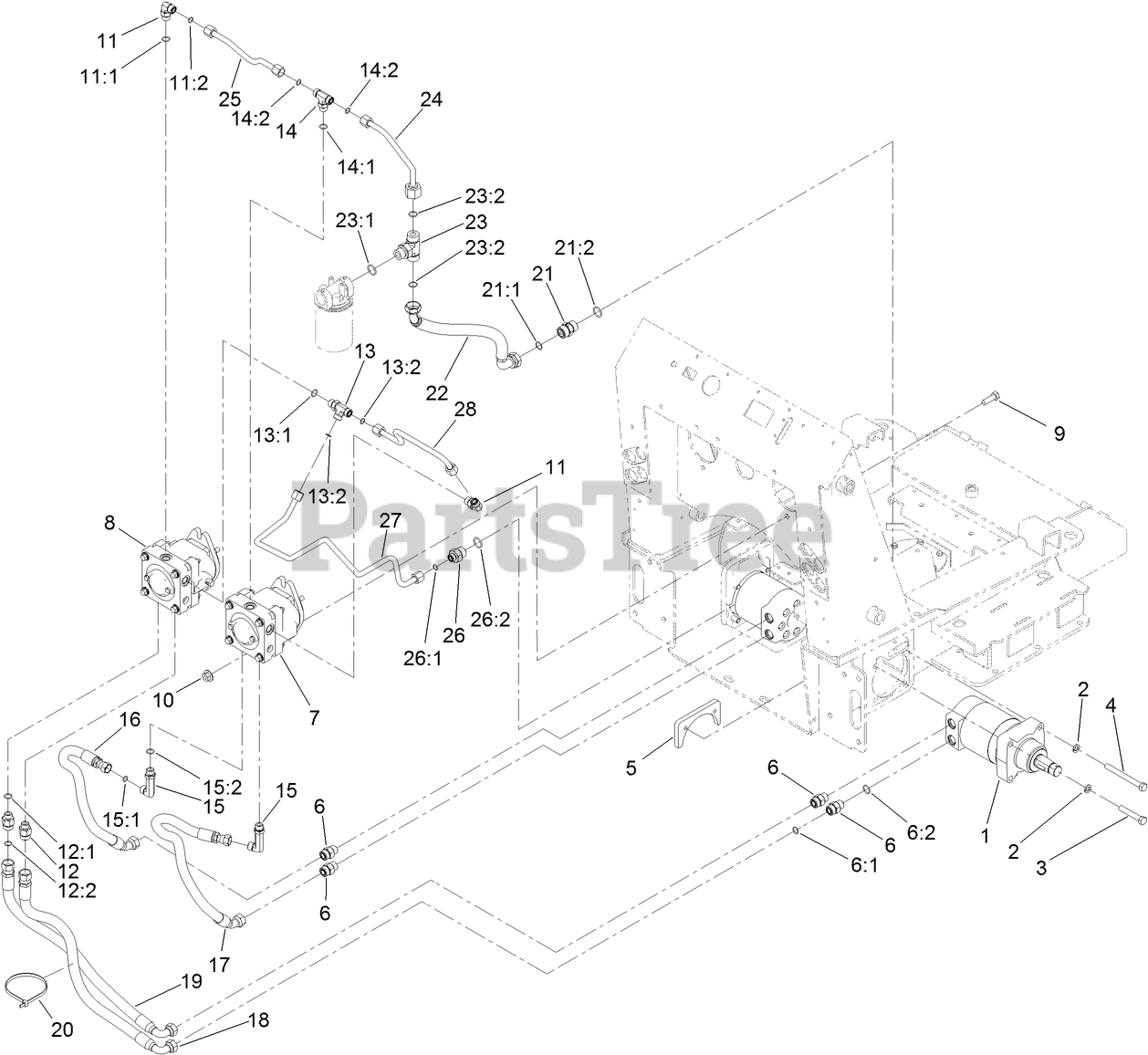

Traction Hydraulic Assembly Parts Diagram

  • Title

1

Toro 114-1756

HYD MOTOR ASM

$2938.99

$

Usually ships in 3-6 days

0

2

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

3

Toro 115-4845

SCREW-HH, TAP

$4.99

$

Usually ships in 3-6 days

0

4

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

5

Toro 98-2763-03

PLATE-MOUNTING

$113.99

$

Usually ships in 3-6 days

0

6

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

6:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

6:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

7

Toro 106-9590

PUMP-HYD, RH

$2305.99

$

Usually ships in 3-6 days

0

8

Toro 106-9591

PUMP-HYD, LH

$2305.99

$

In Stock, only 1 left!

0

9

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

10

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

11

Toro 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

11:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

11:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

12

Toro 340-155

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

12:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

13

Toro 340-109

FITTING-TEE

$72.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

13:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

14

Toro 340-157

FITTING-HYD, TEE

$67.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

14:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

15

Toro 99-6160

FITTING-ELBOW 90 LONG

$150.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

15:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

16

Toro 107-3632

HOSE-HYD

$190.99

$

Usually ships in 3-6 days

0

17

Toro 107-3631

HOSE-HYD

$183.99

$

Usually ships in 3-6 days

0

18

Toro 115-4827

HOSE-HYD

$263.99

$

Usually ships in 3-6 days

0

19

Toro 115-4826

HOSE-HYD

$263.99

$

Usually ships in 3-6 days

0

20

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 108-6306

VALVE-CHECK, HYD

$222.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

21:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

22

Toro 112-2562

HOSE-HYD

$303.99

$

Usually ships in 3-6 days

0

23

Toro 100-4836

FITTING-TEE

$254.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

23:2

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

24

Toro 107-3634

TUBE-HYD

$120.99

$

Usually ships in 3-6 days

0

25

Toro 106-9330

TUBE-HYD

$111.99

$

Usually ships in 3-6 days

0

26

Toro 100-4240

FITTING-STR

$22.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

26:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

27

Toro 107-3633

TUBE-HYD

$157.99

$

Usually ships in 3-6 days

0

28

Toro 98-0200

TUBE-HYD

$309.99

$

Usually ships in 3-6 days

0
