22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 404500000 - 404784999) Loader Arm Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

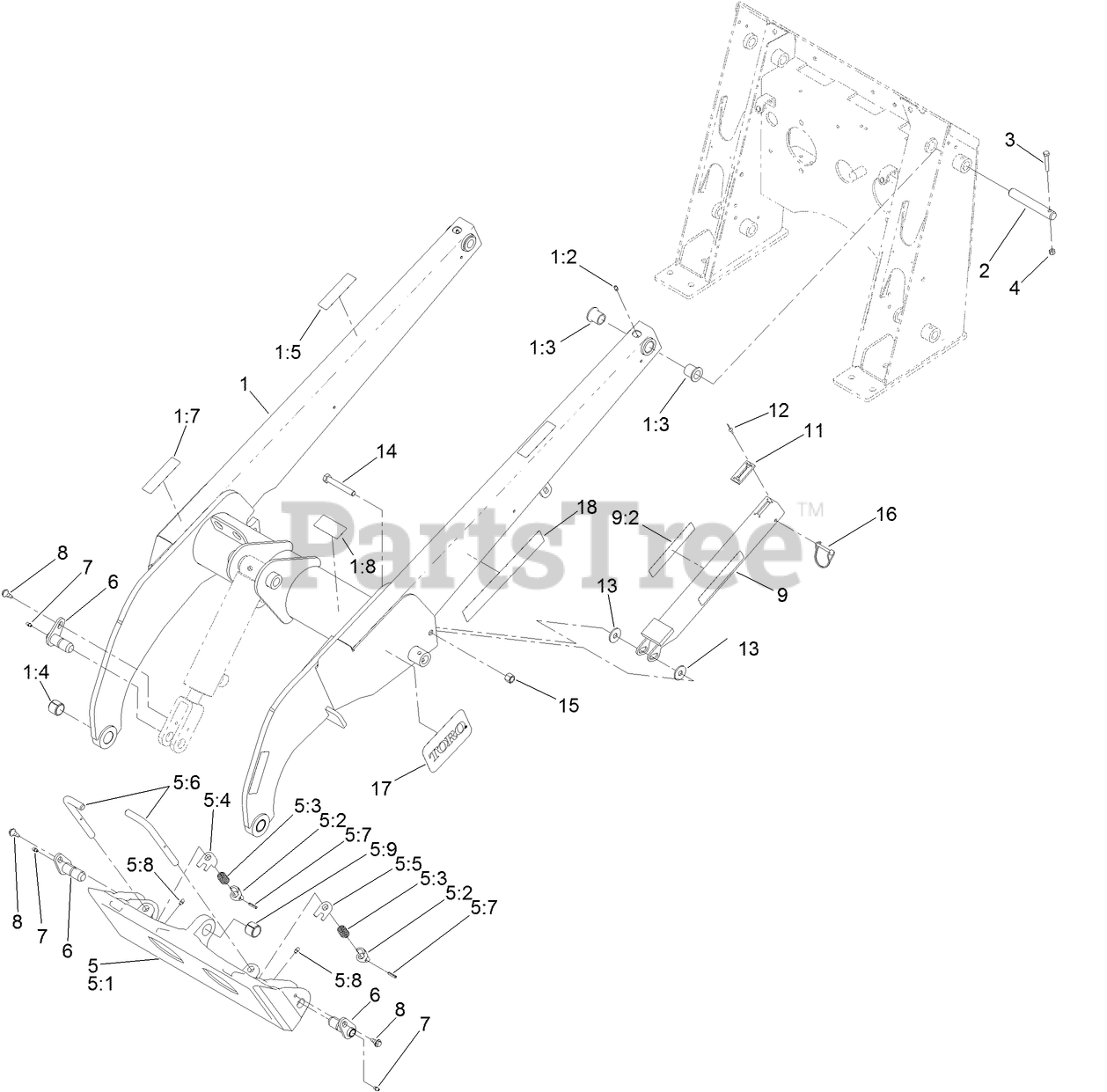

Loader Arm Assembly Parts Diagram

  • Title
1

Toro 108-4638

LOADER ARM ASM

$4692.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:3

Toro 95-3577

BUSHING

$14.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

1:5

Toro 100-8821

DECAL-WARNING, PINCH

$10.99

$

In Stock, only 4 left!

0

1:7

Toro 115-4855

DECAL-CAUTION

$10.99

$

Usually ships in 3-6 days

0

1:8

Toro 100-8822

DECAL-NO RIDER

$41.99

$

Usually ships in 3-6 days

0

2

Toro 104-2849

PIN-LOCKING

$69.99

$

Usually ships in 3-6 days

0

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 132-8418

QUICK ATTACH ASM

$1443.99

$

Usually ships in 3-6 days

0

5:1

Toro 130-7708-03

MOUNT-QTACH

$1267.99

$

Usually ships in 3-6 days

0

5:2

$72.99

$

In Stock, only 1 left!

0

5:3

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 1 left!

0

5:4

Toro 104-5909

STOP-RH

$58.99

$

In Stock, only 1 left!

0

5:5

Toro 104-5903

STOP-LH

$58.99

$

Usually ships in 3-6 days

0

5:6

Toro 132-8419

PIN-LOCKING

$33.99

$

In Stock, only 3 left!

0

5:7

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, Qty 7

0

5:8

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:9

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

6

Toro 112-2609

PIN-PIVOT

$108.99

$

In Stock, only 2 left!

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

9

Toro 108-4639

LOCKING ARM ASM

$379.99

$

Usually ships in 3-6 days

0

9:2

Toro 115-4858

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

11

Toro 98-0083

STOP-RUBBER

$20.99

$

Usually ships in 3-6 days

0

12

Toro 95-1687

RIVET

$0.99

$

Usually ships in 3-6 days

0

13

Toro 68-1440

WASHER-RUBBER

$8.99

$

Usually ships in 3-6 days

0

14

Toro 325-14

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 100-1663

PIN-HITCH

$15.99

$

In Stock, Qty 6

0

17

$40.99

$

In Stock, Qty 8

0

18

$31.99

$

Usually ships in 3-6 days

0
