22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 401800000 - 404499999) Main Frame and Fuel Tank Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

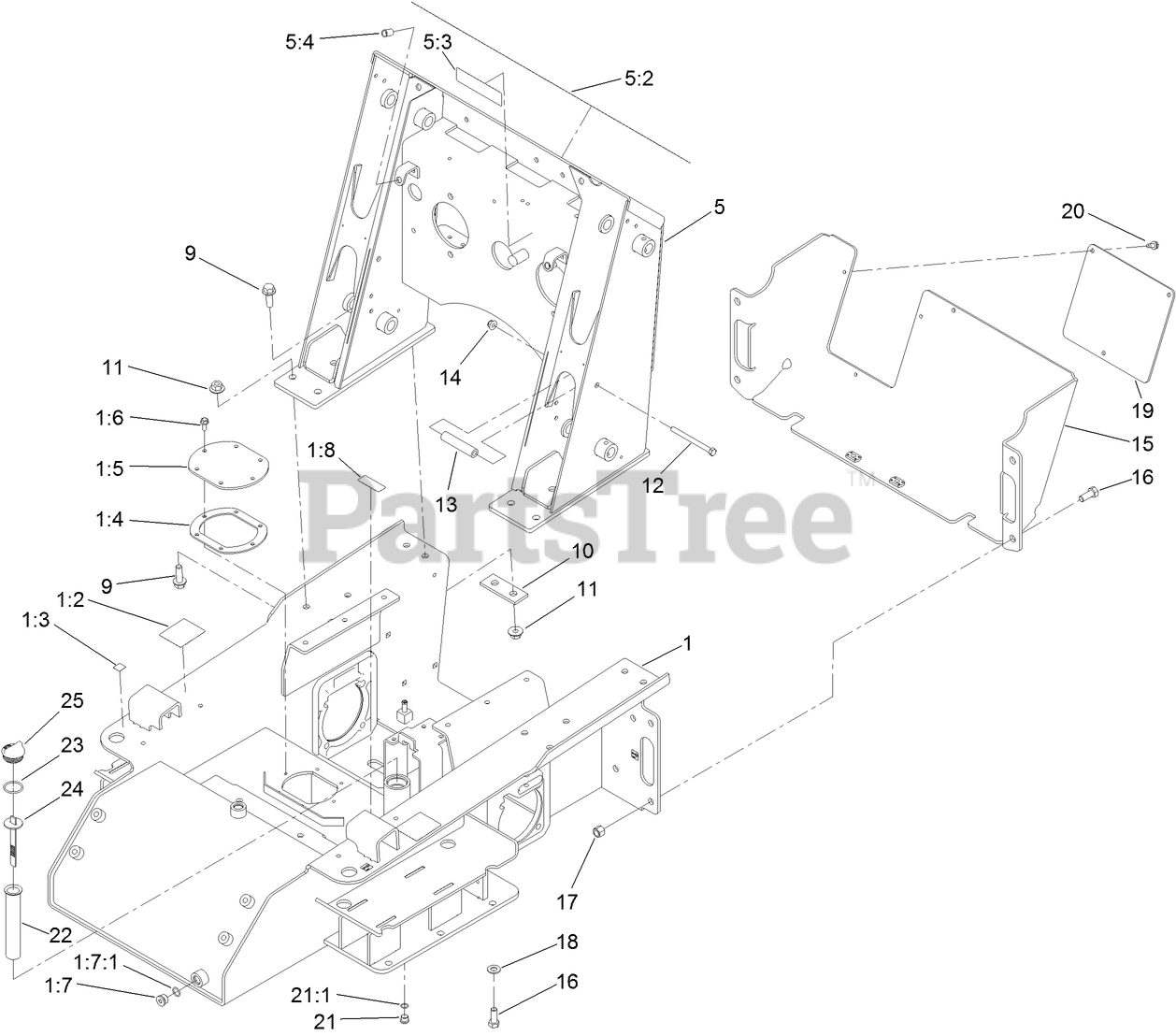

Main Frame and Fuel Tank Assembly Parts Diagram

  • Title
1

Toro 115-4832

CHASSIS ASM

$4440.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:4

Toro 107-3557

GASKET-COVER, ACCESS

$58.99

$

Usually ships in 3-6 days

0

1:5

Toro 108-6297-01

COVER-TANK

$39.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, only 3 left!

0

1:7

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

1:8

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

5

Toro 117-9987

LOADER TOWER ASM

$3269.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-9905

DECAL-PANEL, CONTROL
(Superseded to 138-0800)

$62.99

$

Usually ships in 3-6 days

0

5:3

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

5:4

Toro 32148-8

NUT-CLINCH

$3.49

$

Usually ships in 3-6 days

0

9

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

10

Toro 100-6123-03

PLATE-STIFFENER

$11.99

$

Usually ships in 3-6 days

0

11

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

12

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

13

Toro 100-1271

TUBE-SPACER

$24.99

$

Usually ships in 3-6 days

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 114-8911-01

COVER-REAR

$676.99

$

Usually ships in 3-6 days

0

16

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

17

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 108-6267-01

PANEL-REAR

$75.99

$

Usually ships in 3-6 days

0

20

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

21

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

22

Toro 61-2790

FILTER-SCREEN

$

$

Not available

23

Toro 237-123

O-RING
(Superseded to 237-101)

$4.49

$

In Stock, only 1 left!

0

24

Toro 100-2097

DIPSTICK-OIL

$63.99

$

Usually ships in 3-6 days

0

25

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 1 left!

0
