22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 315000001 - 315999999) (2015) MAIN FRAME AND FUEL TANK ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

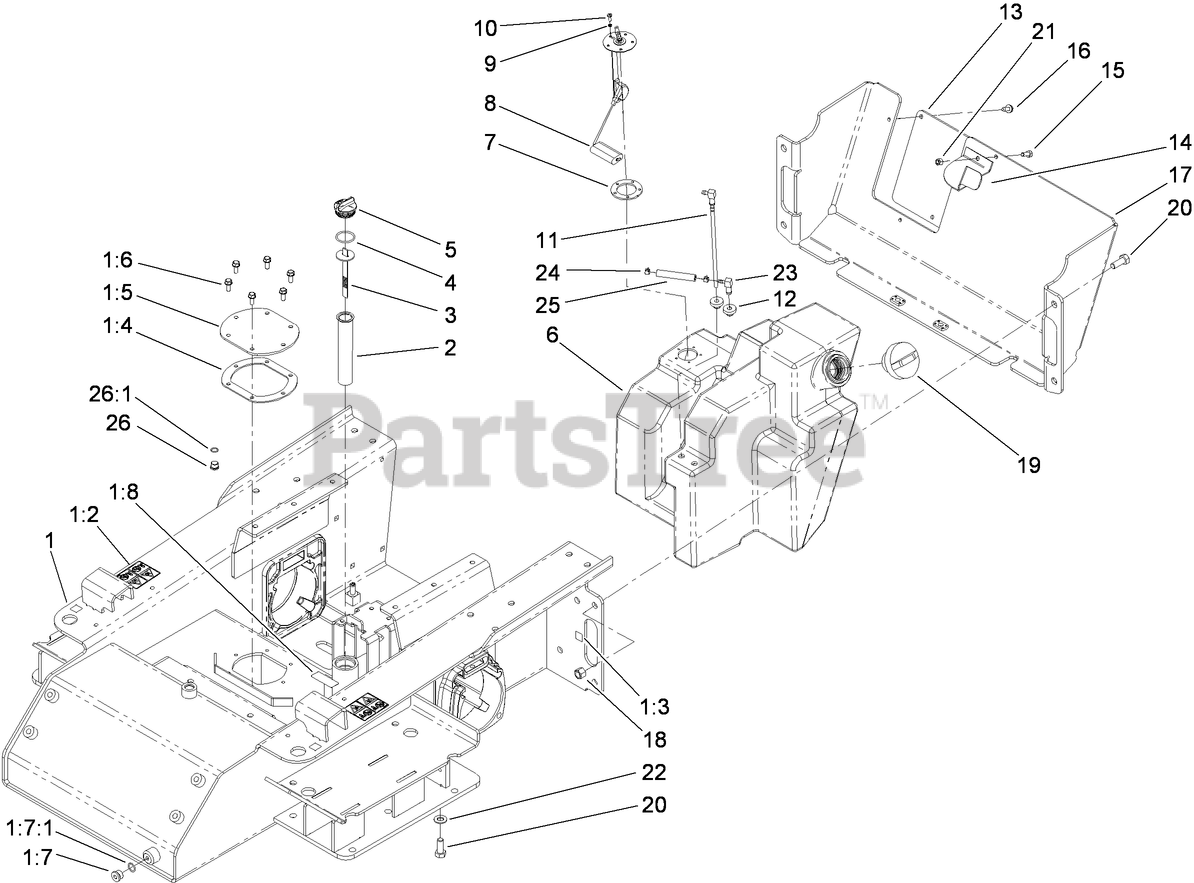

MAIN FRAME AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 115-4832

CHASSIS ASM

$4440.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:4

Toro 107-3557

GASKET-COVER, ACCESS

$58.99

$

Usually ships in 3-6 days

0

1:5

Toro 108-6297-01

COVER-TANK

$39.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-9940

SCREW

$2.49

$

In Stock, only 3 left!

0

1:7

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

1:8

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

2

Toro 61-2790

FILTER-SCREEN

$

$

Not available

3

Toro 100-2097

DIPSTICK-OIL

$63.99

$

Usually ships in 3-6 days

0

4

Toro 237-123

O-RING
(Superseded to 237-101)

$4.49

$

In Stock, only 1 left!

0

5

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 4 left!

0

6

Toro 115-4800

TANK-FUEL

$560.99

$

Usually ships in 3-6 days

0

7

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 2 left!

0

8

Toro 120-5391

SENDER-FUEL

$278.99

$

Usually ships in 3-6 days

0

9

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

10

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 98-0185

PIPE-STAND

$40.99

$

Usually ships in 3-6 days

0

12

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

13

Toro 108-6267-01

PANEL-REAR

$75.99

$

Usually ships in 3-6 days

0

14

Toro 108-6273-01

CLAMP-TANK, FUEL
(Superseded to 108-6273-03)

$55.99

$

Usually ships in 3-6 days

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

17

Toro 114-8911-01

COVER-REAR

$676.99

$

Usually ships in 3-6 days

0

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 107-2172

CAP-DIESEL

$47.99

$

Usually ships in 3-6 days

0

20

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 104-5228

FITTING-ELBOW, 90 DEG

$18.99

$

Usually ships in 3-6 days

0

24

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

25

Toro 110-3958

HOSE-FUEL

$27.99

$

Usually ships in 3-6 days

0

26

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0
