22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 313000001 - 313999999) (2013) TRACTION HYDRAULIC ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

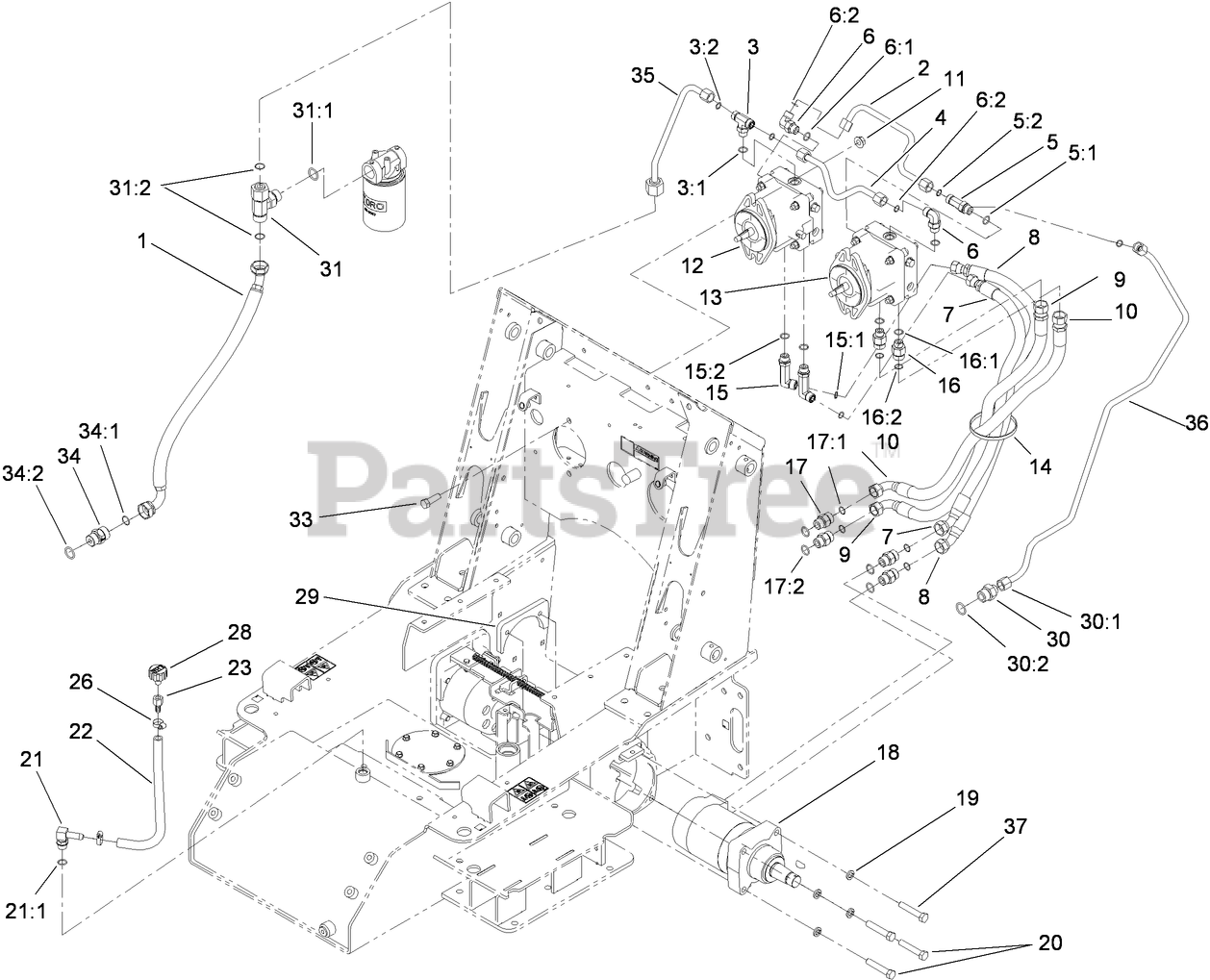

TRACTION HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 112-2562

HYD HOSE ASM

$303.99

$

Usually ships in 3-6 days

0

2

Toro 98-0200

TUBE-HYD

$309.99

$

Usually ships in 3-6 days

0

3

Toro 340-157

FITTING-HYD, TEE

$67.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

3:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

4

Toro 106-9330

TUBE-HYD

$111.99

$

Usually ships in 3-6 days

0

5

Toro 340-109

FITTING-TEE

$72.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

5:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

6

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

6:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

7

Toro 107-3631

HYD HOSE ASM

$183.99

$

Usually ships in 3-6 days

0

8

Toro 107-3632

HYD HOSE ASM

$190.99

$

Usually ships in 3-6 days

0

9

Toro 115-4827

HYD HOSE ASM

$263.99

$

Usually ships in 3-6 days

0

10

Toro 115-4826

HOSE-HYD

$263.99

$

Usually ships in 3-6 days

0

11

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

12

Toro 106-9590

PUMP-HYD, RH

$2305.99

$

Usually ships in 3-6 days

0

13

Toro 106-9591

PUMP-HYD, LH

$2305.99

$

In Stock, only 1 left!

0

14

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

15

Toro 99-6160

FITTING-ELBOW, 90 DEG

$150.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

15:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

16

Toro 340-155

FITTING-STR

$30.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

16:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

17

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

17:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

17:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

18

Toro 114-1756

HYD MOTOR ASM

$2938.99

$

Usually ships in 3-6 days

0

19

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-4845

SCREW-HH, TAP

$4.99

$

Usually ships in 3-6 days

0

21

Toro 354-134

FITTING-HYD, 90 DEG

$70.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

22

Toro 114-8599

HOSE-DRAIN, ENGINE OIL

$20.99

$

Usually ships in 3-6 days

0

23

Toro 354-94

FITTING-FEMALE, BARBED

$13.99

$

Usually ships in 3-6 days

0

26

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

28

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

29

Toro 98-2763-03

PLATE-MOUNTING

$113.99

$

Usually ships in 3-6 days

0

30

Toro 100-4240

FITTING-STR

$22.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

30:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

31

Toro 100-4836

FITTING-TEE

$254.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

31:2

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

33

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

34

Toro 108-6306

VALVE-CHECK, HYD

$222.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

34:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

35

Toro 107-3634

HYD TUBE ASM

$120.99

$

Usually ships in 3-6 days

0

36

Toro 107-3633

HYD TUBE ASM

$157.99

$

Usually ships in 3-6 days

0

37

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0
