22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 310000001 - 310999999) (2010) TRACTION CONTROL ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

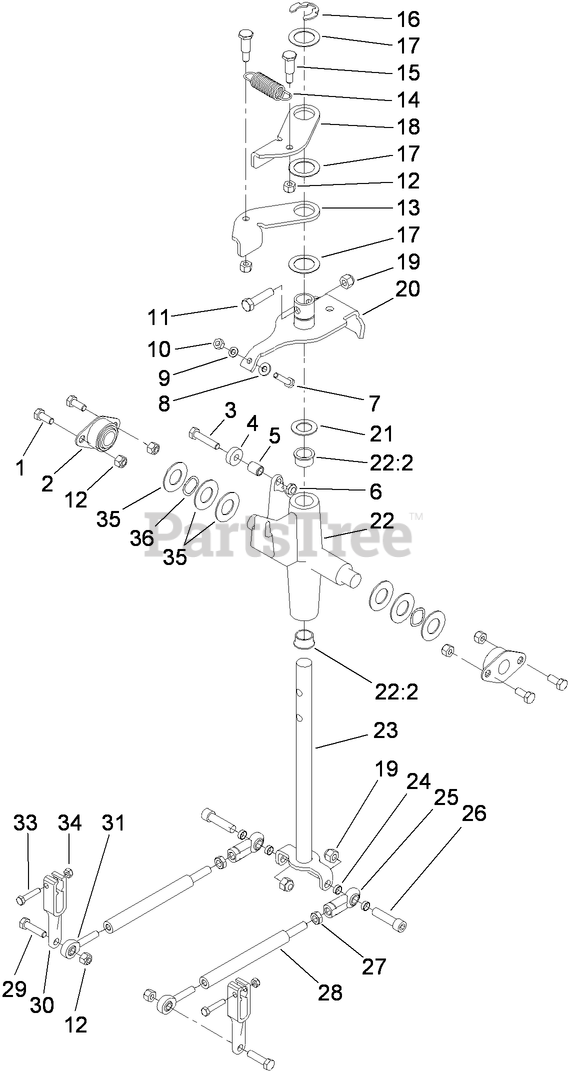

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-2970

BUSHING

$28.99

$

Usually ships in 3-6 days

0

3

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

5

Toro 88-7450

SPACER-LEVER, CONTROL

$13.99

$

Usually ships in 3-6 days

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

7

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 98-8407

LEVER-RETURN, RH

$76.99

$

Usually ships in 3-6 days

0

14

Toro 108-4724

SPRING-EXTENSION

$13.99

$

In Stock, only 1 left!

0

15

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 2 left!

0

16

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

17

Toro 108-9743

WASHER-PLAIN

$4.49

$

Usually ships in 3-6 days

0

18

Toro 98-8408

LEVER-RETURN, LH

$87.99

$

Usually ships in 3-6 days

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 112-2783

LEVER-PIVOT

$170.99

$

Usually ships in 3-6 days

0

21

Toro 257-8

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

22

Toro 106-5737

CONTROL SUPPORT ASM

$234.99

$

Usually ships in 3-6 days

0

22:2

Toro 256-252

BEARING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

23

Toro 117-6335

ROD-DRIVE

$81.99

$

Usually ships in 3-6 days

0

24

Toro 117-9915

SPACER

$8.99

$

Usually ships in 3-6 days

0

25

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

26

Toro 3274-2

SCREW-HSH

$3.99

$

Usually ships in 3-6 days

0

27

Toro 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

28

Toro 117-9900

ROD-LINKAGE

$38.99

$

Usually ships in 3-6 days

0

29

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

30

Toro 106-5739

ARM-CONTROL, PUMP
(Superseded to 117-3964-03)

$58.99

$

Usually ships in 3-6 days

0

31

Toro 117-9969

BEARING-ROD END, RH

$22.99

$

Usually ships in 3-6 days

0

33

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

34

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

35

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

36

Toro 95-3703

WASHER-SPRING, WAVE

$4.49

$

Usually ships in 3-6 days

0
