22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) WATER PUMP AND WATER PIPE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

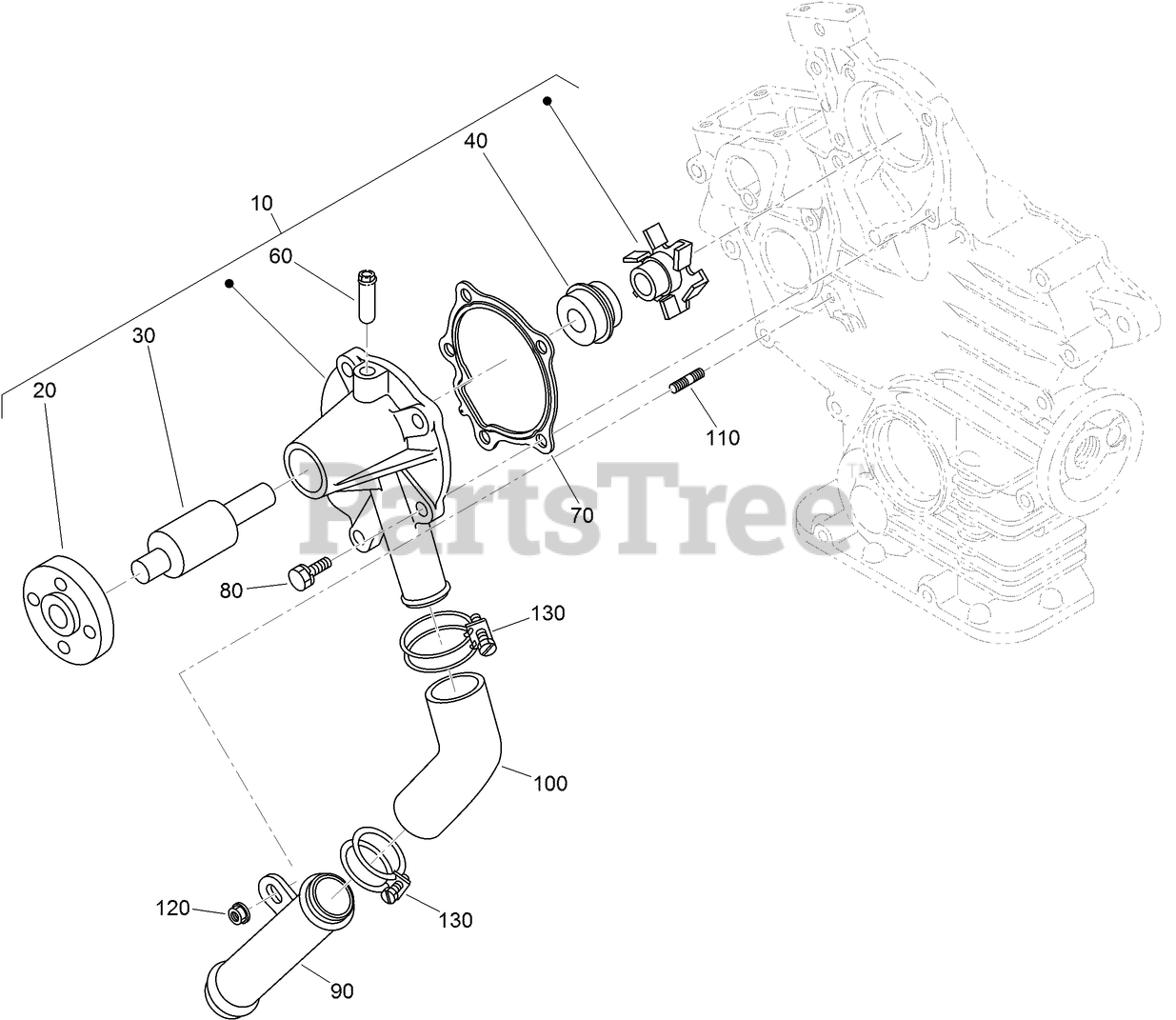

WATER PUMP AND WATER PIPE ASSEMBLY Parts Diagram

  • Title
10

Toro 110-3824

WATER PUMP ASM

$594.99

$

Usually ships in 3-6 days

0

20

Toro 125-9081

FLANGE-PUMP, WATER

$54.99

$

Usually ships in 3-6 days

0

30

Toro 100-1934

BEARING-BALL

$96.99

$

Usually ships in 3-6 days

0

40

Toro 99-3518

WATER PUMP SEAL ASM

$73.99

$

Usually ships in 3-6 days

0

60

Toro 100-1932

PIPE-RETURN, WATER

$12.99

$

In Stock, only 1 left!

0

70

Toro 117-0330

GASKET-PUMP, WATER

$17.99

$

In Stock, only 1 left!

0

80

$2.49

$

Usually ships in 3-6 days

0

90

Toro 100-1918

PIPE-WATER

$55.99

$

Usually ships in 3-6 days

0

100

Toro 110-3827

PIPE-WATER

$18.99

$

In Stock, only 1 left!

0

110

$4.49

$

Usually ships in 3-6 days

0

120

Toro 100-2203

NUT-FLANGE

$1.99

$

Usually ships in 3-6 days

0

130

Toro 110-3828

BAND-PIPE

$12.99

$

Usually ships in 3-6 days

0
