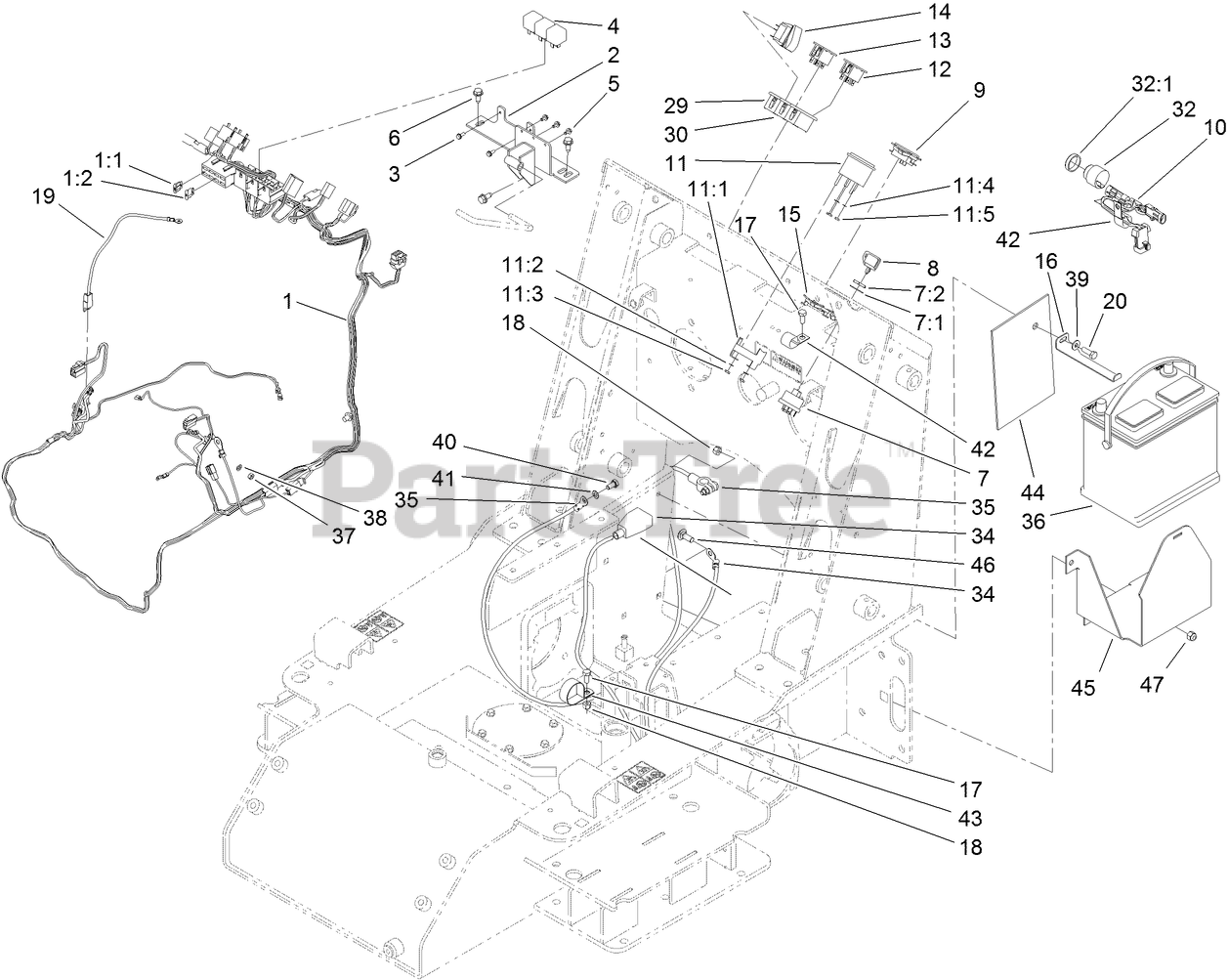

22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 312000001 - 312999999) (2012) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 117-1329

HARNESS-WIRE

$707.99

$

Usually ships in 3-6 days

0

1:1

Toro 112-2463

HARNESS-LINK, FUSIBLE

$22.99

$

Usually ships in 3-6 days

0

1:2

Toro 108-6346

HARNESS-FUSIBLE LINK (14FL)

$22.99

$

Usually ships in 3-6 days

0

2

Toro 108-6360-03

RELAY BRACKET ASM

$161.99

$

Usually ships in 3-6 days

0

3

Toro 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

4

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

7

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 6

0

7:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

7:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

8

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

9

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

10

Toro 115-0730

HARNESS-WIRE, NEUTRAL

$106.99

$

Usually ships in 3-6 days

0

11

Toro 66-2940

GAUGE-FUEL

$189.99

$

Usually ships in 3-6 days

0

11:1

Toro 100-6147

BRACKET-MOUNTING, GAUGE

$6.99

$

Usually ships in 3-6 days

0

11:2

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

11:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11:4

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

11:5

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 100-8070

LAMP-WARNING

$41.99

$

Usually ships in 3-6 days

0

13

Toro 100-8071

LAMP-WARNING

$41.99

$

Usually ships in 3-6 days

0

14

Toro 110-0811

SWITCH-ROCKER

$70.99

$

Usually ships in 3-6 days

0

15

Toro 104-4234

CLIP-MOUNTING

$7.49

$

Usually ships in 3-6 days

0

16

Toro 108-6275-03

CLAMP-BATTERY
(Superseded to 108-6275)

$54.99

$

Usually ships in 3-6 days

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 108-6365

HARNESS-WIRE

$47.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 108-6325

BRACKET-END

$9.49

$

Usually ships in 3-6 days

0

30

Toro 108-6326

BRACKET-MIDDLE

$9.49

$

Usually ships in 3-6 days

0

32

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

32:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

34

Toro 108-6327

CABLE-BATTERY, POSITIVE

$94.99

$

Usually ships in 3-6 days

0

35

Toro 108-6328

CABLE-BATTERY, NEGATIVE

$95.99

$

Usually ships in 3-6 days

0

36

Toro 104-9979

BATTERY
(Superseded to 132-8621)

$411.99

$

Usually ships in 3-6 days

0

37

Toro 43-2830

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

38

Toro 43-5930

WASHER-LOCK, SPRING

$1.49

$

Usually ships in 3-6 days

0

39

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

41

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

42

Toro 94-9580

CLAMP-J

$

$

Not available

43

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

44

Toro 108-6392

GUARD-BATTERY

$20.99

$

Usually ships in 3-6 days

0

45

Toro 108-6274-01

MOUNT-BATTERY

$102.99

$

Usually ships in 3-6 days

0

46

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

47

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
