22323 HD (TX 525) - Toro Dingo Compact Utility Loader (SN: 400000000 - 999999999) Grill Assembly Parts Diagram

Dingo Compact Utility Loader

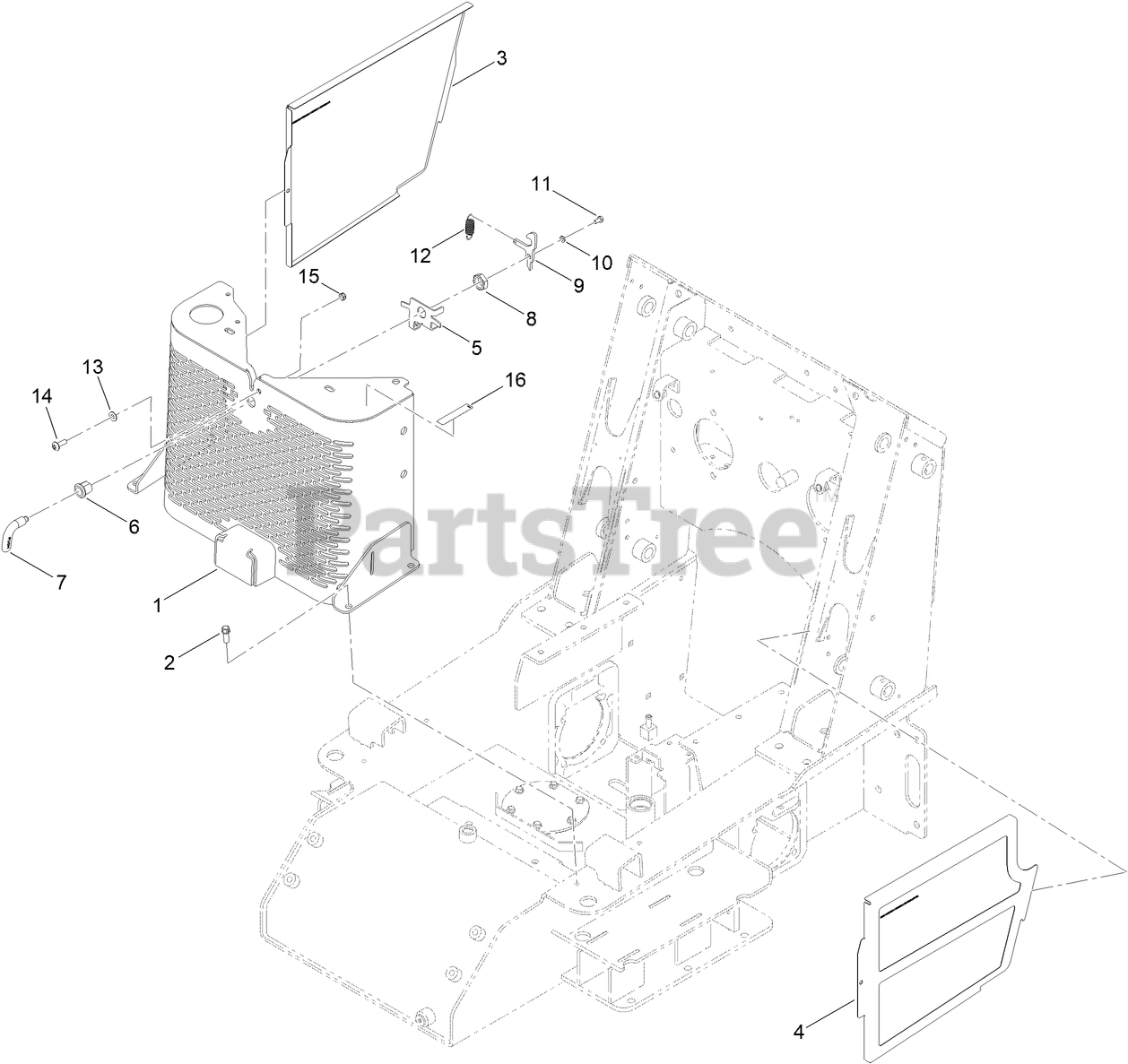

Grill Assembly Parts Diagram

  • Title

1

Toro 117-1318-03

GRILL

$970.99

$

Usually ships in 3-6 days

0

2

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Toro 117-9963-03

RH SIDE PANEL

$245.99

$

Usually ships in 3-6 days

0

4

Toro 117-9964-03

LH SIDE PANEL

$245.99

$

Usually ships in 3-6 days

0

5

Toro 106-5729

BRACKET-LATCH

$44.99

$

Usually ships in 3-6 days

0

6

Toro 106-9335

HOUSING-LATCH

$66.99

$

Usually ships in 3-6 days

0

7

Toro 108-5639

HANDLE-LATCH

$58.99

$

Usually ships in 3-6 days

0

8

Toro 119-7457

NUT

$10.99

$

Usually ships in 3-6 days

0

9

Toro 106-5728

CAM-LATCH

$14.99

$

Usually ships in 3-6 days

0

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Toro 104-0869

SPRING

$13.99

$

In Stock, only 2 left!

0

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 107-8021

SCREW-PTH

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 93-6681

DECAL-WARNING, FAN

$15.99

$

Usually ships in 3-6 days

0
