22323 G (TX 525) - Toro Dingo Compact Utility Loader (SN: 405700000 - 410299999) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

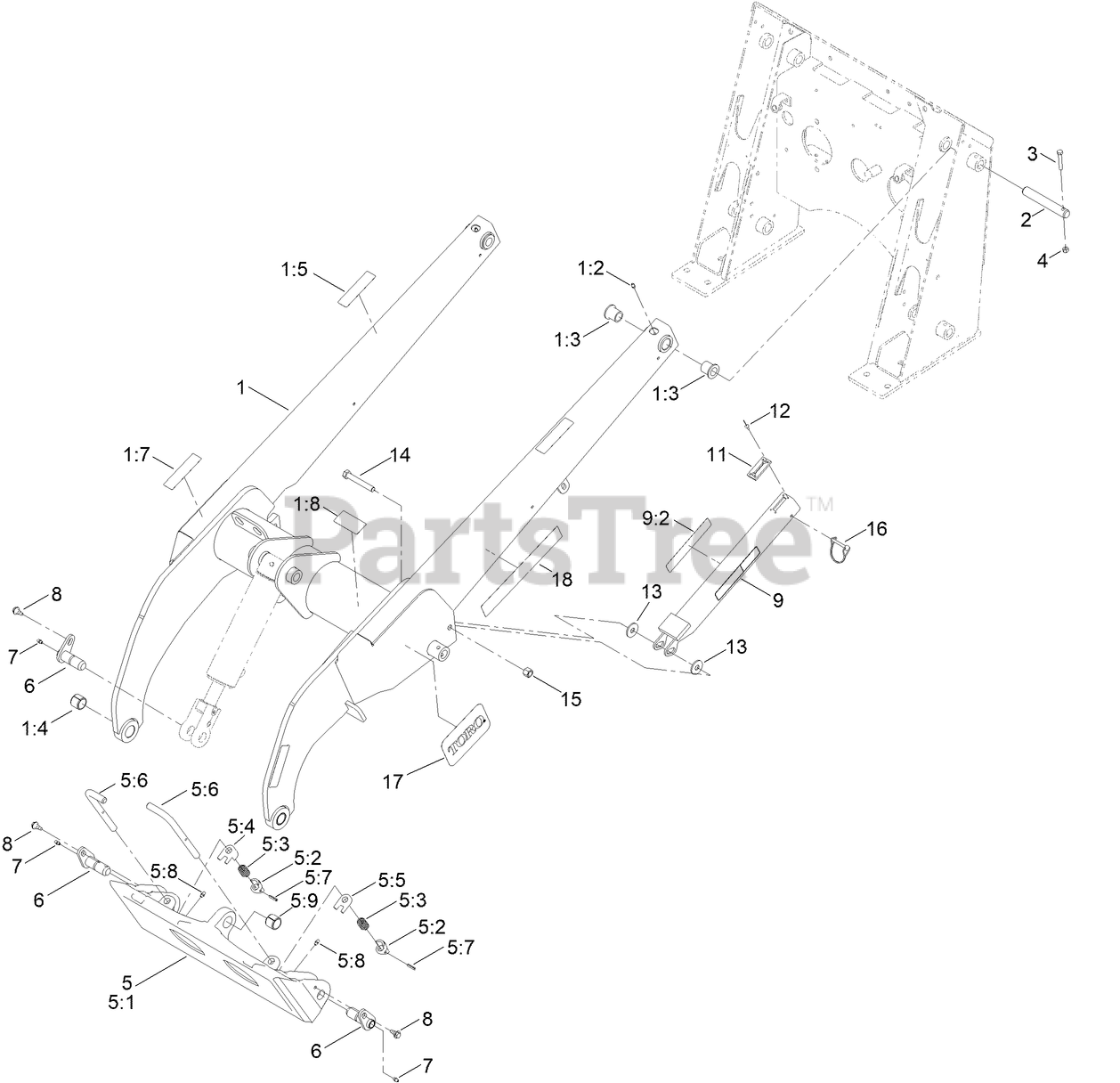

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 108-4638

LOADER ARM ASM

$4974.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:3

Toro 95-3577

BUSHING

$15.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

1:5

Toro 100-8821

DECAL-WARNING, PINCH

$10.99

$

In Stock, only 4 left!

0

1:7

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

1:8

Toro 100-8822

DECAL-NO RIDER

$44.99

$

Usually ships in 3-6 days

0

2

Toro 104-2849

PIN-LOCKING

$73.99

$

Usually ships in 3-6 days

0

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 132-8418

QUICK ATTACH ASM

$1529.99

$

Usually ships in 3-6 days

0

5:1

Toro 130-7708-03

MOUNT-QTACH

$1343.99

$

Usually ships in 3-6 days

0

5:2

Toro 105-0246

CAM

$77.99

$

In Stock, only 2 left!

0

5:3

Toro 98-4694

SPRING-COMPRESSION

$12.99

$

In Stock, only 2 left!

0

5:4

Toro 104-5909

STOP-RH

$62.99

$

Usually ships in 3-6 days

0

5:5

Toro 104-5903

STOP-LH

$62.99

$

In Stock, only 2 left!

0

5:6

Toro 132-8419

PIN-LOCKING

$35.99

$

In Stock, only 2 left!

0

5:7

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 3 left!

0

5:8

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:9

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

6

Toro 130-5222

PIN-PIVOT

$73.99

$

In Stock, only 1 left!

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, only 4 left!

0

9

Toro 108-4639

LOCKING ARM ASM

$401.99

$

Usually ships in 3-6 days

0

9:2

Toro 115-4858

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

11

Toro 98-0083

STOP-RUBBER

$21.99

$

Usually ships in 3-6 days

0

12

Toro 95-1687

RIVET

$0.99

$

Usually ships in 3-6 days

0

13

Toro 68-1440

WASHER-RUBBER

$9.49

$

Usually ships in 3-6 days

0

14

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 100-1663

PIN-HITCH

$16.99

$

In Stock, Qty 6

0

17

Toro 105-1217

DECAL

$43.99

$

In Stock, Qty 8

0

18

Toro 115-4868

DECAL

$32.99

$

Usually ships in 3-6 days

0
