22323 G (TX 525) - Toro Dingo Compact Utility Loader (SN: 404720000 - 405699999) Camshaft and Idle Gear Shaft Assembly Parts Diagram

Dingo Compact Utility Loader

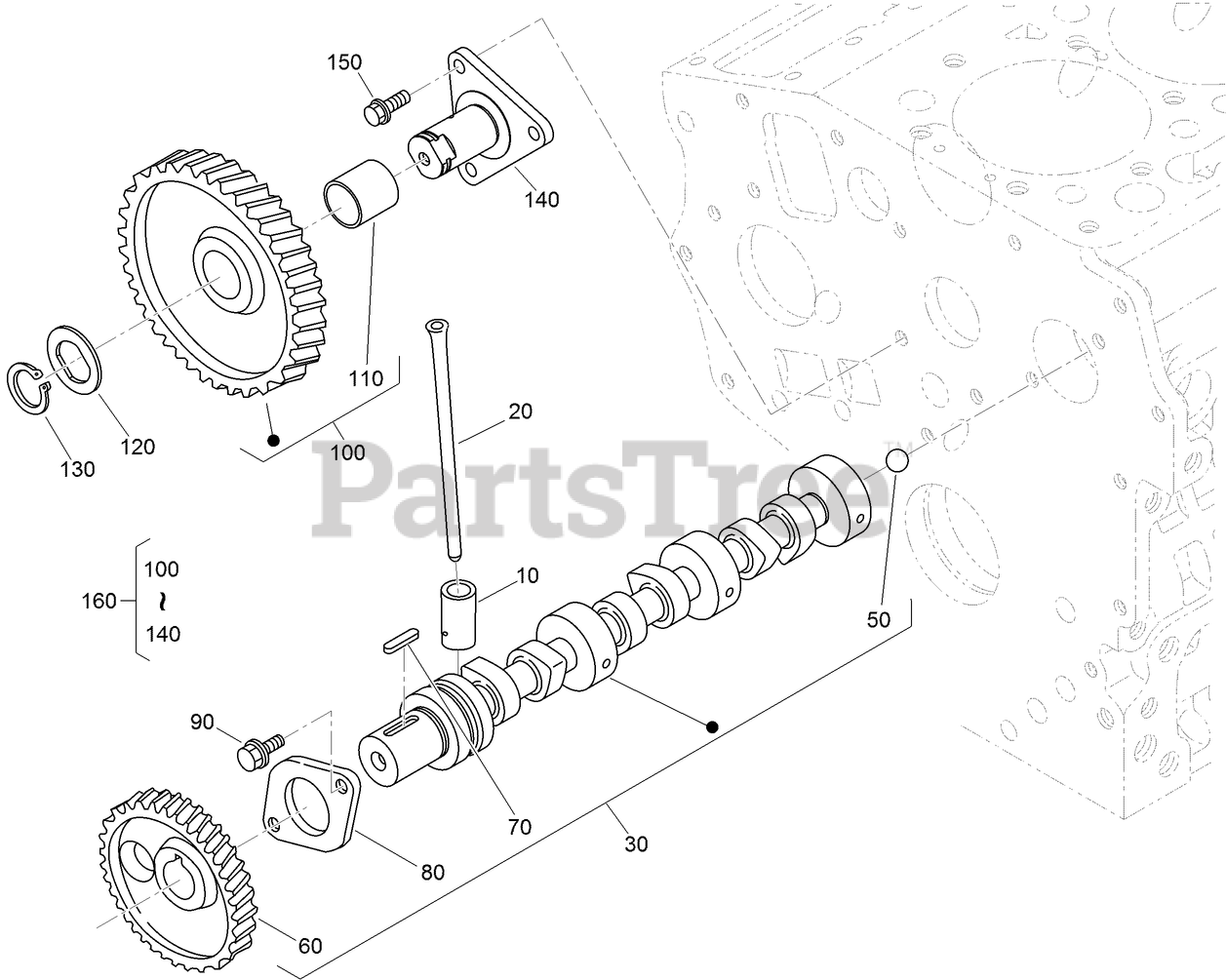

Camshaft and Idle Gear Shaft Assembly Parts Diagram

  • Title

10

Toro 110-3727

TAPPET

$50.99

$

Usually ships in 3-6 days

0

20

Toro 100-1989

ROD-PUSH

$28.99

$

Usually ships in 3-6 days

0

30

Toro 117-0305

CAMSHAFT ASM

$1145.99

$

Usually ships in 3-6 days

0

50

Toro 110-3729

BALL

$0.99

$

Usually ships in 3-6 days

0

60

Toro 130-1534

GEAR-CAM

$116.99

$

Usually ships in 3-6 days

0

70

Toro 98-9378

KEY-FEATHER

$1.49

$

Usually ships in 3-6 days

0

80

Toro 100-1887

STOPPER-CAMSHAFT

$3.99

$

Usually ships in 3-6 days

0

90

Toro 98-9350

BOLT

$1.49

$

Usually ships in 3-6 days

0

100

Toro 121-2421

IDLE GEAR ASM

$255.99

$

Usually ships in 3-6 days

0

110

Toro 121-2422

BUSHING

$16.99

$

Usually ships in 3-6 days

0

120

Toro 100-1970

COLLAR-GEAR, IDLE

$16.99

$

Usually ships in 3-6 days

0

130

Toro 100-1969

RING-SNAP

$3.49

$

Usually ships in 3-6 days

0

140

Toro 100-1967

SHAFT-GEAR, IDLE

$40.99

$

Usually ships in 3-6 days

0

150

Toro 100-1774

BOLT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

160

Toro 100-2240

IDLE GEAR ASM

$572.99

$

Usually ships in 3-6 days

0
