22323 G (TX 525) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) PARKING BRAKE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

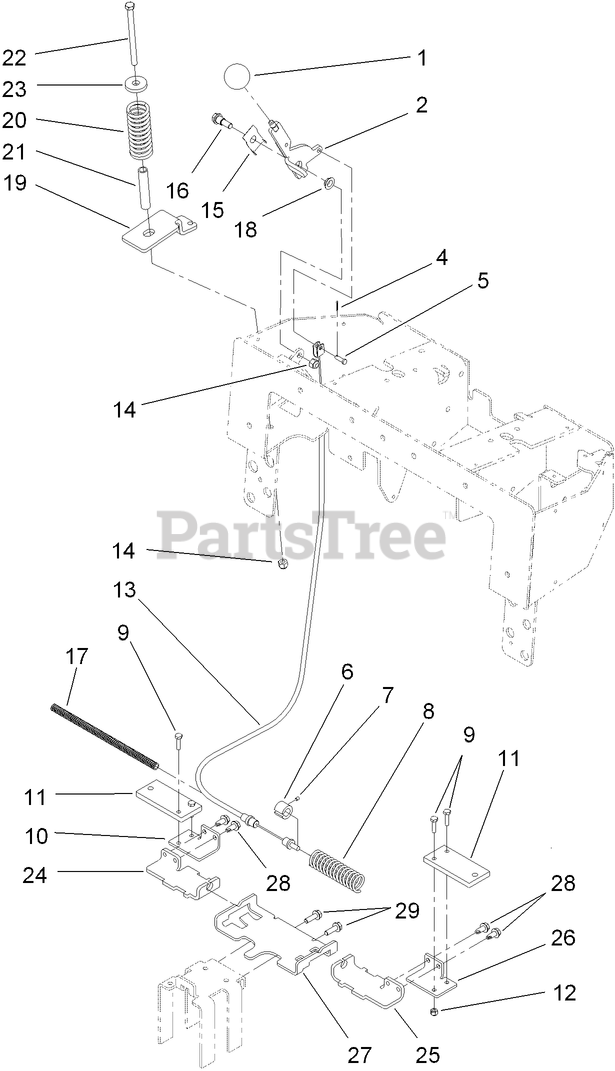

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title
1

$13.99

$

Usually ships in 3-6 days

0

2

Toro 112-2694-03

HANDLE-BRAKE

$72.99

$

Usually ships in 3-6 days

0

4

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

5

Toro 283-67

PIN-CLEVIS

$2.99

$

In Stock, only 1 left!

0

6

Toro 100-6274

Tube-Guide

$21.99

$

Usually ships in 3-6 days

0

7

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 100-1678

SPRING
(Superseded to 100-1678-03)

$39.99

$

Usually ships in 3-6 days

0

9

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 112-2789-03

BAR-LINK, BRAKE RH

$25.99

$

Usually ships in 3-6 days

0

11

Toro 112-2735-03

PLATE-BRAKE

$46.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 112-2791

CABLE-BRAKE

$137.99

$

In Stock, only 1 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 17

0

15

Toro 112-2695

SPRING-LEAF

$18.99

$

Usually ships in 3-6 days

0

16

Toro 94-6177

BOLT-SHOULDER

$9.99

$

Usually ships in 3-6 days

0

17

Toro 100-4697

TUBE-CONVOLUTED

$9.49

$

In Stock, only 1 left!

0

18

Toro 93-2368

BUSHING-FLANGE

$3.49

$

Usually ships in 3-6 days

0

19

Toro 115-4854-03

BRACKET-CABLE, SPRING

$28.99

$

Usually ships in 3-6 days

0

20

Toro 114-1254

SPRING-COMPRESSION

$22.99

$

Usually ships in 3-6 days

0

21

Toro 114-1255

SPACER-SPRING

$13.99

$

Usually ships in 3-6 days

0

22

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

23

Toro 98-0691

WASHER-HARDENED

$20.99

$

Usually ships in 3-6 days

0

24

Toro 112-2788-03

BRACKET-MOUNTING, BRAKE RH

$42.99

$

Usually ships in 3-6 days

0

25

Toro 112-2733-03

BRACKET-MOUNTING, BRAKE LH

$42.99

$

In Stock, only 1 left!

0

26

Toro 112-2734-03

BAR-LINK, BRAKE LH

$25.99

$

Usually ships in 3-6 days

0

27

Toro 110-0224-03

SUPPORT-BAR, BRAKE

$80.99

$

Usually ships in 3-6 days

0

28

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

29

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0
