22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 410000000 - 412799999) Traction Hydraulic Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

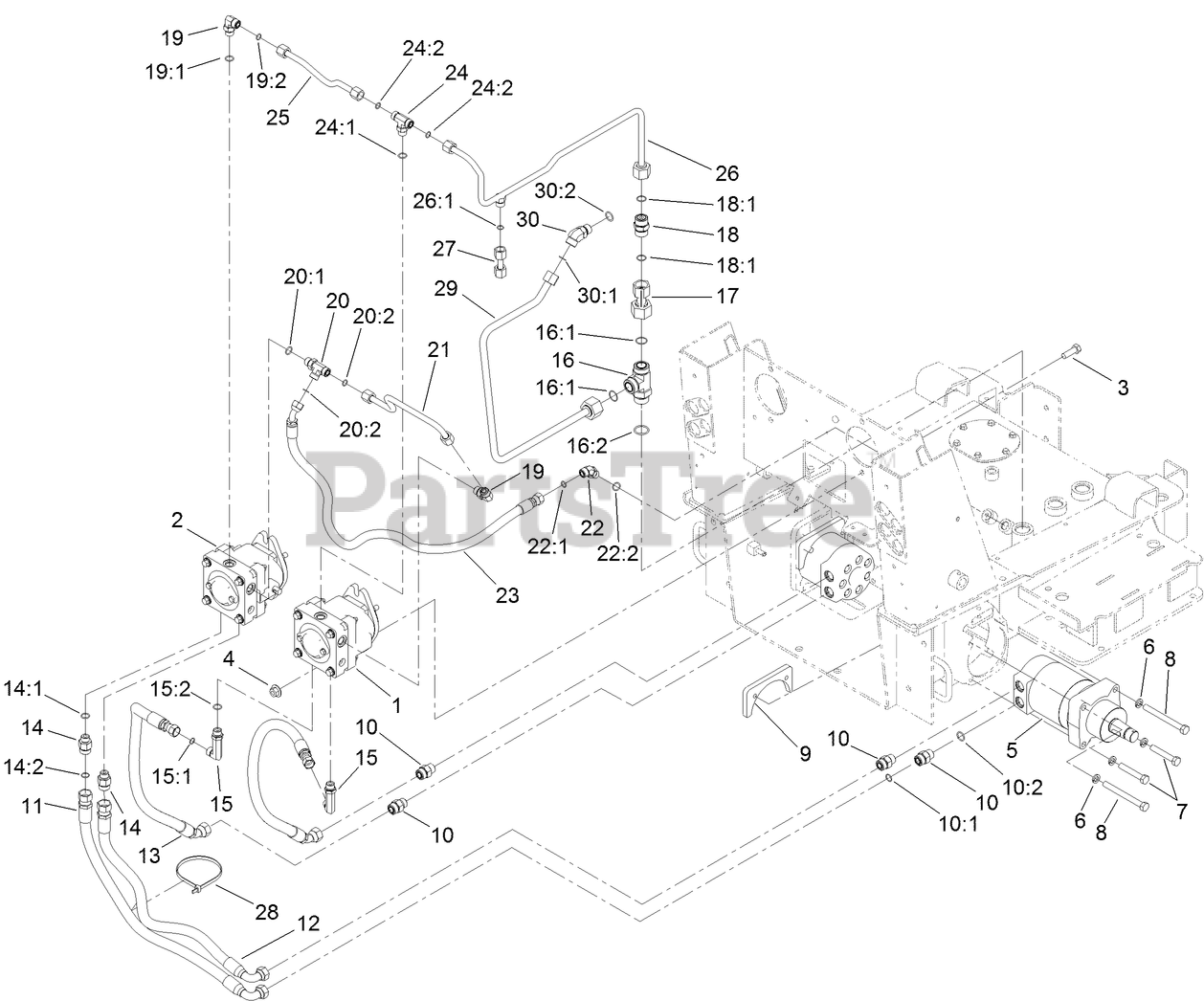

Traction Hydraulic Assembly Parts Diagram

  • Title

1

Toro 106-5706

RH HYD PUMP ASM

$3238.99

$

In Stock, only 1 left!

0

2

Toro 106-5705

LH HYD PUMP ASM

$3238.99

$

In Stock, only 1 left!

0

3

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

4

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 114-1756

HYD MOTOR ASM

$3114.99

$

Usually ships in 3-6 days

0

6

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

7

Toro 115-4845

SCREW-HH, TAP

$4.99

$

In Stock, only 4 left!

0

8

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

9

Toro 98-2763-03

PLATE-MOUNTING

$120.99

$

Usually ships in 3-6 days

0

10

Toro 340-7

FITTING-STRAIGHT

$15.99

$

In Stock, Qty 13

0

10:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

10:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

11

Toro 115-4829

HOSE-HYD

$279.99

$

Usually ships in 3-6 days

0

12

Toro 115-4826

HOSE-HYD

$279.99

$

Usually ships in 3-6 days

0

13

Toro 98-0233

HOSE-HYD

$317.99

$

Usually ships in 3-6 days

0

14

Toro 340-155

FITTING-STRAIGHT

$32.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

14:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

15

Toro 99-6160

FITTING-ELBOW 90 LONG

$159.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

15:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

16

Toro 104-3795

FITTING-TEE

$245.99

$

Usually ships in 3-6 days

0

16:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 6

0

16:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

17

Toro 105-0226

TUBE-HYD

$185.99

$

Usually ships in 3-6 days

0

18

Toro 99-6161

HYD CHECK VALVE ASM

$319.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

19

Toro 340-98

FITTING-ELBOW, 90 DEG

$36.99

$

In Stock, only 2 left!

0

19:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

19:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

20

Toro 340-109

FITTING-TEE

$76.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

20:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

21

Toro 98-0200

TUBE-HYD

$328.99

$

Usually ships in 3-6 days

0

22

Toro 340-101

FITTING-HYD, 45 DEG

$38.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

22:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

23

Toro 98-0201

HOSE-HYD

$255.99

$

Usually ships in 3-6 days

0

24

Toro 340-157

FITTING-HYD, TEE

$70.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

24:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

25

Toro 106-9330

TUBE-HYD

$118.99

$

Usually ships in 3-6 days

0

26

Toro 108-4665

HYD TUBE ASM

$251.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

27

Toro 108-4666

TUBE-HYD

$89.99

$

Usually ships in 3-6 days

0

28

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 117-3988

TUBE-HYD

$188.99

$

Usually ships in 3-6 days

0

30

Toro 340-14

FITTING-HYD, 45 DEG

$53.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

30:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0
