22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 405700000 - 407399999) Air Cleaner Mount Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

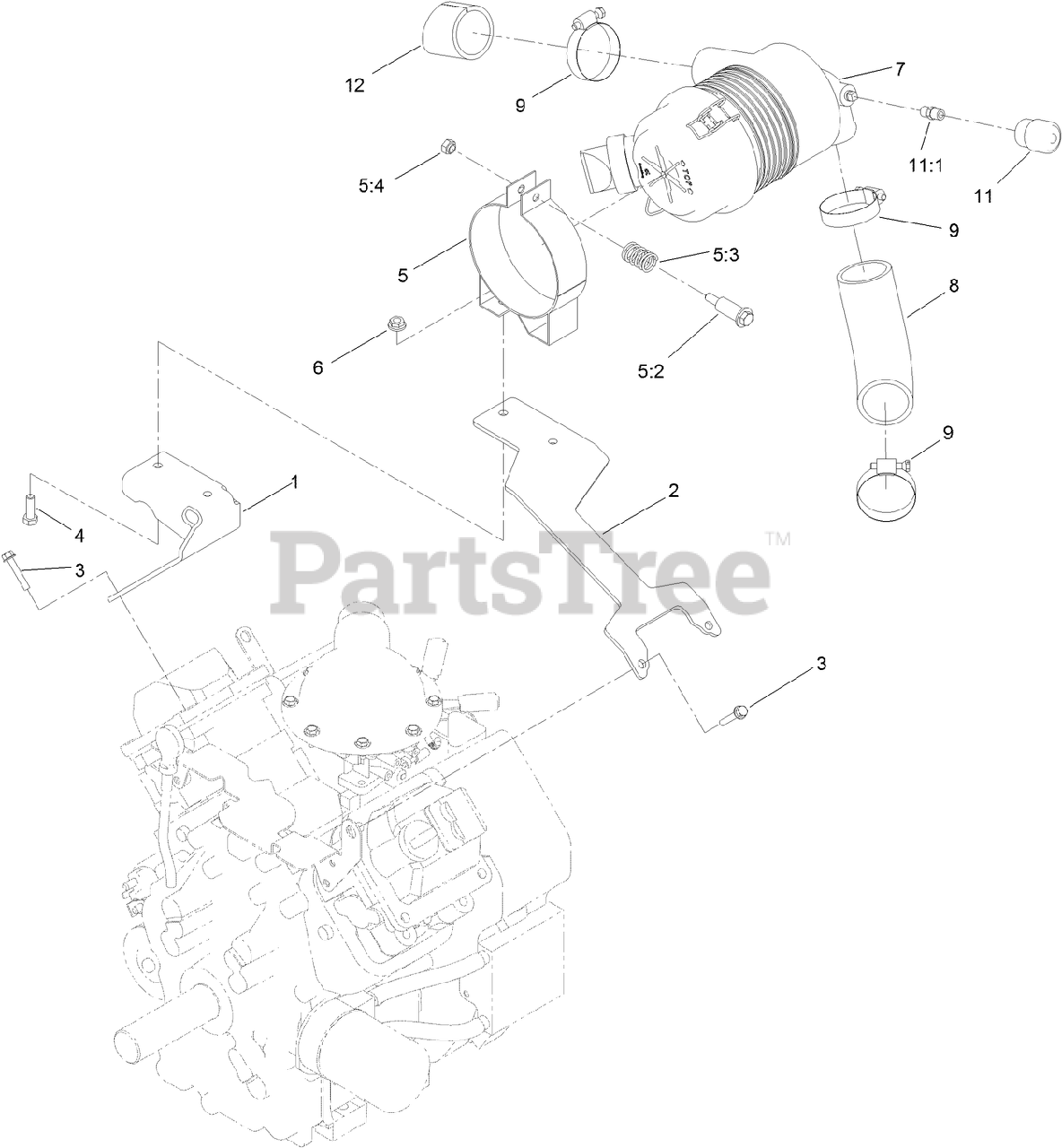

Air Cleaner Mount Assembly Parts Diagram

  • Title

1

Toro 117-1729-03

BRACKET-SUPPORT, RIGHT

$50.99

$

Usually ships in 3-6 days

0

2

Toro 117-1728-03

BRACKET-SUPPORT, LEFT

$41.99

$

Usually ships in 3-6 days

0

3

Toro 33103-035

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 93-2191

AIR CLEANER MOUNTING BAND ASM

$67.99

$

Usually ships in 3-6 days

0

5:2

Toro 94-3653

BOLT

$24.99

$

Usually ships in 3-6 days

0

5:3

Toro 94-3654

SPRING

$14.99

$

Usually ships in 3-6 days

0

5:4

Toro 48-9510

NUT
(Superseded to 33024-00)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 93-2190

AIR CLEANER ASM

$250.99

$

Usually ships in 3-6 days

0

8

Toro 114-8734

HOSE-AIR CLEANER

$61.99

$

Usually ships in 3-6 days

0

9

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

11

Toro 104-3563

INDICATOR

$84.99

$

Usually ships in 3-6 days

0

11:1

Toro 94-1416

ADAPTER-INDICATOR

$14.99

$

Usually ships in 3-6 days

0

12

Toro 114-1364

TUBE-INLET, AIR

$12.99

$

Usually ships in 3-6 days

0
