22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 315000001 - 315999999) (2015) FUEL TANK AND CARBON CANISTER ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

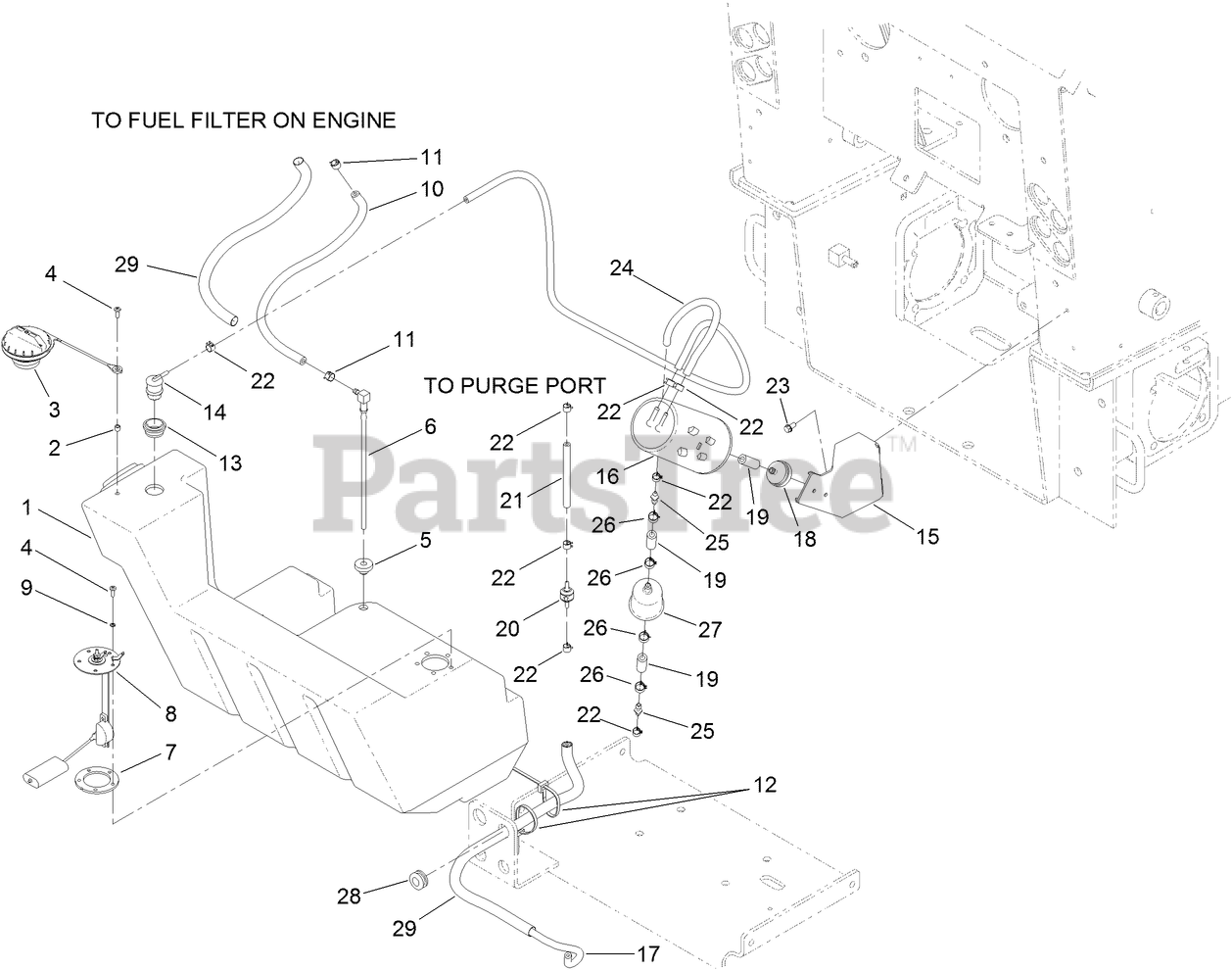

FUEL TANK AND CARBON CANISTER ASSEMBLY Parts Diagram

  • Title
1

Toro 117-9956

TANK-FUEL

$398.99

$

Usually ships in 3-6 days

0

2

Toro 117-9965

SPACER

$8.99

$

In Stock, only 1 left!

0

3

Toro 117-1722

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

4

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 19

0

6

Toro 98-0185

PIPE-STAND

$40.99

$

Usually ships in 3-6 days

0

7

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 2 left!

0

8

Toro 100-1298

SENDER-FUEL

$177.99

$

Usually ships in 3-6 days

0

9

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

10

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

14

Toro 114-0285

VALVE-ROLLOVER

$18.99

$

In Stock, only 1 left!

0

15

Toro 117-4043-03

HOLDER-CANISTER

$91.99

$

Usually ships in 3-6 days

0

16

Toro 115-2251

CANISTER-CARBON
(Superseded to 127-8685)

$66.99

$

Usually ships in 3-6 days

0

17

Toro 119-3517

HOSE-FUEL

$26.99

$

Usually ships in 3-6 days

0

18

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, only 4 left!

0

19

Toro 106-5317

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

20

Toro 115-7868

VALVE-CHECK, VACUUM
(Superseded to 133-8499)

$15.99

$

In Stock, only 3 left!

0

21

Toro 115-4736

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

22

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 10

0

23

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

24

Toro 51-3217

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

25

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

26

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

27

Toro 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

28

Toro 94-1389

GROMMET

$5.49

$

Usually ships in 3-6 days

0

29

Toro 131-0575

SLEEVE-THERMAL

$17.99

$

Usually ships in 3-6 days

0
