22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 290000001 - 290999999) (2009) IGNITION AND ELECTRICAL ASSEMBLY KOHLER CH740-3126 Parts Diagram

Dingo Wide Track Compact Utility Loader

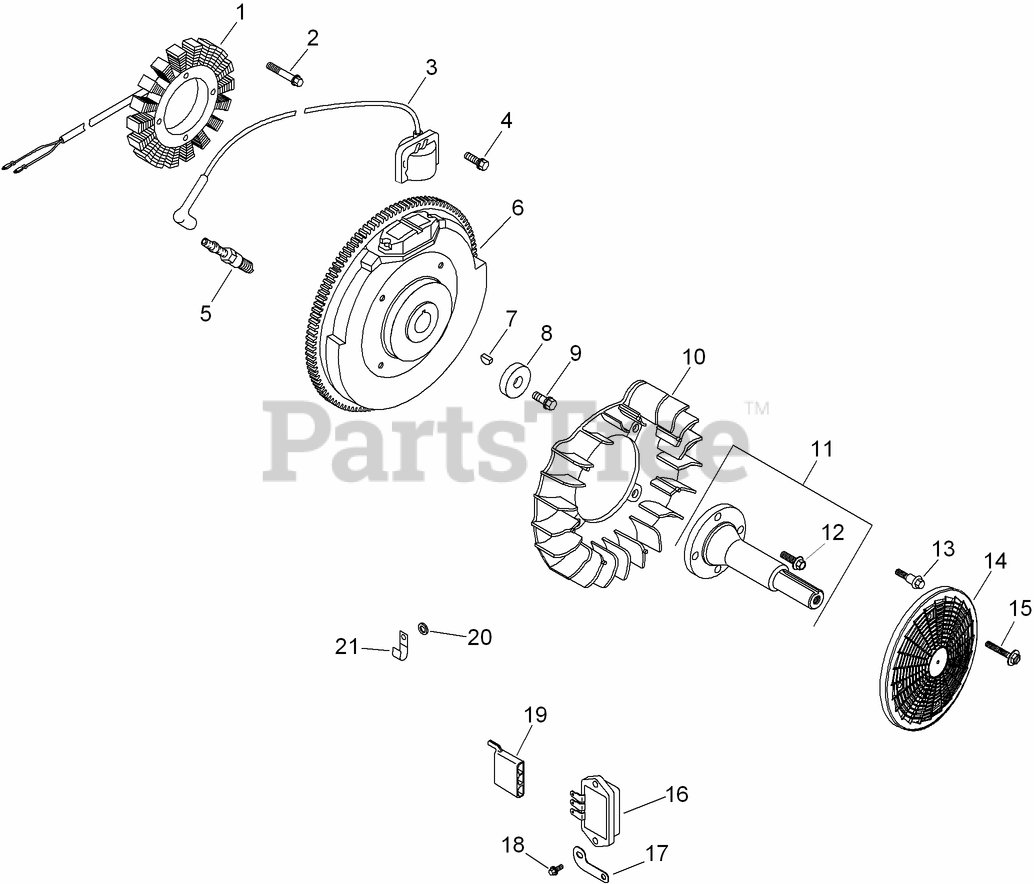

IGNITION AND ELECTRICAL ASSEMBLY KOHLER CH740-3126 Parts Diagram

  • Title

1

Kohler 237878-S

15 AMP STATOR KIT (INCLUDES 25 452 01-S)

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 8

0

2

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 52-S

MODULE SPARK ADV (D S A I) ASM
(Superseded to 24 584 89-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

5

Kohler 25 132 12-S

SPARK PLUG (PRO SERIES)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

6

Kohler 24 025 58-S

FLYWHEEL ASM (L W)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

8

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 11-S

Fan
(Superseded to 24 755 253-S)

Note: Obtain parts from www.kohlerplus.com

$46.99

$

Usually ships in 2-5 days

0

11

Kohler 24 144 13-S

Shaft-Drive, Front

Note: Obtain parts from www.kohlerplus.com

$135.99

$

Usually ships in 2-5 days

0

12

Kohler M-839025-S

Screw-HF (M8x1.25x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

14

Kohler 24 162 34-S

Screen-Grass
(Superseded to 24 162 45-S)

Note: Obtain parts from www.kohlerplus.com

$21.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 117-S

SCREW-FLANGE, SEMS (M4X.7X25)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

16

Kohler 41 403 09-S

Rectifier-Regulator
(Superseded to 41 403 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

17

Kohler 24 126 137-S

Bracket-Strap, Ground
(Superseded to 24 518 12-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

18

Kohler 25 086 157-S

SCREW-HEX FLANGE, HI-LO

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

19

Kohler 25 155 41-S

CONNECTOR (3 CONTACT)

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

20

Kohler X-25-63-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

21

Kohler 235173-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

Kohler 24 176 132-S

HARNESS-WIRING, D S A I

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, only 1 left!

0

Kohler 24 176 132-S

HARNESS-WIRING, D S A I

Note: Not illustrated

$34.99

$

In Stock, only 1 left!

0

Kohler 24 176 42-S

Harness-Wiring
(Superseded to 24 176 234-S)

Note: Not illustrated

$102.99

$

Usually ships in 2-5 days

0

Kohler 24 176 42-S

Harness-Wiring
(Superseded to 24 176 234-S)

Note: Obtain parts from www.kohlerplus.com

$102.99

$

Usually ships in 2-5 days

0

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 25 454 07-S

Tie-Wire

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 454 07-S

Tie-Wire

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 1 left!

0
