22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 290000001 - 290999999) (2009) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER CH740-3126 Parts Diagram

Dingo Wide Track Compact Utility Loader

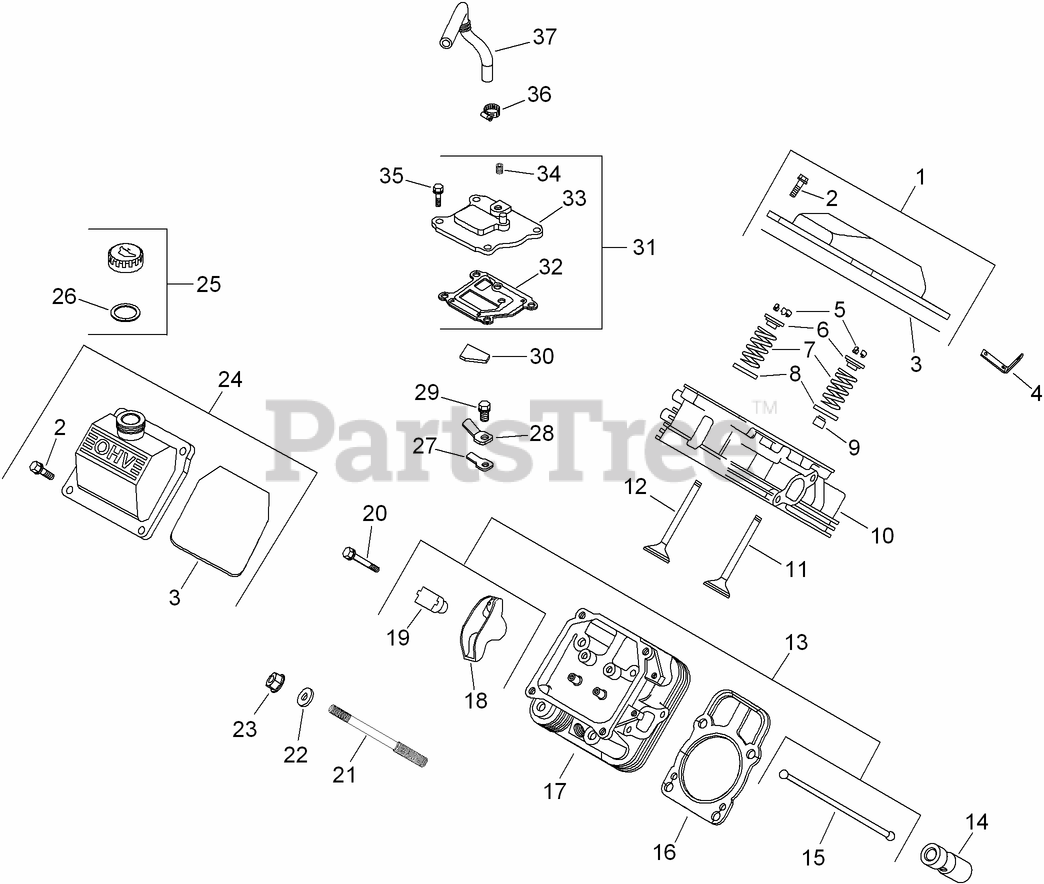

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER CH740-3126 Parts Diagram

  • Title

1

Kohler 24 755 141-S

PLAIN ROCKER COVER KIT (INCLUDES 2, 3)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 2 left!

0

2

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler 24 153 30-S

O-RING
(Superseded to 25 153 24-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

4

Kohler 25 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 3 left!

0

6

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 9

0

7

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

8

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

9

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 8

0

10

Kohler 24 318 106-S

CYLINDER HEAD No.1 ASM (INCLUDES 25 072 04-S)
(Superseded to 24 318 143-S)

Note: Obtain parts from www.kohlerplus.com

$235.99

$

In Stock, only 2 left!

0

11

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 20+

0

11

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, Qty 7

0

12

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 3 left!

0

13

Kohler 24 755 66-S

VALVE TRAIN KIT (INCLUDES 15,18 and 19)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, only 3 left!

0

14

Kohler 25 351 04-S

HYDRAULIC VALVE LIFTER KIT (INCLUDES 25 357 14-S)
(Superseded to 25 351 11-S)

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, Qty 6

0

15

Kohler 24 411 05-S

ROD-PUSH

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 2 left!

0

16

Kohler 24 841 03-S

CYLINDER HEAD GASKET KIT
(Superseded to 24 841 04-S)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, Qty 20+

0

17

Kohler 24 318 114-S

CYLINDER HEAD No.2 ASM (INCLUDES 25 072 04-S)
(Superseded to 24 818 02-S)

Note: Obtain parts from www.kohlerplus.com

$237.99

$

In Stock, only 1 left!

0

18

Kohler 25 186 01-S

ARM-ROCKER

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 3 left!

0

19

Kohler 24 599 02-S

PIVOT-ARM, ROCKER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

20

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 18

0

21

Kohler 24 072 09-S

STUD (M8X1.25xM10X1.5x105MM)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 7

0

22

Kohler 24 468 16-S

WASHER-FLAT (8.6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 24 100 10-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

24

Kohler 24 755 140-S

OIL FILL ROCKER COVER KIT (INCLUDES 2, 3)

Note: Obtain parts from www.kohlerplus.com

$36.99

$

In Stock, only 1 left!

0

25

Kohler 24 755 46-S

OIL FILL CAP KIT (YELLOW) (INCLUDES 26)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 1 left!

0

26

Kohler 25 153 02-S

O-RING (DIPSTICK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

27

Kohler 24 402 03-S

REED-BREATHER
(Superseded to 24 402 06-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 7

0

28

Kohler 66 018 04-S

RETAINER-REED

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 6

0

29

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

30

Kohler 24 050 11-S

FILTER-BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

31

Kohler 24 033 01-S

BREATHER ASM (INCLUDES 32, 33)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, only 2 left!

0

32

Kohler 24 041 51-S

GASKET-BREATHER
(Superseded to 24 041 67-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 11

0

33

Kohler 24 096 86-S

COVER-BREATHER
(Superseded to 24 033 01-S)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, only 2 left!

0

34

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

35

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

36

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

37

Kohler 24 326 89-S

HOSE-BREATHER

Note: Obtain parts from www.kohlerplus.com

$9.99

$

In Stock, Qty 6

0

Kohler 24 755 147-S

CYLINDER HEAD HARDWARE KIT (SERVICES 1 HEAD-QTYS FOR BOTH HEADS) (INCLUDES 5-9, 11, 12, 15, 18-20)

Note: Obtain parts from www.kohlerplus.com

$96.99

$

In Stock, only 3 left!

0

Kohler 24 755 147-S

CYLINDER HEAD HARDWARE KIT (SERVICES 1 HEAD-QTYS FOR BOTH HEADS) (INCLUDES 5-9, 11, 12, 15, 18-20)

Note: Not illustrated

$96.99

$

In Stock, only 3 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 2 left!

0

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Not illustrated

$3.99

$

In Stock, only 2 left!

0
