22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 290000001 - 290999999) (2009) FUEL SYSTEM ASSEMBLY KOHLER CH740-3126 Parts Diagram

Dingo Wide Track Compact Utility Loader

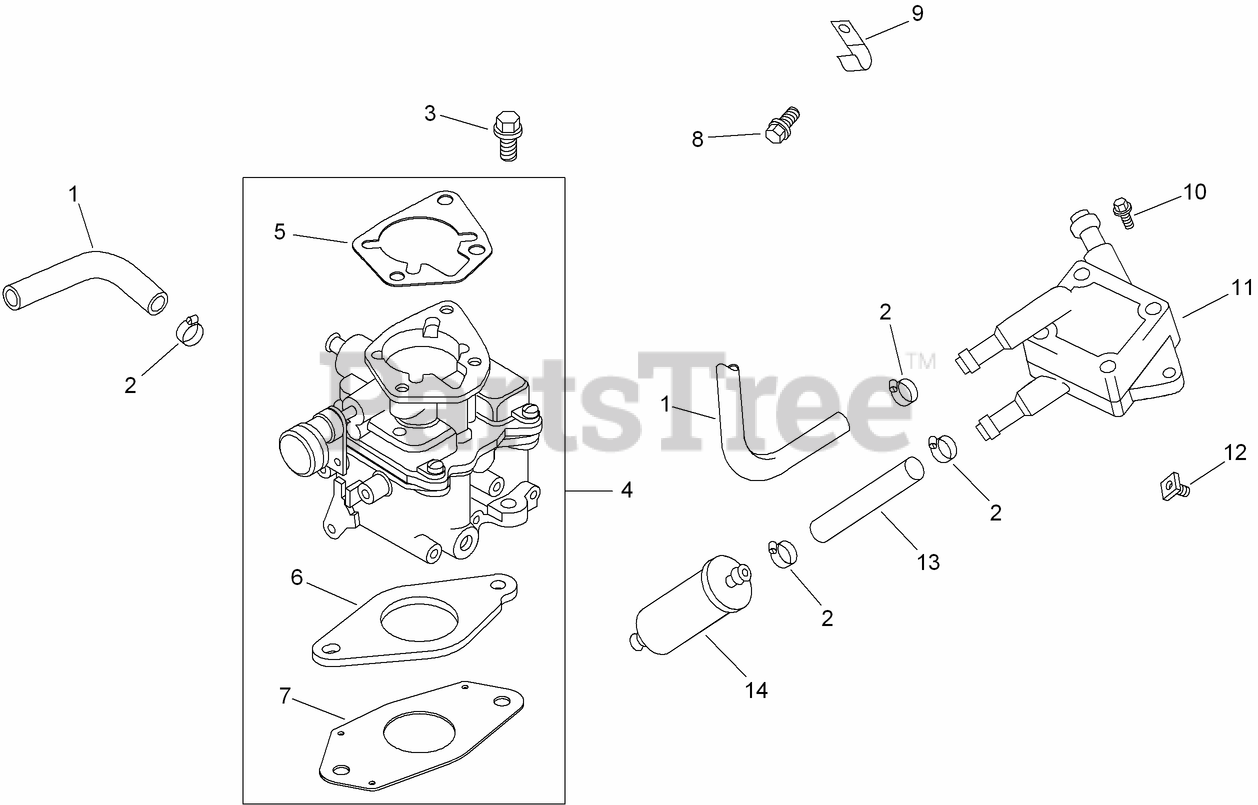

FUEL SYSTEM ASSEMBLY KOHLER CH740-3126 Parts Diagram

  • Title

1

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

3

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 24 853 93-S

Carburetor Kit W/GASKETS (INCLUDES 5-7)
(Superseded to 24 853 313-S)

Note: Obtain parts from www.kohlerplus.com

$291.99

$

In Stock, only 1 left!

0

5

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

6

Kohler 24 041 17-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 9

0

7

Kohler 24 041 53-S

GASKET-CARBURETOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 6

0

8

Kohler 25 086 158-S

SCREW-FLANGED, THREAD FORMING (M6X1.0X11)
(Superseded to 25 086 406-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

9

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 4 left!

0

10

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 18

0

12

Kohler 25 100 37-S

NUT-PLASTIC (BLACK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

13

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 1 left!

0

14

Kohler 24 050 13-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, Qty 20+

0

Kohler 24 755 137-S

High Altitude Kit (10,000+ ft)

Note: Not illustrated

$63.99

$

Usually ships in 2-5 days

0

Kohler 24 755 137-S

High Altitude Kit (10,000+ ft)

Note: Obtain parts from www.kohlerplus.com

$63.99

$

Usually ships in 2-5 days

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Not illustrated

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

Note: Not illustrated

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

Note: Not illustrated

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 08-S

ACCELERATOR PUMP REPAIR KIT

Note: Not illustrated

$84.99

$

In Stock, only 1 left!

0

Kohler 24 757 08-S

ACCELERATOR PUMP REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$84.99

$

In Stock, only 1 left!

0

Kohler 24 757 09-S

ACCELERATOR PUMP SEAL REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$109.99

$

Usually ships in 2-5 days

0

Kohler 24 757 09-S

ACCELERATOR PUMP SEAL REPAIR KIT

Note: Not illustrated

$109.99

$

Usually ships in 2-5 days

0

Kohler 24 755 138-S

High Altitude Kit (5-10,000 FT)

Note: Obtain parts from www.kohlerplus.com

$53.99

$

In Stock, only 1 left!

0

Kohler 24 755 138-S

High Altitude Kit (5-10,000 FT)

Note: Not illustrated

$53.99

$

In Stock, only 1 left!

0
