22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000001 - 280999999) (2008) LOADER TOWER AND PULLEY ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

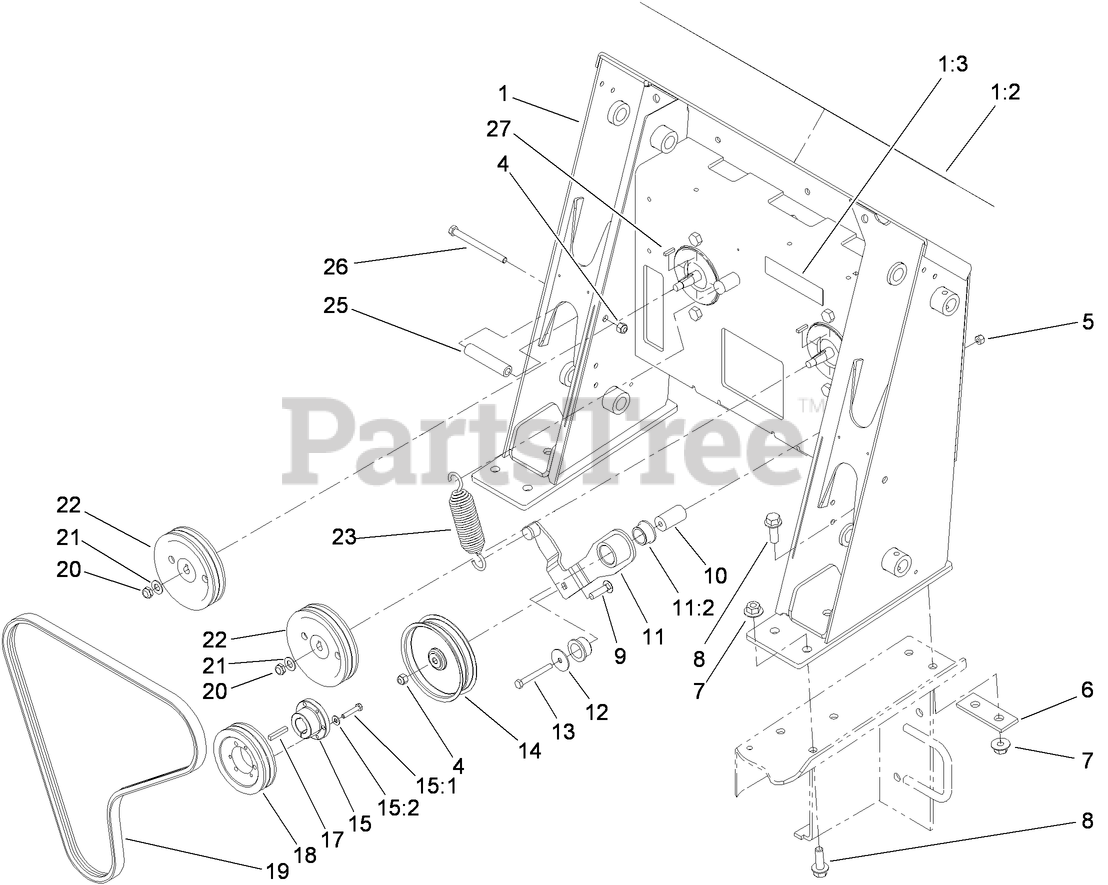

LOADER TOWER AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 115-0758

LOADER TOWER ASM
(Superseded to 117-9982)

$2916.99

$

Usually ships in 3-6 days

0

1:2

Toro 115-4863

DECAL-PANEL, CONTROL
(Superseded to 138-0799)

$45.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 100-6123-01

PLATE-STIFFENER

$77.99

$

Usually ships in 3-6 days

0

7

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

8

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

9

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

10

Toro 104-5739

SPACER-MOUNTING

$25.99

$

Usually ships in 3-6 days

0

11

Toro 99-6167

IDLER ARM ASM

$

$

Not available

11:2

Toro 256-132

BUSHING-FLANGE

$8.99

$

In Stock, Qty 5

0

12

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

13

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

14

Toro 95-3707

PULLEY-IDLER

$172.99

$

In Stock, only 1 left!

0

15

Toro 61-3340

BUSHING

$87.99

$

In Stock, only 1 left!

0

15:1

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

15:2

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

18

Toro 61-3330

PULLEY

$291.99

$

In Stock, only 1 left!

0

19

Toro 95-3611

V-BELT

$139.99

$

In Stock, only 2 left!

0

20

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 106-5710-03

PULLEY
(Superseded to 106-5710)

$117.99

$

In Stock, only 2 left!

0

23

Toro 105-0383

SPRING-EXTENSION

$97.99

$

In Stock, only 1 left!

0

25

Toro 100-1271

TUBE-SPACER

$24.99

$

Usually ships in 3-6 days

0

26

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

27

$12.99

$

In Stock, only 2 left!

0
