22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000001 - 280999999) (2008) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH740-3126 Parts Diagram

Dingo Wide Track Compact Utility Loader

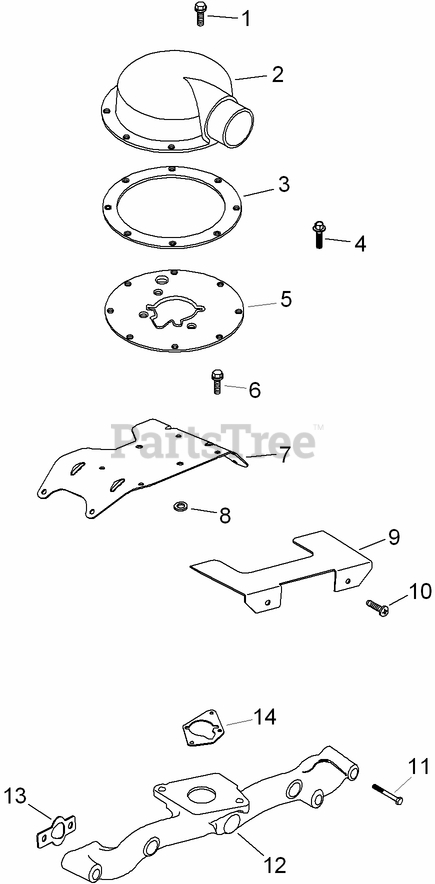

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH740-3126 Parts Diagram

  • Title
1

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

2

Kohler 24 029 28-S

Adapter-Intake, Air

Note: Obtain parts from www.kohlerplus.com

$181.99

$

Usually ships in 2-5 days

0

3

Kohler 24 041 38-S

Gasket-Adapter, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 1 left!

0

4

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 029 35-S

Plate-Adapter
(Superseded to 24 029 79-S)

Note: Obtain parts from www.kohlerplus.com

$55.99

$

Usually ships in 2-5 days

0

6

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

7

Kohler 24 126 143-S

BRACKET-CLEANER, AIR
(Superseded to 24 126 213-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

8

Kohler X-25-12-S

Washer-Plain (91/4)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

9

Kohler 24 314 29-S

SHIELD-DEBRIS

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

10

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

11

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

12

Kohler 24 164 14-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$229.99

$

Usually ships in 2-5 days

0

13

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

14

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0
