223210x31B - Scotts 22" Walk-Behind Mower (2004) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

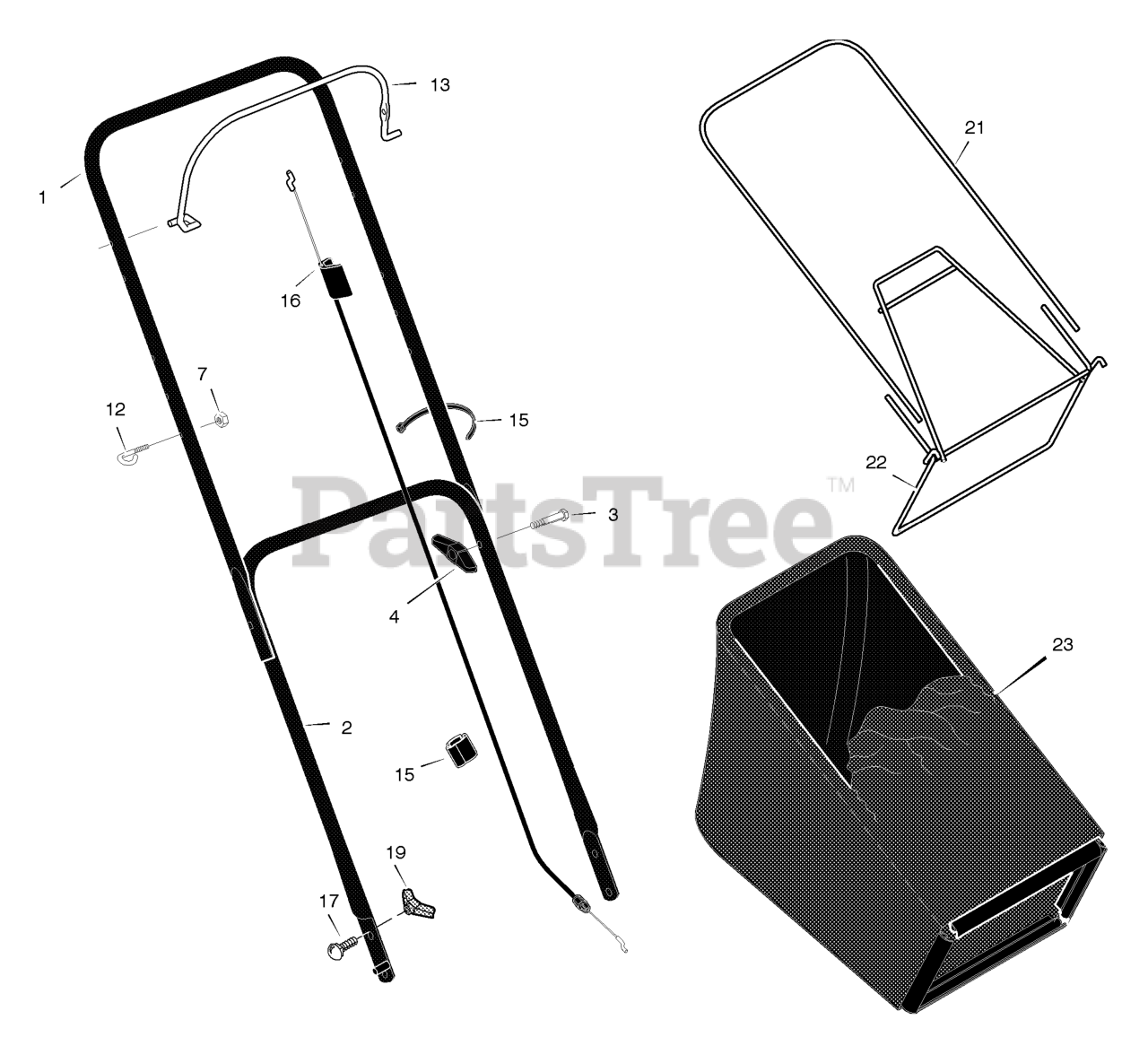

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101829E701MA

Handle, Upper (Black)

$125.99

$

Usually ships in 2-12 days

0

2

Murray 672906E701MA

Handle, Lower (Black)

$142.99

$

Usually ships in 2-12 days

0

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 1101964E701MA

Engine Stop Lever

$41.99

$

Usually ships in 2-12 days

0

15

Murray 1101353MA

Clip, Cable

$5.99

$

In Stock, only 2 left!

0

16

Murray 1102001MA

Engine Stop Cable

$16.99

$

Usually ships in 2-12 days

0

17

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

19

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0

21

Murray 1101075MA

Frame, Top

$113.99

$

Usually ships in 2-12 days

0

22

Murray 1101074MA

Frame Assembly

$71.99

$

In Stock, only 1 left!

0

23

Murray 1101035MA

Bag, Cloth

$

$

Not available
