22321 (TX 427) - Toro Dingo Compact Utility Loader (SN: 402000000 - 404684849) Engine, Exhaust and Control Lever Assembly Parts Diagram

Dingo Compact Utility Loader

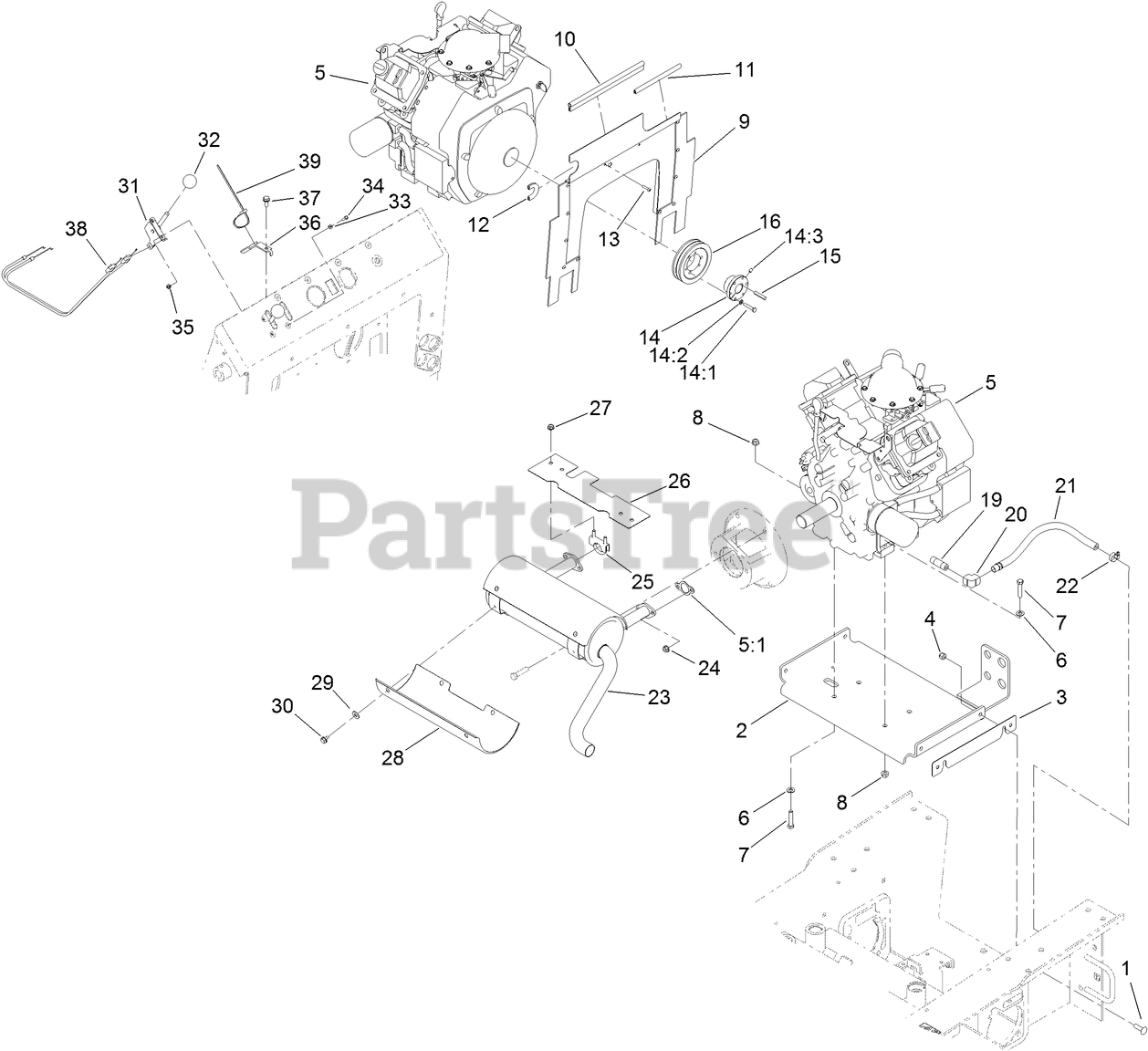

Engine, Exhaust and Control Lever Assembly Parts Diagram

  • Title

1

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

2

Toro 114-1288-03

PLATE-MOUNTING, ENGINE

$298.99

$

Usually ships in 3-6 days

0

3

Toro 117-1811

SHIM-STRAP

$

$

Currently unavailable

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

ENGINE-KOHLER, CH740-3136

Note: Not serviced separately

$

$

Not available

5

ENGINE-KOHLER, CH740-3136

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5:1

Toro 93-0350

See Supercession: 110-6697
(Superseded to 110-6697)

$

$

Not available

6

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Toro 114-8725

BAFFLE-ENGINE

$295.99

$

Usually ships in 3-6 days

0

10

Toro 115-4837

STRIP-SEAL, 10.5 INCH

$21.99

$

Usually ships in 3-6 days

0

11

Toro 105-0378

SEAL-STRIP, 6.5 INCH

$12.99

$

Usually ships in 3-6 days

0

12

Toro 105-0377

SEAL-STRIP, 3 INCH

$10.99

$

Usually ships in 3-6 days

0

13

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 6

0

14

Toro 61-3340

BUSHING

$87.99

$

In Stock, only 1 left!

0

14:1

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

14:2

Toro 325-32

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

14:3

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

15

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

16

Toro 61-3330

PULLEY

$291.99

$

In Stock, only 1 left!

0

19

Toro 289-42

NIPPLE

$18.99

$

Usually ships in 3-6 days

0

20

Toro 94-9650

ELBOW-90 DEG

$37.99

$

Usually ships in 3-6 days

0

21

Toro 100-1256

OIL HOSE ASM

$96.99

$

Usually ships in 3-6 days

0

22

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 115-1509

MUFFLER

$312.99

$

Usually ships in 3-6 days

0

24

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 9

0

25

Toro 114-1365

CLAMP-MUFFLER
(Superseded to 104-4090)

$23.99

$

Usually ships in 3-6 days

0

26

Toro 114-1366

SHIELD-MANIFOLD

$22.99

$

Usually ships in 3-6 days

0

27

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

28

Toro 117-9973

SHIELD-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

29

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

31

Toro 108-9730

LEVER-CONTROL

$42.99

$

Usually ships in 3-6 days

0

32

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

33

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

35

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

36

Toro 100-1299-03

GUIDE-CABLE

$41.99

$

In Stock, only 1 left!

0

37

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

38

Toro 108-4679

CABLE-THROTTLE/CHOKE

$21.99

$

In Stock, only 1 left!

0

39

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
