22321 (TX 427) - Toro Dingo Compact Utility Loader (SN: 290000001 - 290999999) (2009) ENGINE AND MOUNT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

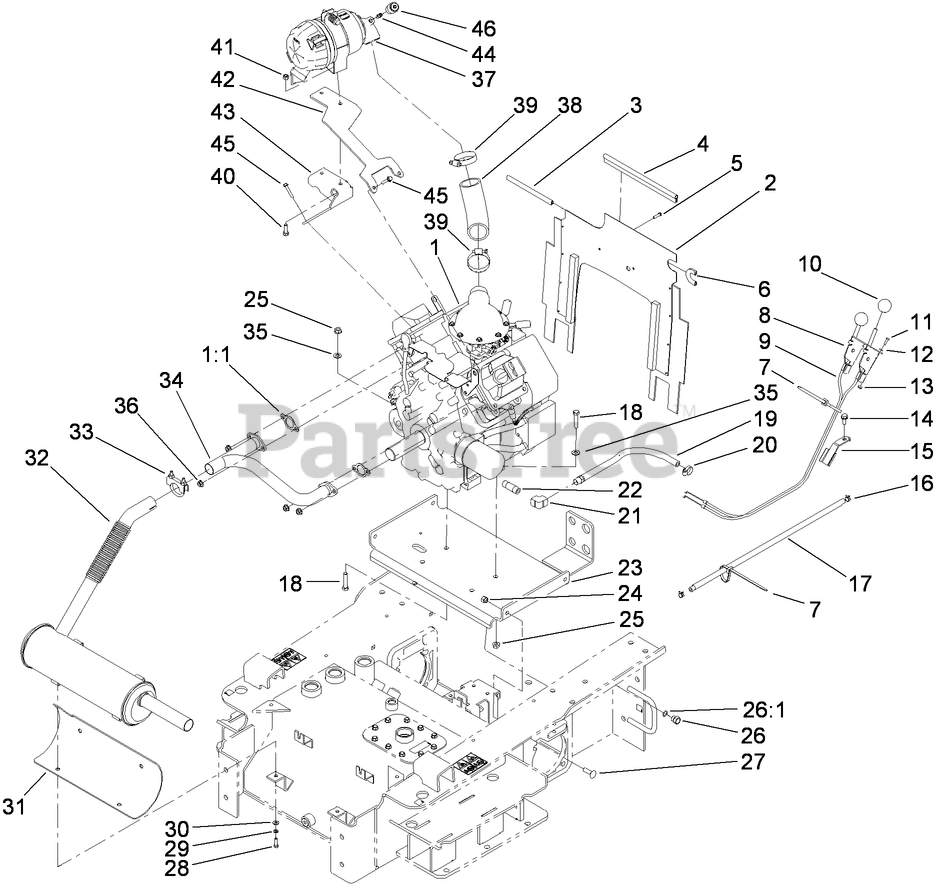

ENGINE AND MOUNT ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, CH740-3126

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, CH740-3126

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

2

Toro 114-8725

BAFFLE-ENGINE

$289.99

$

Usually ships in 3-6 days

0

3

Toro 105-0378

SEAL-STRIP, 6.5 INCH

$12.99

$

Usually ships in 3-6 days

0

4

Toro 115-4837

STRIP-SEAL, 10.5 INCH

$21.99

$

Usually ships in 3-6 days

0

5

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 6

0

6

Toro 105-0377

SEAL-STRIP, 3 INCH

$10.99

$

Usually ships in 3-6 days

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 108-9730

LEVER-CONTROL

$40.99

$

Usually ships in 3-6 days

0

9

Toro 108-4679

CABLE-THROTTLE/CHOKE

$21.99

$

In Stock, only 1 left!

0

10

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

11

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

12

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 100-1299-03

GUIDE-CABLE

$41.99

$

In Stock, only 1 left!

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

18

Toro 323-53

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

19

Toro 100-1256

OIL HOSE ASM

$96.99

$

Usually ships in 3-6 days

0

20

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

21

Toro 94-9650

ELBOW-90 DEG

$36.99

$

Usually ships in 3-6 days

0

22

Toro 289-42

NIPPLE

$17.99

$

Usually ships in 3-6 days

0

23

Toro 114-1288-03

PLATE-MOUNTING, ENGINE

$289.99

$

Usually ships in 3-6 days

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

27

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

28

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

31

Toro 98-2762

SHIELD-HEAT, MUFFLER

$172.99

$

Usually ships in 3-6 days

0

32

Toro 105-0249

MUFFLER

$646.99

$

Usually ships in 3-6 days

0

33

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

In Stock, only 2 left!

0

34

Toro 110-0150

MANIFOLD-CROSSOVER

$157.99

$

Usually ships in 3-6 days

0

35

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

36

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 9

0

37

Toro 99-3160

AIR CLEANER ASM

$331.99

$

Usually ships in 3-6 days

0

38

Toro 114-8734

HOSE-AIR CLEANER

$60.99

$

Usually ships in 3-6 days

0

39

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

40

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 115-4850-03

BRACKET-LEFT SUPPORT, AIR FILTER

$51.99

$

Usually ships in 3-6 days

0

43

Toro 115-4851-03

BRACKET-RIGHT SUPPORT, AIR FILTER

$51.99

$

Usually ships in 3-6 days

0

44

Toro 105-4292

Nipple-Pipe

$14.99

$

Usually ships in 3-6 days

0

45

Toro 33103-035

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

46

Toro 93-9164

INDICATOR-MINI

$76.99

$

Usually ships in 3-6 days

0
