22321 G (TX 427) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) MAIN FRAME AND FUEL TANK ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

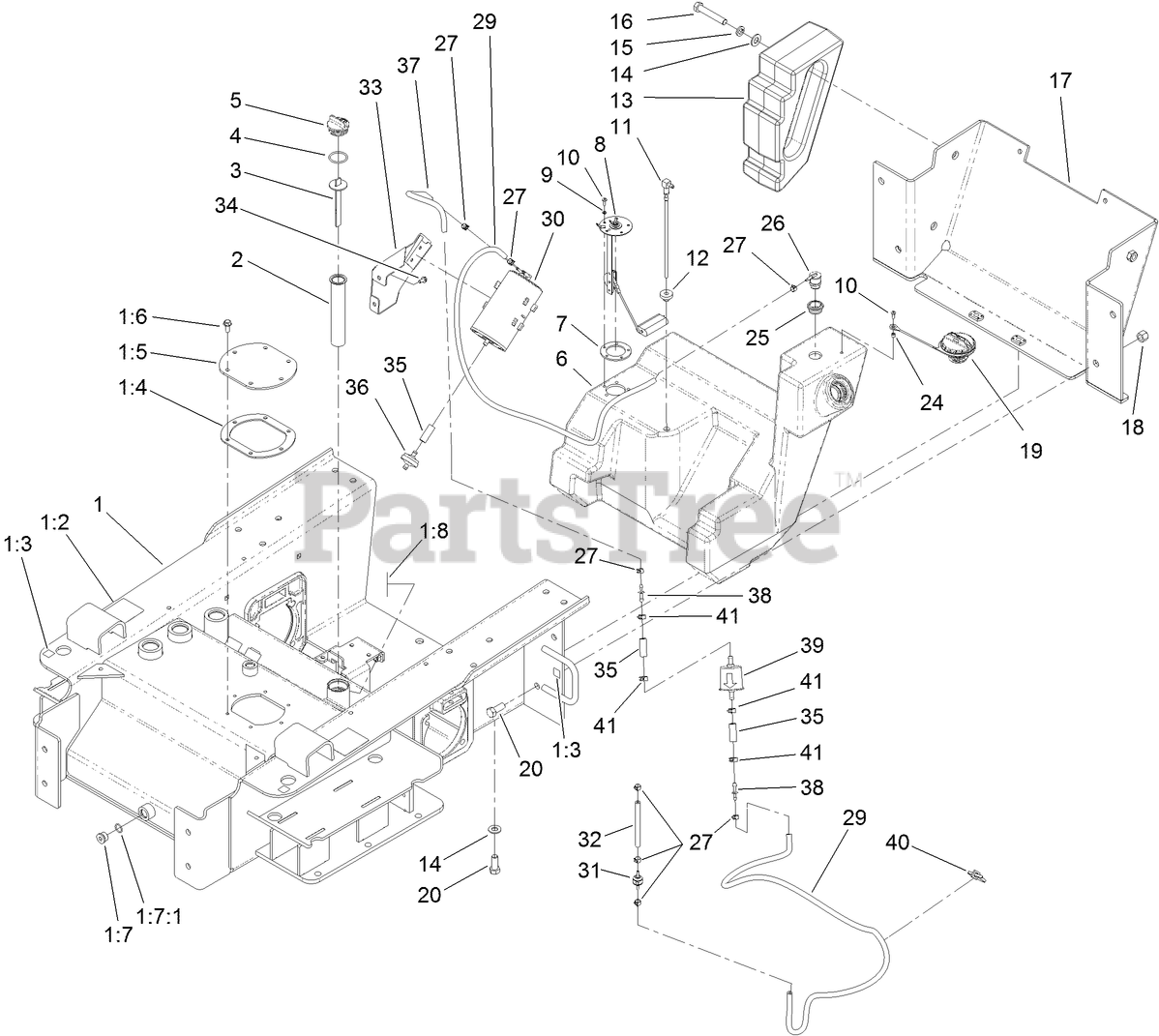

MAIN FRAME AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1354

CHASSIS ASM

$7393.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:4

Toro 107-3557

GASKET-COVER, ACCESS

$58.99

$

Usually ships in 3-6 days

0

1:5

Toro 108-6297-01

COVER-TANK

$39.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-9940

SCREW

$2.49

$

In Stock, only 3 left!

0

1:7

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:7:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 4 left!

0

1:8

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

2

Toro 61-2790

FILTER-SCREEN

$

$

Not available

3

Toro 100-2097

DIPSTICK-OIL

$63.99

$

Usually ships in 3-6 days

0

4

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

In Stock, only 1 left!

0

5

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 3 left!

0

6

Toro 117-9956

TANK-FUEL

$398.99

$

Usually ships in 3-6 days

0

7

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 1 left!

0

8

Toro 100-1298

SENDER-FUEL

$177.99

$

Usually ships in 3-6 days

0

9

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

10

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 98-0185

PIPE-STAND

$40.99

$

In Stock, only 2 left!

0

12

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

13

Toro 99-6165-01

COUNTERWEIGHT-REAR

$463.99

$

Usually ships in 3-6 days

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

17

Toro 115-4565-01

COVER-REAR

$847.99

$

Usually ships in 3-6 days

0

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 117-1722

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

20

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

24

Toro 117-9965

SPACER

$8.99

$

In Stock, Qty 14

0

25

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 16

0

26

Toro 114-0285

VALVE-ROLLOVER

$18.99

$

In Stock, only 1 left!

0

27

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 9

0

29

Toro 119-3517

HOSE-FUEL

$26.99

$

Usually ships in 3-6 days

0

30

Toro 115-2251

CANISTER-CARBON
(Superseded to 127-8685)

$66.99

$

Usually ships in 3-6 days

0

31

Toro 115-7868

VALVE-CHECK, VACUUM
(Superseded to 133-8499)

$15.99

$

In Stock, only 2 left!

0

32

Toro 115-4736

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

33

Toro 117-4043

HOLDER-CANISTER
(Superseded to 117-4043-03)

$91.99

$

Usually ships in 3-6 days

0

34

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Toro 106-5317

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

36

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, Qty 11

0

37

Toro 51-3217

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

38

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

39

Toro 120-2235

FILTER-FUEL

$8.99

$

In Stock, Qty 20+

0

40

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

41

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0
