22321 G (TX 427) - Toro Dingo Compact Utility Loader (SN: 312000201 - 312999999) (2012) LOADER TOWER AND PULLEY ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

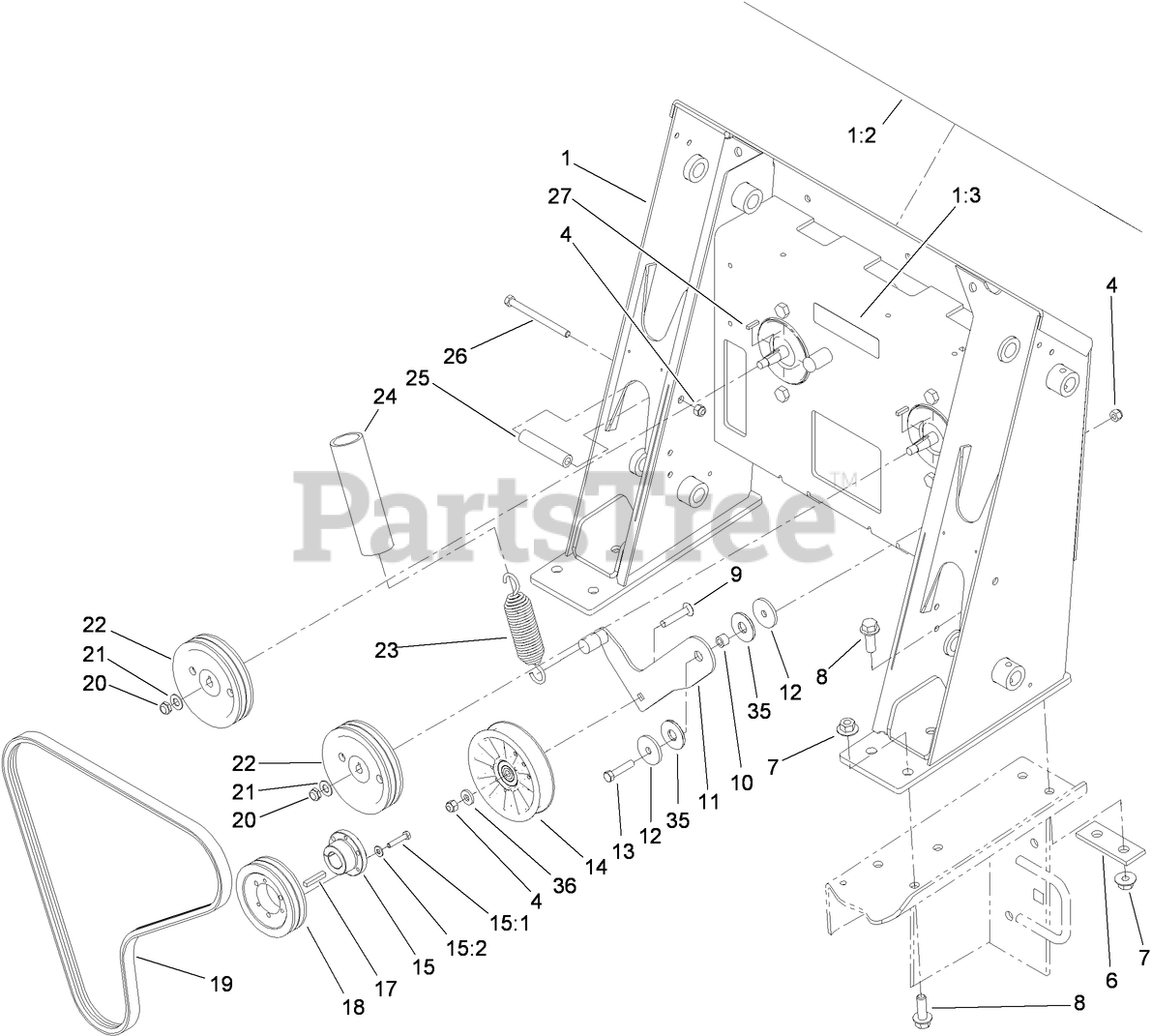

LOADER TOWER AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 117-9982

LOADER TOWER ASM

$2834.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-4045

DECAL-PANEL, CONTROL
(Superseded to 138-0799)

$44.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 100-6123-01

PLATE-STIFFENER

$77.99

$

Usually ships in 3-6 days

0

7

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

8

Toro 100-6116

SCREW-HHF

$8.99

$

In Stock, only 1 left!

0

9

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

10

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 10

0

11

Toro 115-1486

ARM-IDLER

$67.99

$

Usually ships in 3-6 days

0

12

Toro 115-1485

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 119-2358

PULLEY-IDLER

$67.99

$

Usually ships in 3-6 days

0

15

Toro 61-3340

BUSHING

$87.99

$

In Stock, only 1 left!

0

15:1

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

15:2

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

18

Toro 61-3330

PULLEY

$277.99

$

In Stock, only 1 left!

0

19

Toro 95-3611

V-BELT

$138.99

$

In Stock, only 3 left!

0

20

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

22

Toro 106-5710

PULLEY-3V

$113.99

$

In Stock, only 2 left!

0

23

Toro 105-0383

SPRING-EXTENSION

$95.99

$

In Stock, only 1 left!

0

24

Toro 112-2409

RETAINER-SPRING

$24.99

$

Usually ships in 3-6 days

0

25

Toro 100-1271

TUBE-SPACER

$24.99

$

Usually ships in 3-6 days

0

26

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 18

0

27

$12.99

$

In Stock, only 2 left!

0

35

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

36

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0
