22321 G (TX 427) - Toro Dingo Compact Utility Loader (SN: 310000001 - 310999999) (2010) HOOD ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

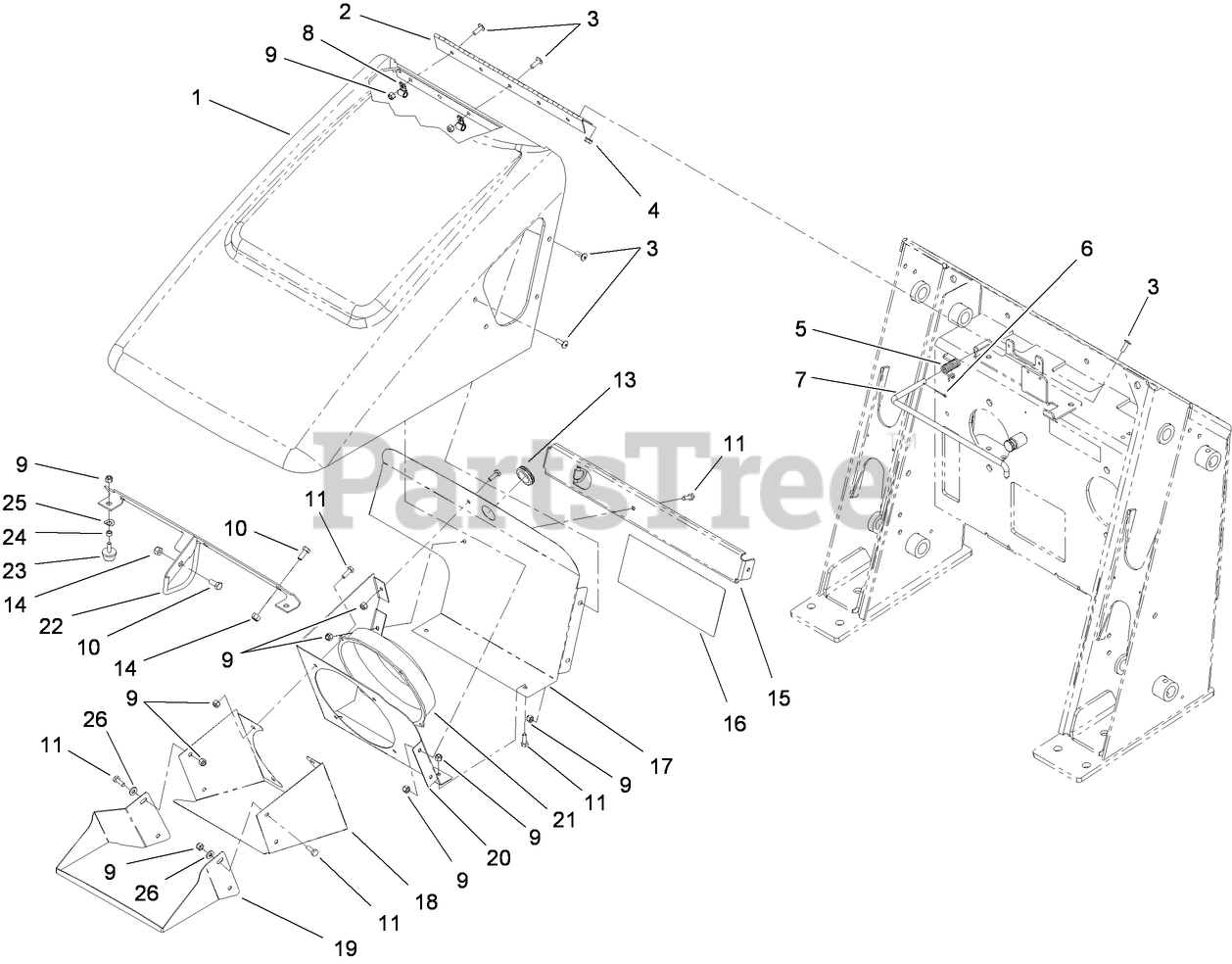

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1363

HOOD

$694.99

$

Usually ships in 3-6 days

0

2

Toro 100-1284

HINGE-HOOD

$80.99

$

In Stock, only 1 left!

0

3

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

4

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 106-2584

Spring-Torsion

$15.99

$

Usually ships in 3-6 days

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 106-2554

Rod-Support, Hood

$29.99

$

Usually ships in 3-6 days

0

8

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 240-5

GROMMET

$16.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 115-4849-03

BRACKET-SUPPORT, HOOD

$80.99

$

Usually ships in 3-6 days

0

16

Toro 115-4848

DECAL-SERVICE
(Superseded to 117-1806)

$17.99

$

Usually ships in 3-6 days

0

17

Toro 114-8715-03

BRACKET-FAN, BACK

$80.99

$

Usually ships in 3-6 days

0

18

Toro 114-8711-03

SHROUD-FAN

$102.99

$

Usually ships in 3-6 days

0

19

Toro 114-8712-03

SHROUD-FAN, FRONT

$71.99

$

Usually ships in 3-6 days

0

20

Toro 114-8714-03

BRACKET-FAN, BACK

$107.99

$

Usually ships in 3-6 days

0

21

Toro 104-2809

FAN

$510.99

$

Usually ships in 3-6 days

0

22

Toro 117-1725-03

LATCH-ROD

$93.99

$

Usually ships in 3-6 days

0

23

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

24

Toro 106-9308

SPACER

$5.99

$

Usually ships in 3-6 days

0

25

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
